C801 Connector End View (View 377)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Left Rear of Roof
Connects Tailgate Sub-harness to Rear Wire Harness

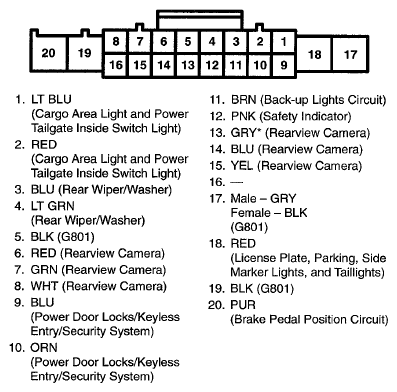

without Rearview Camera, without Power Tailgate:

Fig 1: C801 Connector Terminals - Without Rearview Camera And Power Tailgate (View 377)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

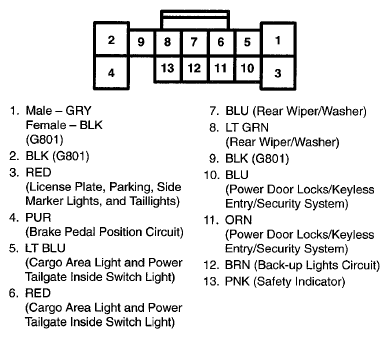

Rearview Camera without Power Tailgate:

Fig 2: C801 Connector Terminals - Rearview Camera Without Power Tailgate (View 377)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

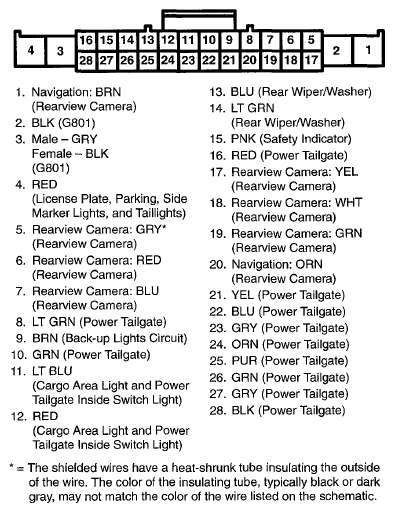

Power Tailgate:

Fig 3: C801 Connector Terminals - Power Tailgate (View 377)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
