C701 Connector End View (View 376)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Left Rear of Roof
Connects Roof Wire Harness to Rear Wire Harness
without RES:

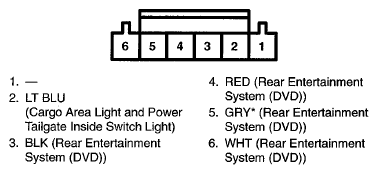

Fig 1: C701 Connector Terminals - Without RES (View 376)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RES Normal:

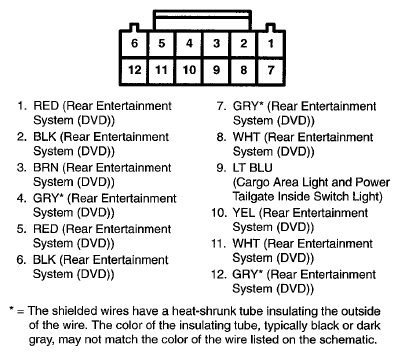

Fig 2: C701 Connector Terminals - RES Normal (View 376)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RES Wide:

Fig 3: C701 Connector Terminals - RES Wide (View 376)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
