C652 Connector End View (View 372)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Right Sliding Door Sill
Connects Right Side Wire Harness (Right Front Branch) to Right CESS Articulated Harness
without Power Sliding Doors:

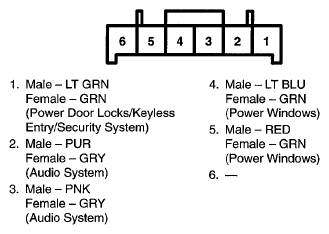

Fig 1: C652 Connector Terminals - Without Power Sliding Doors (View 372)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Power Sliding Doors:

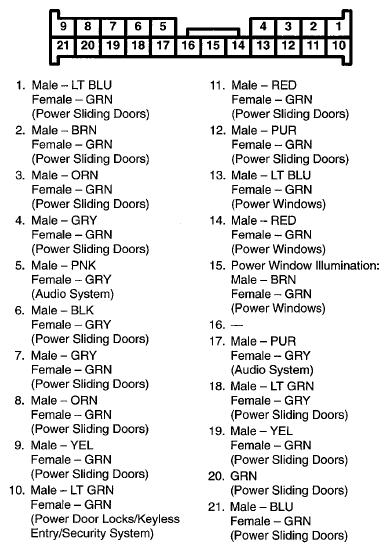

Fig 2: C652 Connector Terminals - Power Sliding Doors (View 372)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
