C607 Connector End View (View 370)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Behind Right Rear Side Trim Panel
Connects Left Side Wire Harness (Left Rear Branch) to Right Side Wire Harness (Right Rear Branch)
RES Wide; without RES Normal:

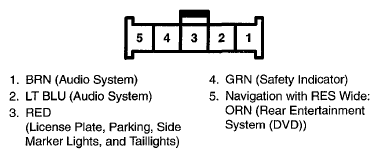

Fig 1: C607 Connector Terminals - Without RES Normal (View 370)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RES Normal:

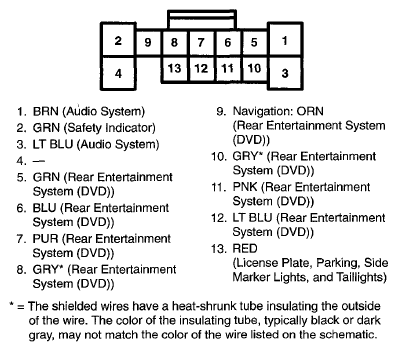

Fig 2: C607 Connector Terminals - RES Normal (View 370)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
