C505 Connector End View (View 366)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Right A-pillar
Connects Audio Wire Harness to Roof Wire Harness
without RES:

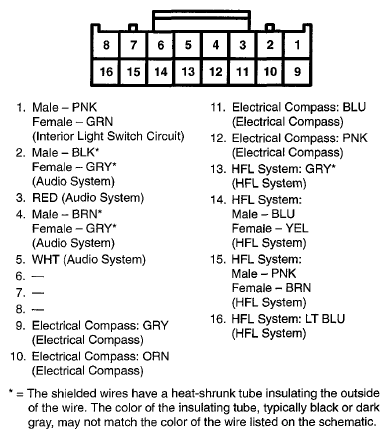

Fig 1: C505 Connector Terminals - Without RES (View 366)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RES:

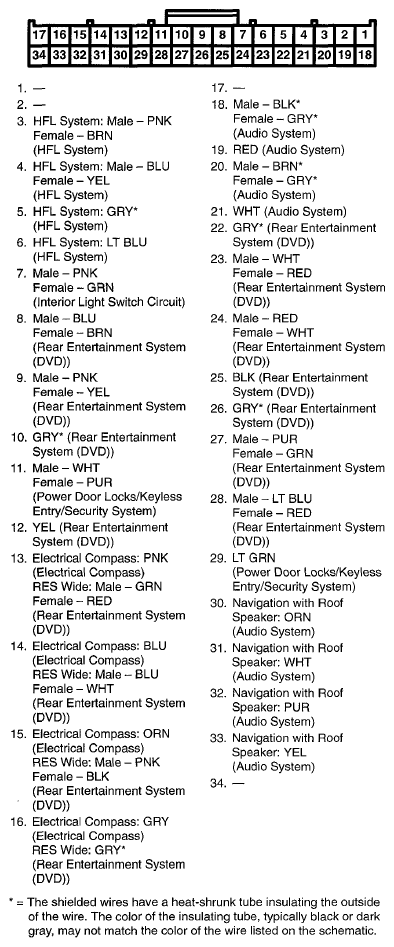

Fig 2: C505 Connector Terminals - RES (View 366)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
