Audio Unit Connector End View (Without Navigation) (View 382)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Behind Audio Unit
Connector A
- GRY
- On Audio Wire Harness

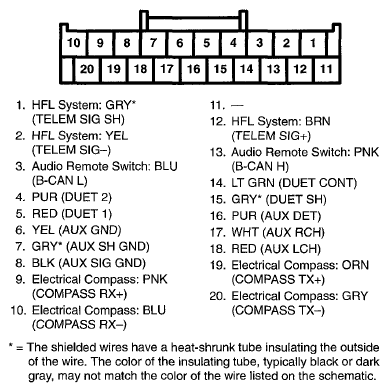

Fig 1: Audio Unit (Without Navigation) Connector Terminals - Connector A (View 382)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- GRY
- On Audio Wire Harness

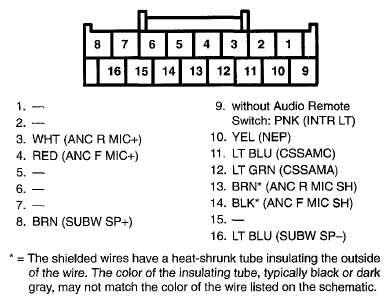

Fig 2: Audio Unit (Without Navigation) Connector Terminals - Connector B (View 382)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- GRY
- On Audio Wire Harness
* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

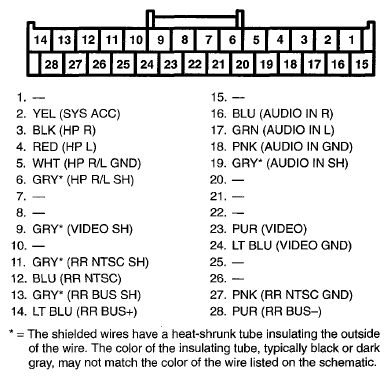

Fig 3: Audio Unit (Without Navigation) Connector Terminals - Connector C (View 382)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D (USB Adapter)
- WHT
- On Audio Wire Harness

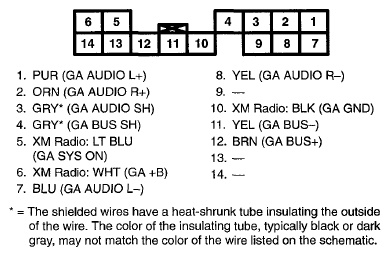

Fig 4: Audio Unit (Without Navigation) Connector Terminals - Connector D USB Adapter (View 382)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector E (RES)
- GRY
- On Audio Wire Harness

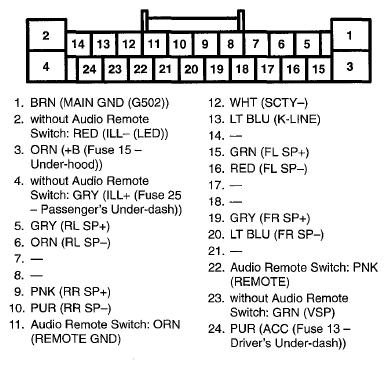

Fig 5: Audio Unit (Without Navigation) Connector Terminals - Connector E (View 382)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector F
- GRY
- On AM/FM Antenna Sub-lead
Fig 6: Audio Unit (Without Navigation) Connector Terminals - Connector F (View 382)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
