Audio Remote Switch Connector End View (Audio Remote Switch) (View 296)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
In Steering Wheel
On Cable Reel Sub-harness

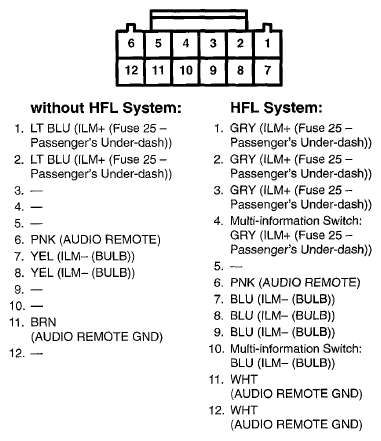

Fig 1: Audio Remote Switch (Audio Remote Switch) Connector Terminals (View 296)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
