Door Key Cylinder Switch Test: Test

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Honda Odyssey, 2024 Honda Odyssey, 2023 Honda Odyssey, 2022 Honda Odyssey, and 2021 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Driver's Door Panel - Remove
  2. Driver's Door Key Cylinder Switch - Test
    GHH447534GHH447535Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH447534GHH447535Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

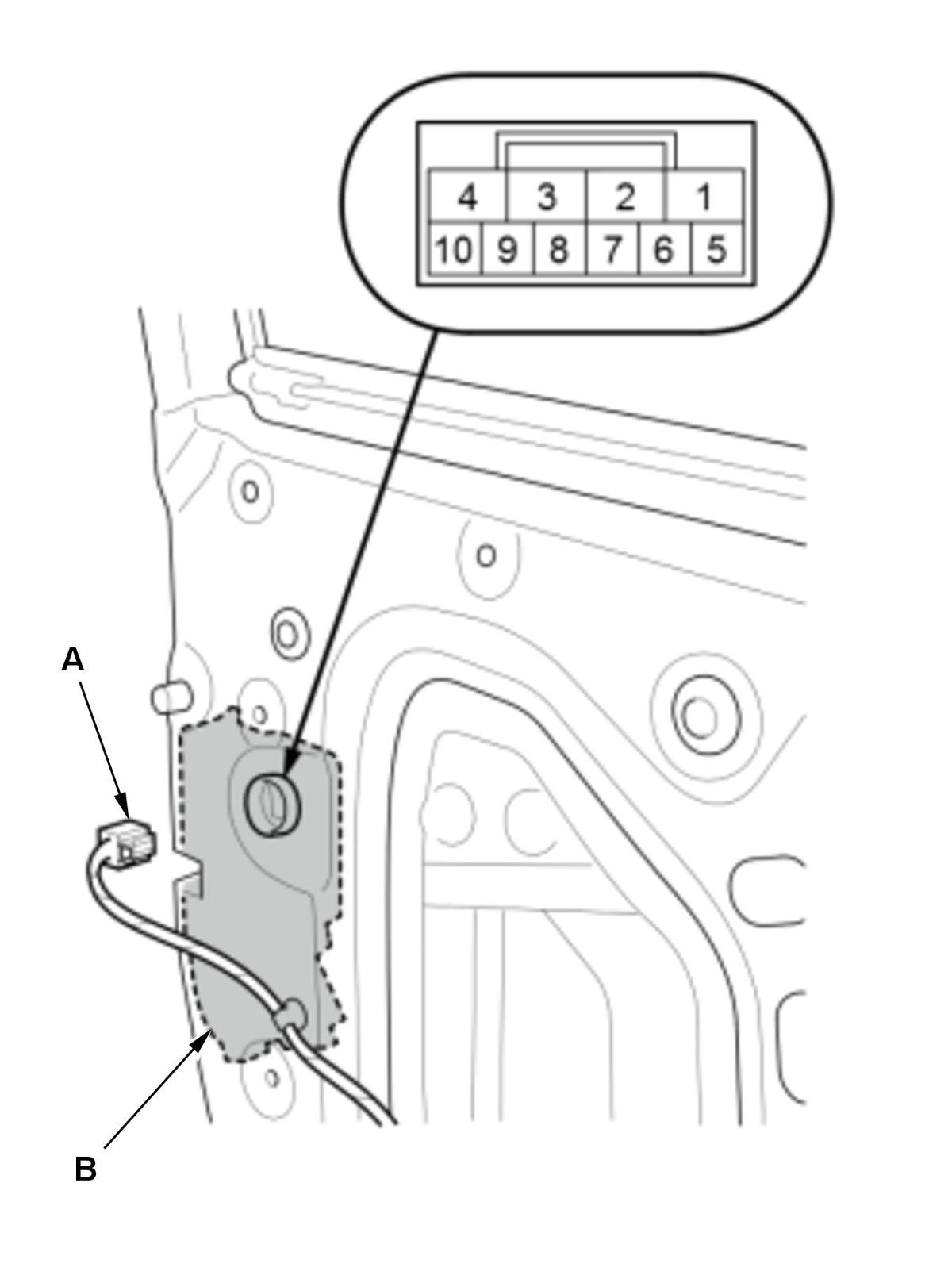

    		 1. Disconnect the connector (A).

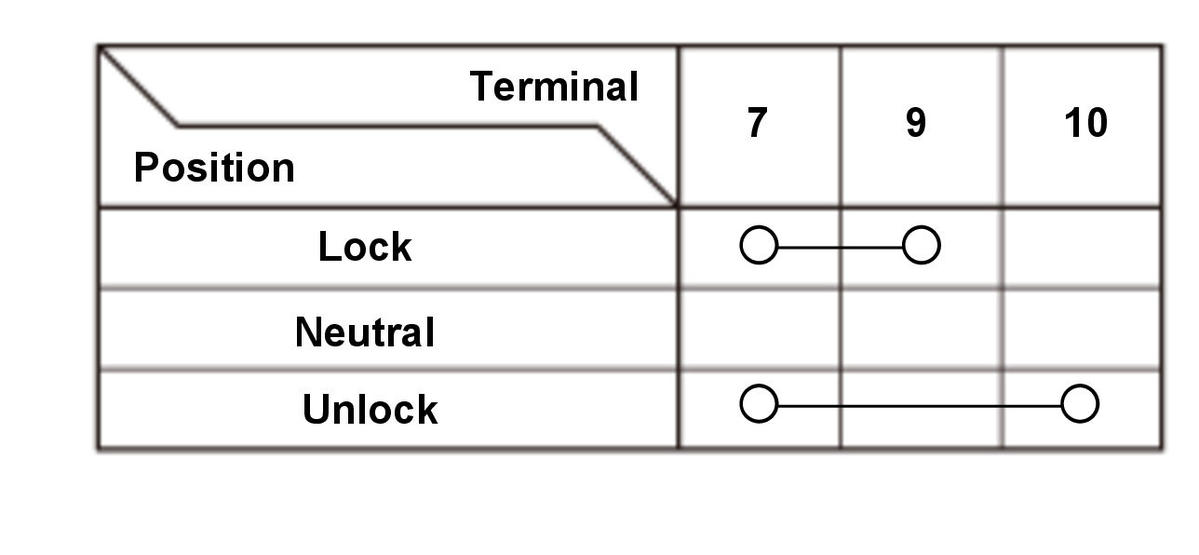

    2. Check for continuity between the terminals in each switch position according to the table in illustration.

    3. If the continuity is not as specified, the driver's door key cylinder switch is faulty; replace the driver's door latch (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
