Starting System: Factory

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

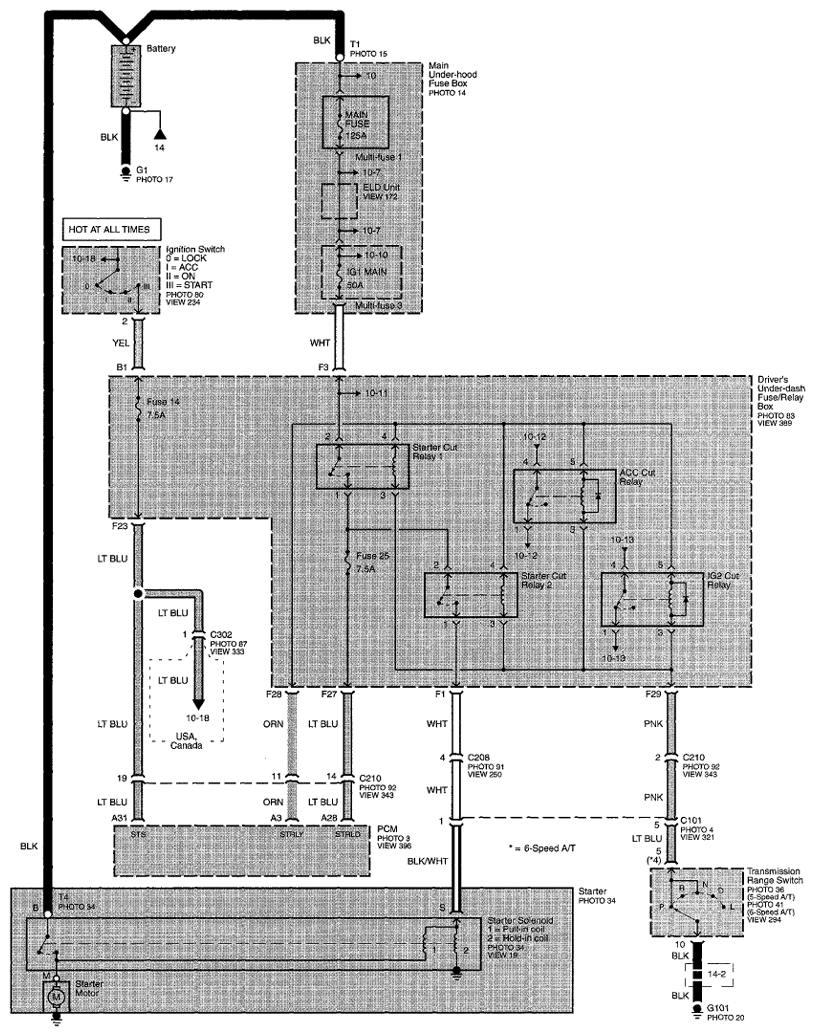

Fig 1: Starting System Circuit Diagram - Factory (Page 21)
G07761447
