WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

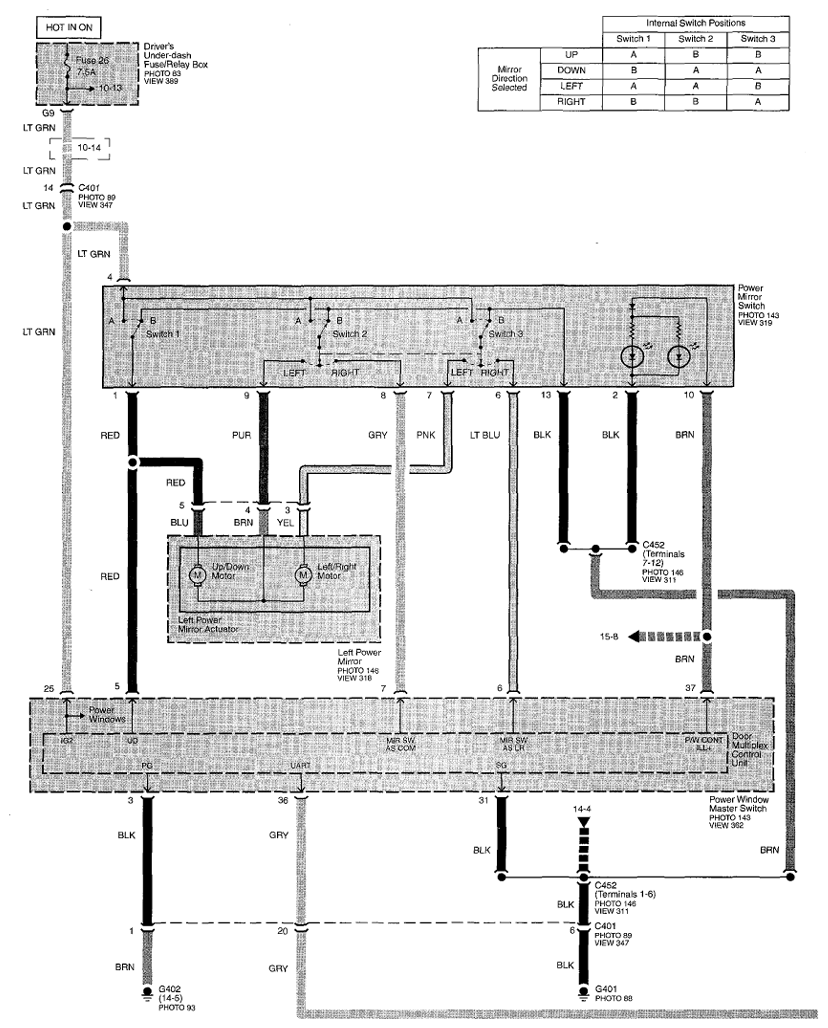

Fig 1: Power Mirrors Circuit Diagram - Without DPMS (Page 141)

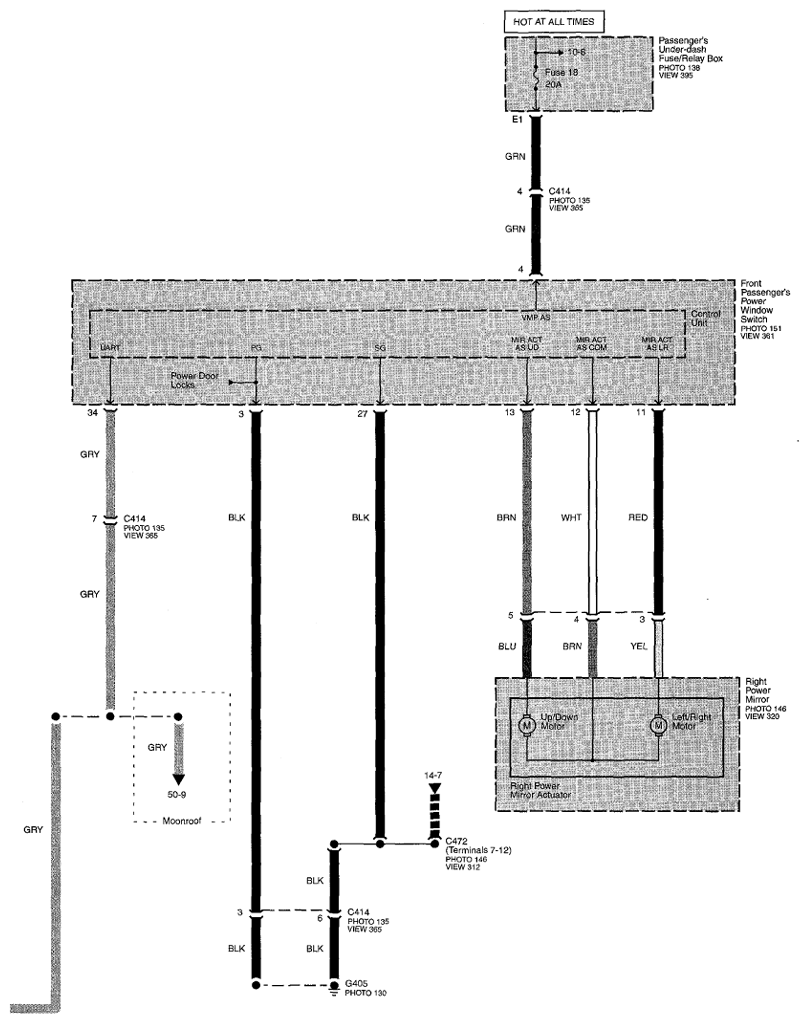

Fig 2: Power Mirrors Circuit Diagram - Without DPMS (Page 141-1)
