Power Distribution

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

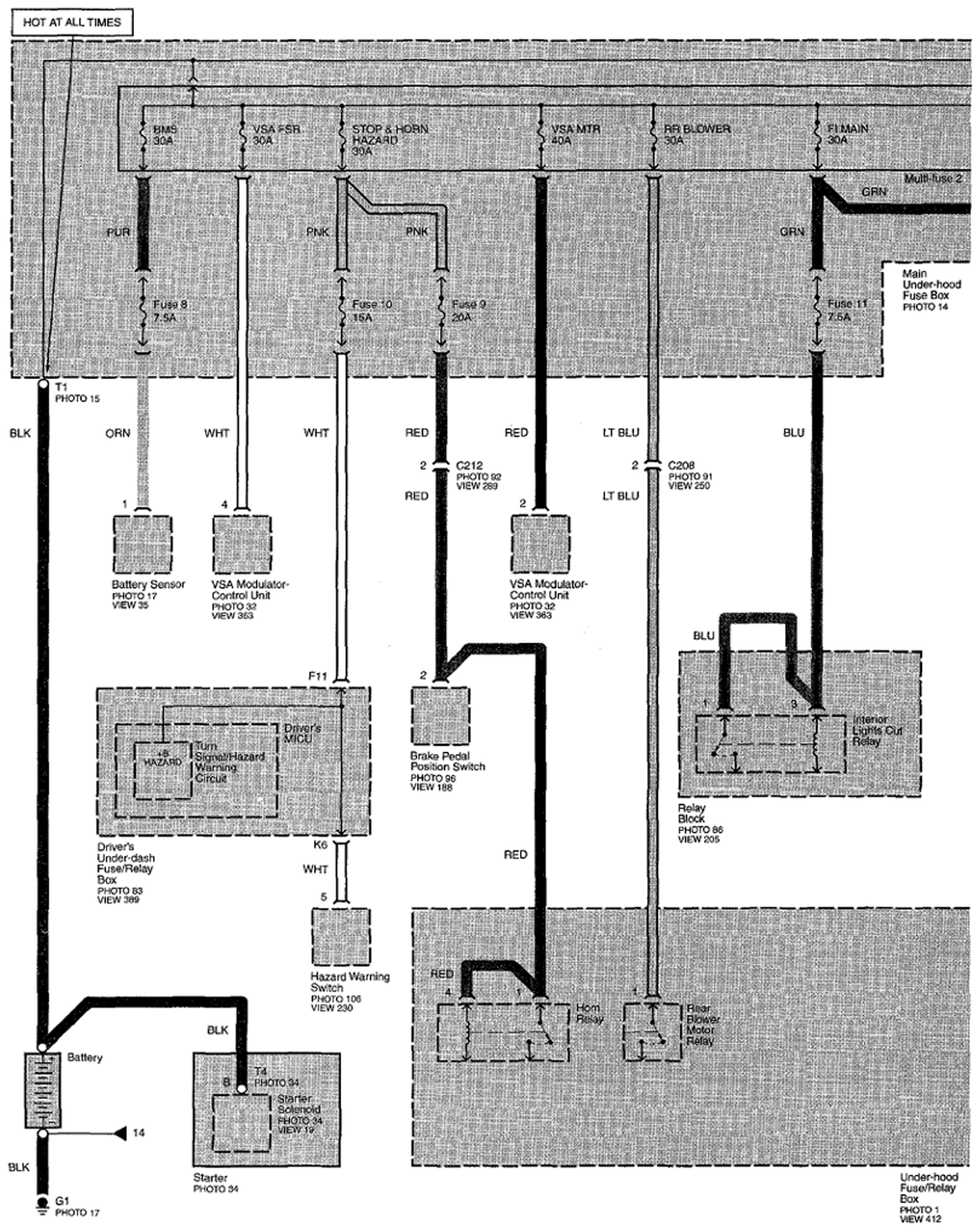

Fig 1: Power Distribution Circuit Diagram (Page 10)

G07761390

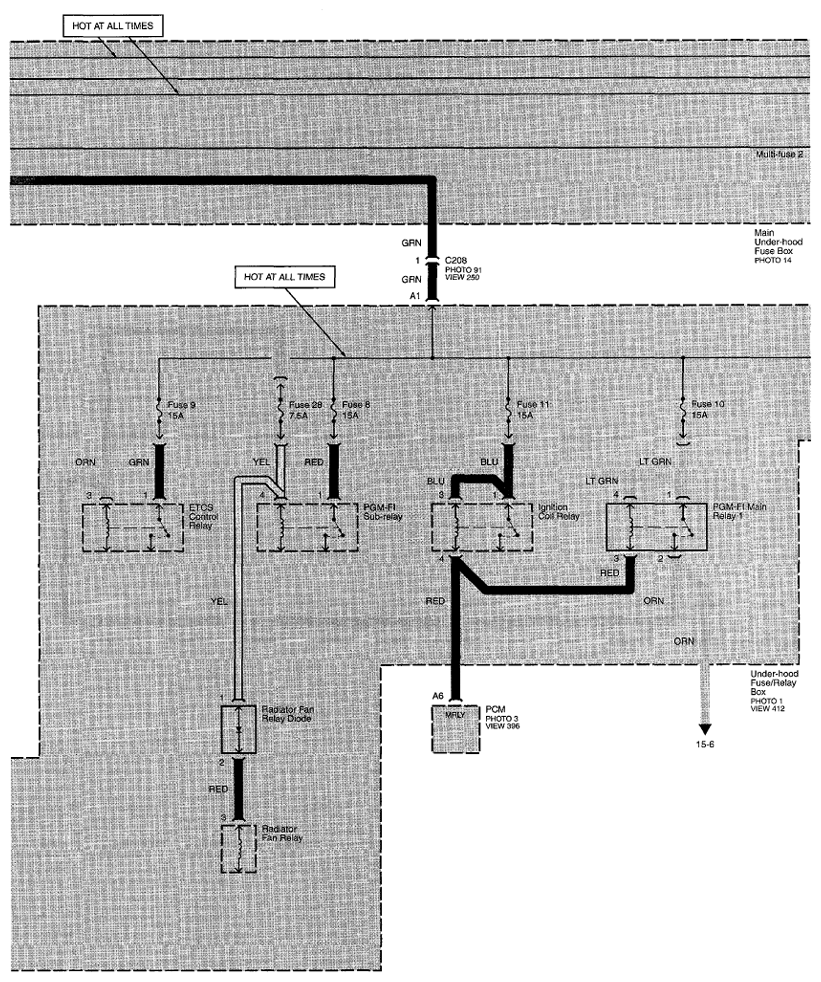

Fig 2: Power Distribution Circuit Diagram (Page 10-1)

G07761391

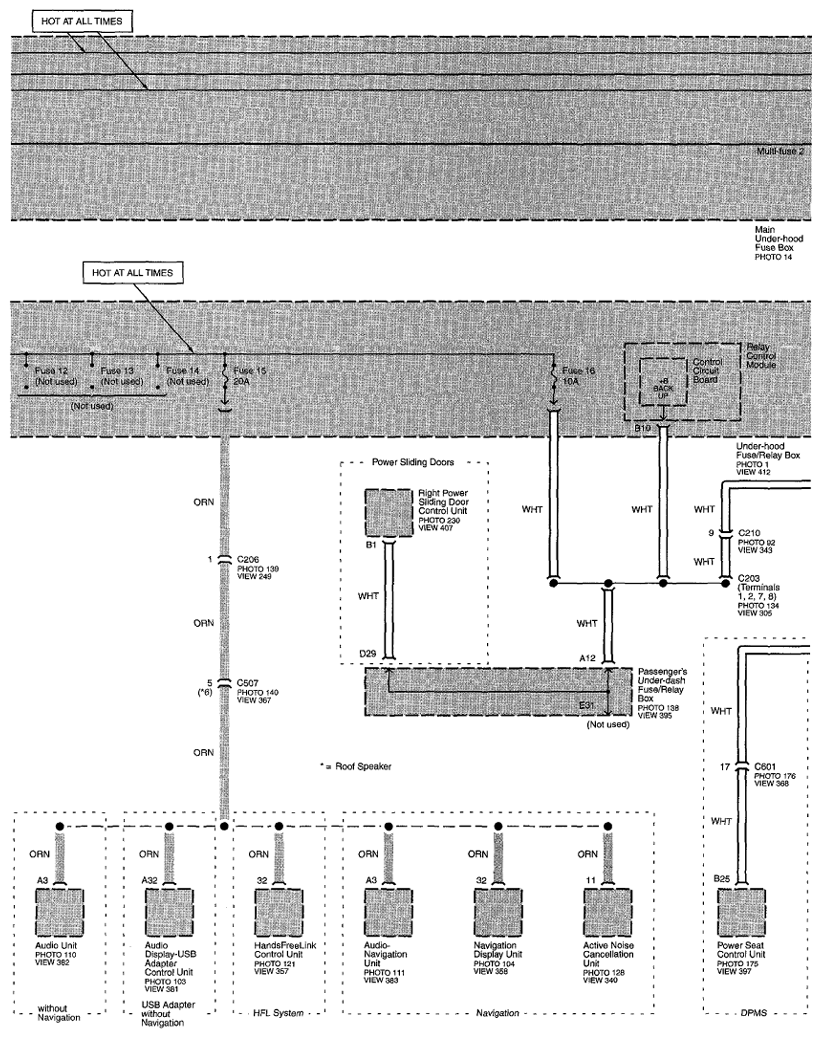

Fig 3: Power Distribution Circuit Diagram (Page 10-2)

G07761392

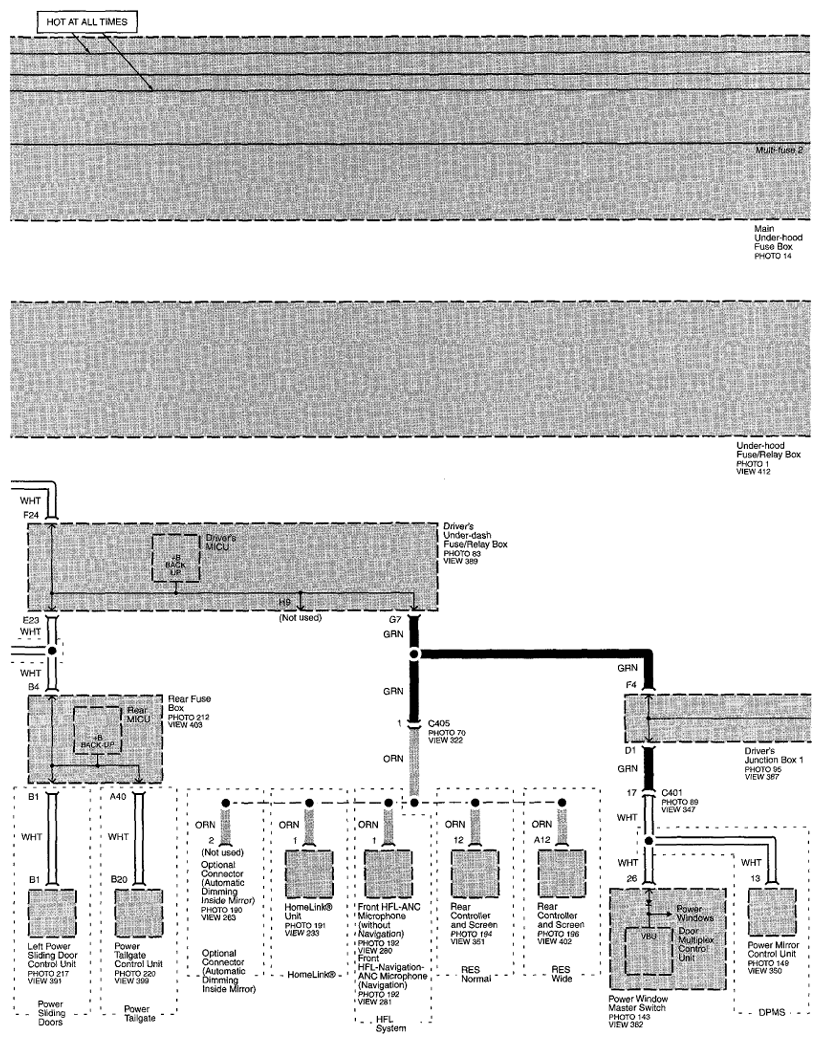

Fig 4: Power Distribution Circuit Diagram (Page 10-3)

G07761393

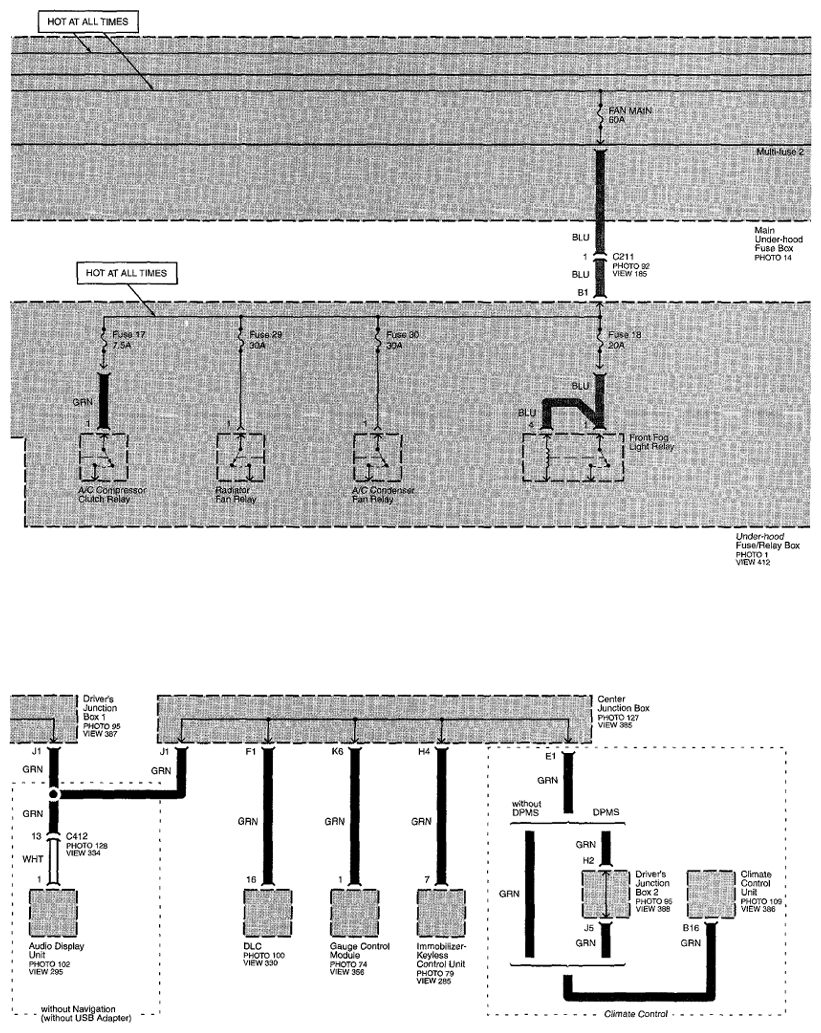

Fig 5: Power Distribution Circuit Diagram (Page 10-4)

G07761394

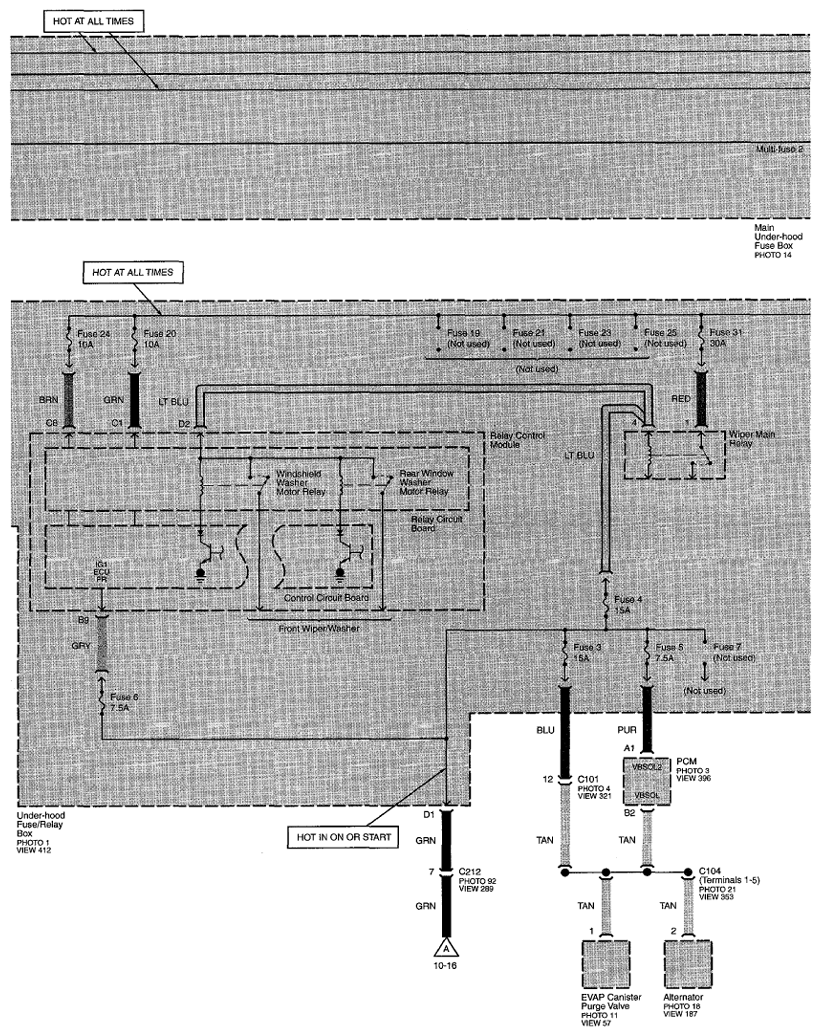

Fig 6: Power Distribution Circuit Diagram (Page 10-5)

G07761395

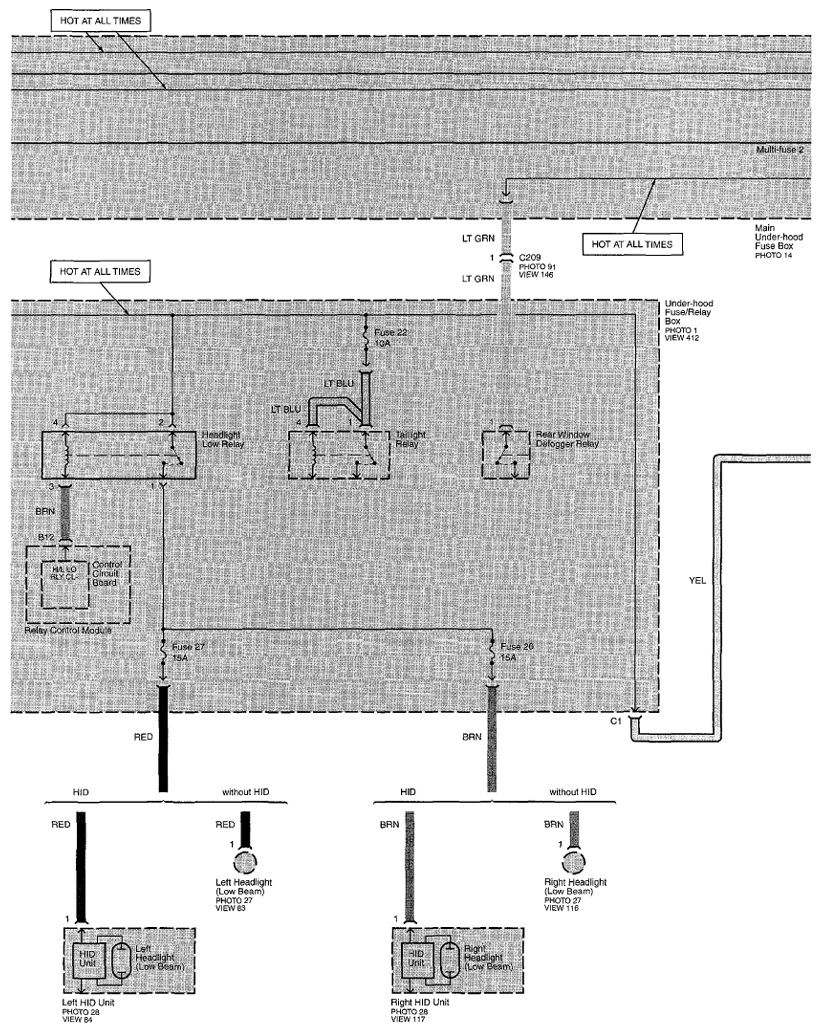

Fig 7: Power Distribution Circuit Diagram (Page 10-6)

G07761396

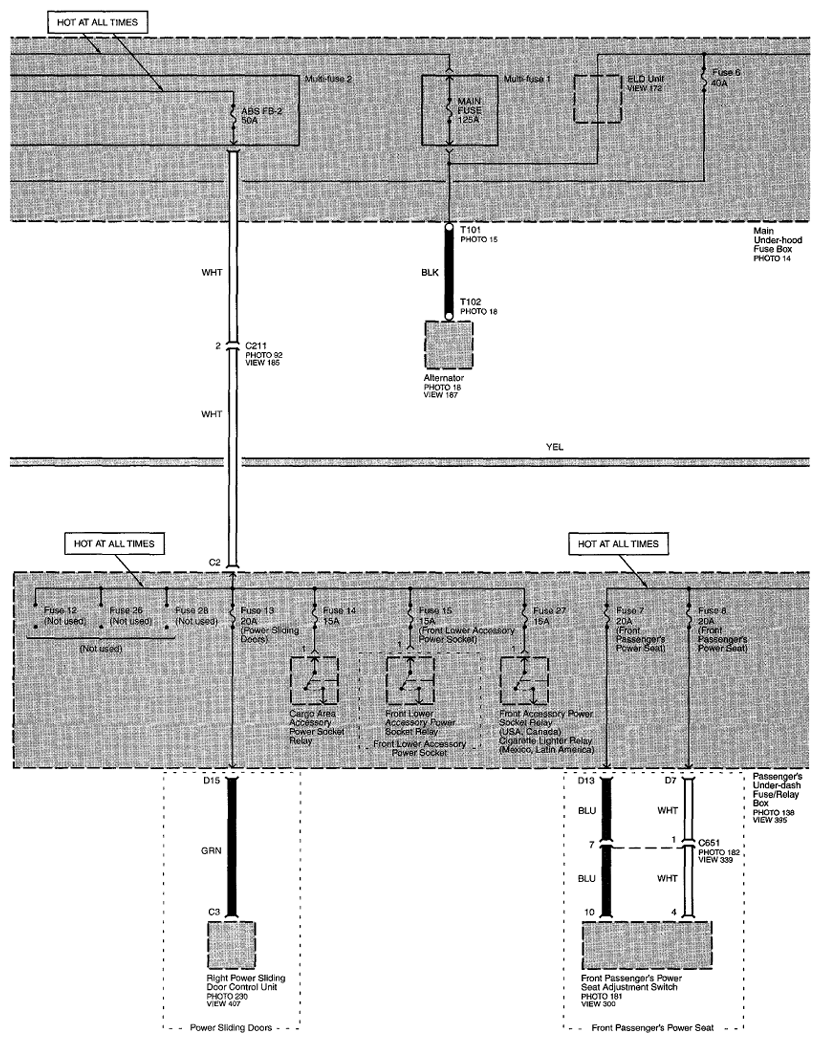

Fig 8: Power Distribution Circuit Diagram (Page 10-7)

G07761397

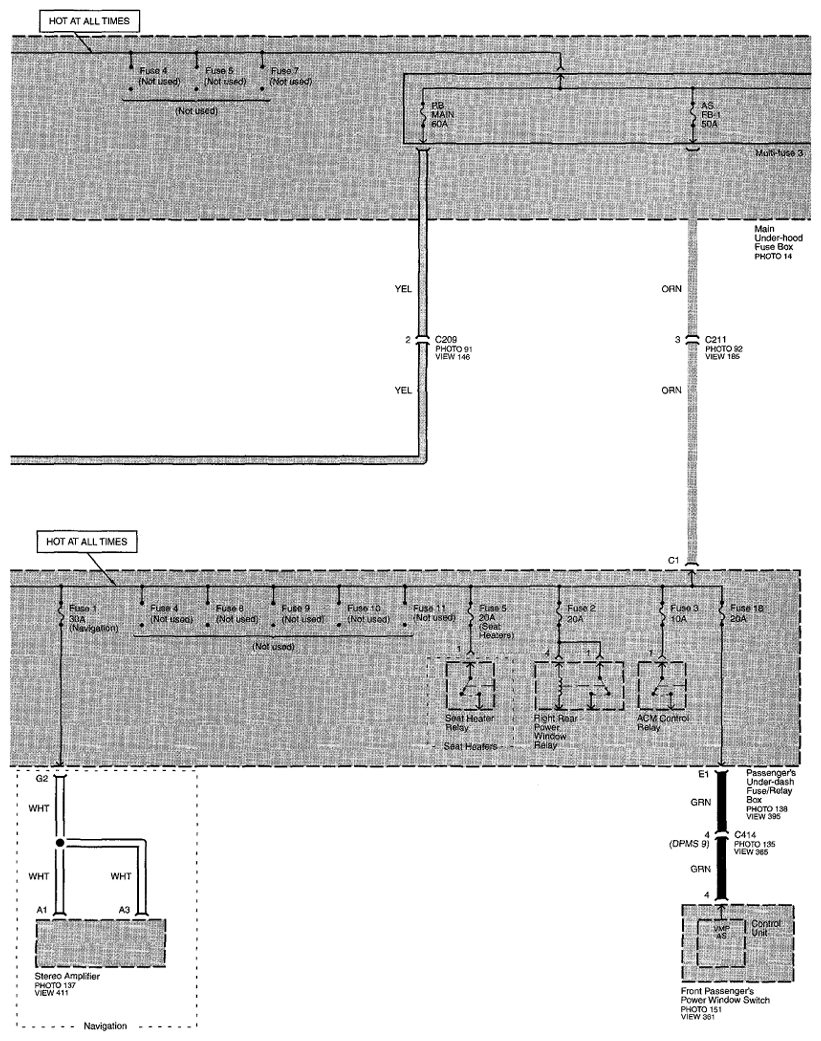

Fig 9: Power Distribution Circuit Diagram (Page 10-8)

G07761398

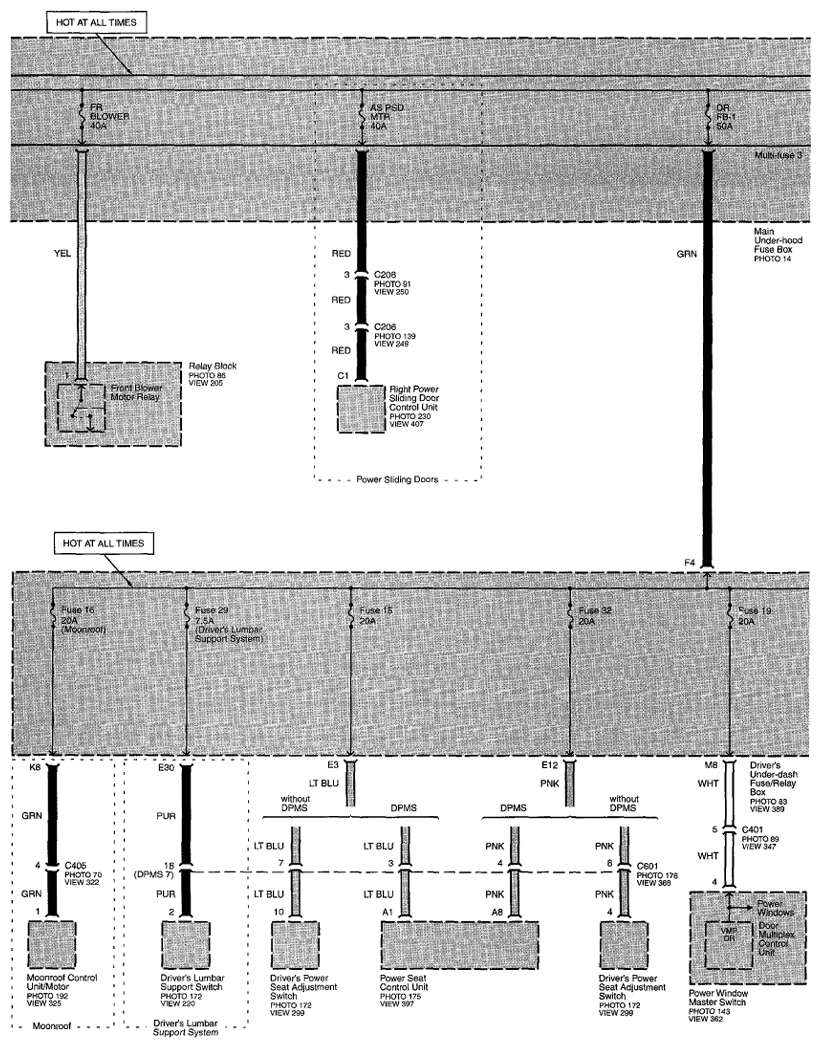

Fig 10: Power Distribution Circuit Diagram (Page 10-9)

G07761399

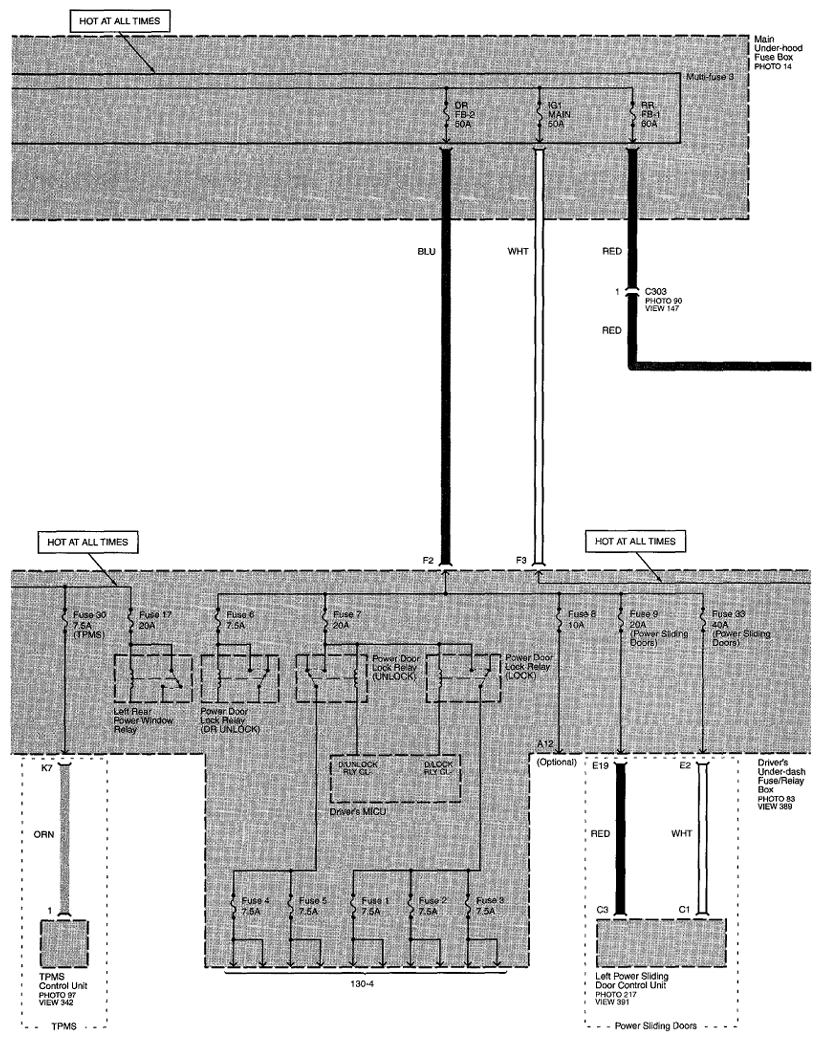

Fig 11: Power Distribution Circuit Diagram (Page 10-10)

G07761400

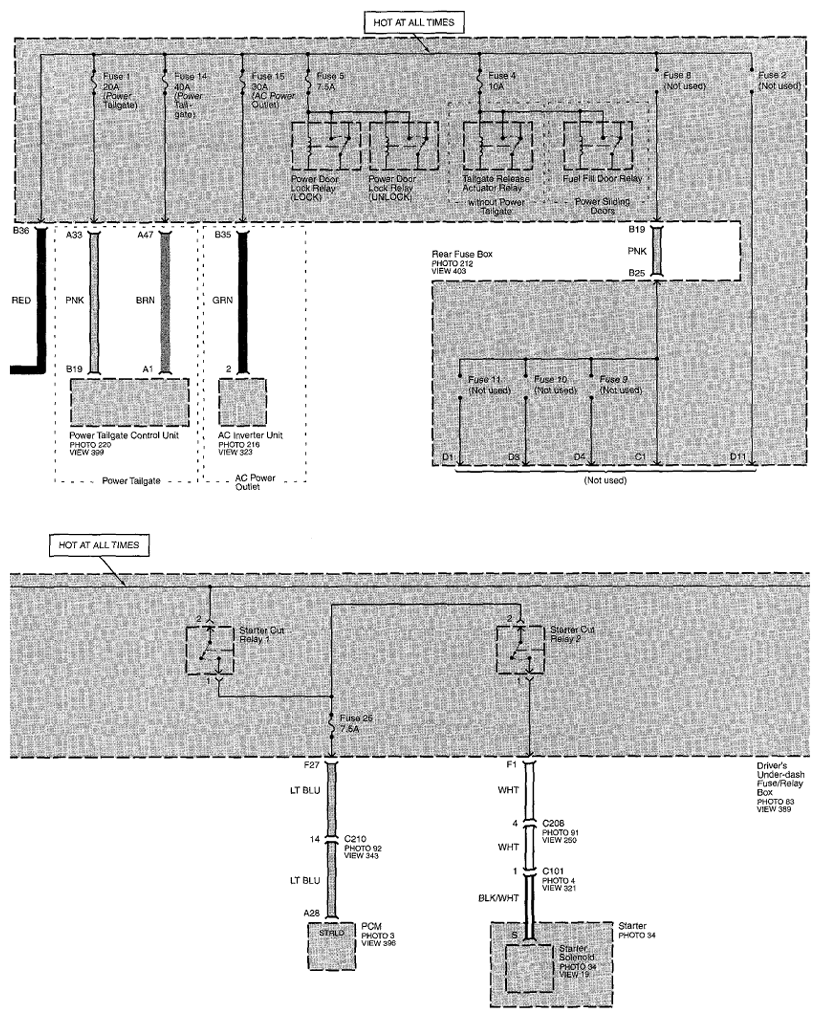

Fig 12: Power Distribution Circuit Diagram (Page 10-11)

G07761401

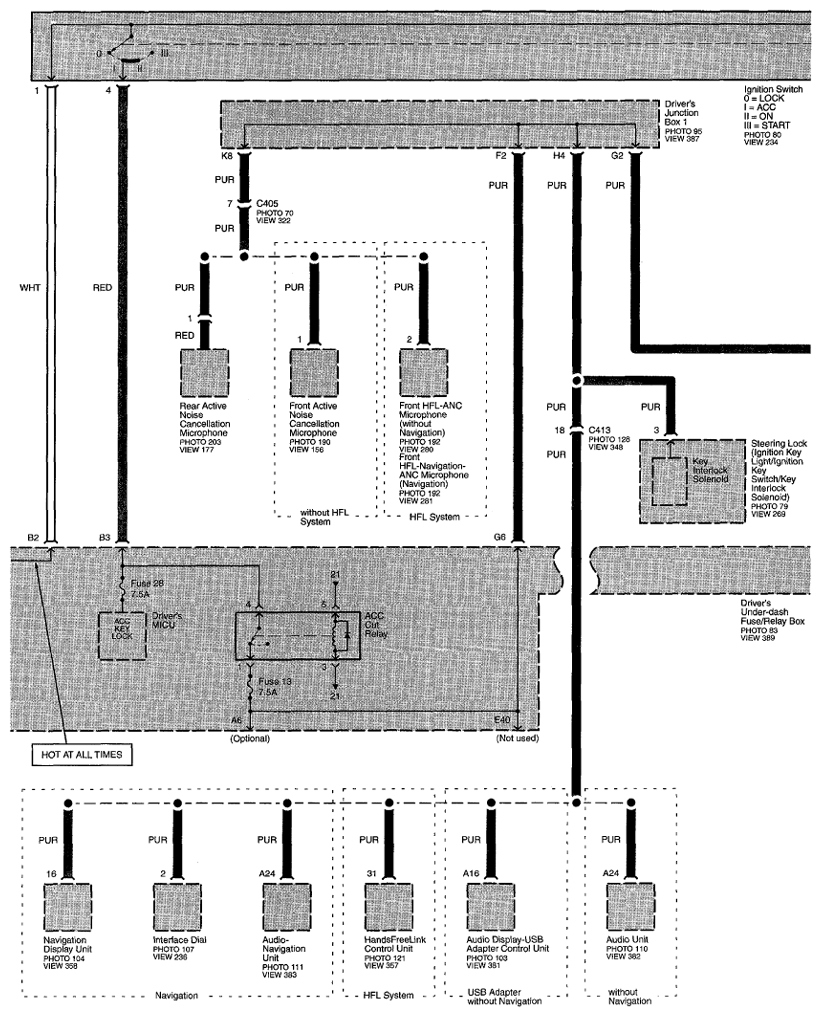

Fig 13: Power Distribution Circuit Diagram (Page 10-12)

G07761402

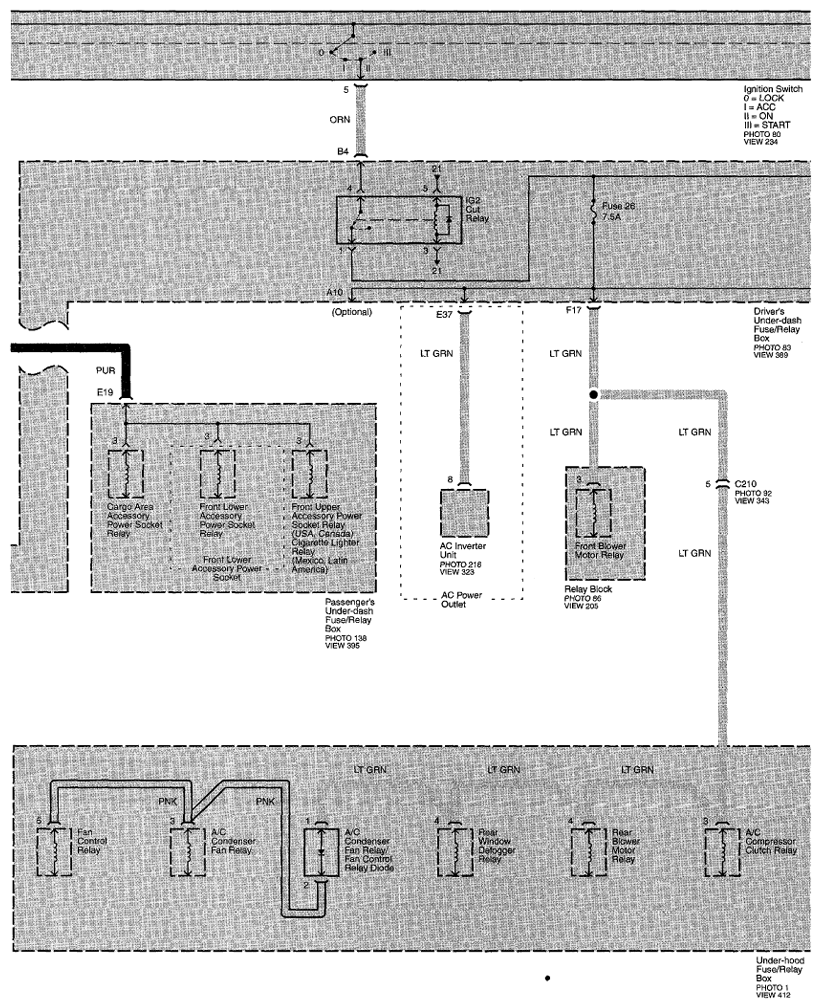

Fig 14: Power Distribution Circuit Diagram (Page 10-13)

G07761403

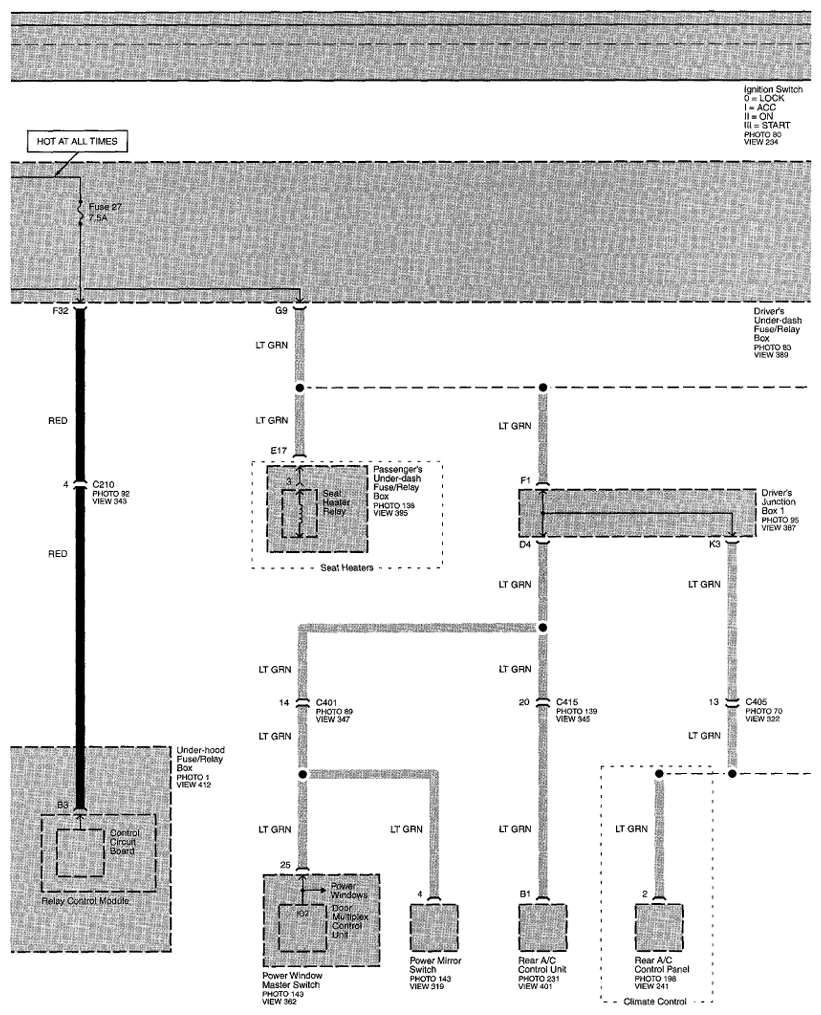

Fig 15: Power Distribution Circuit Diagram (Page 10-14)

G07761404

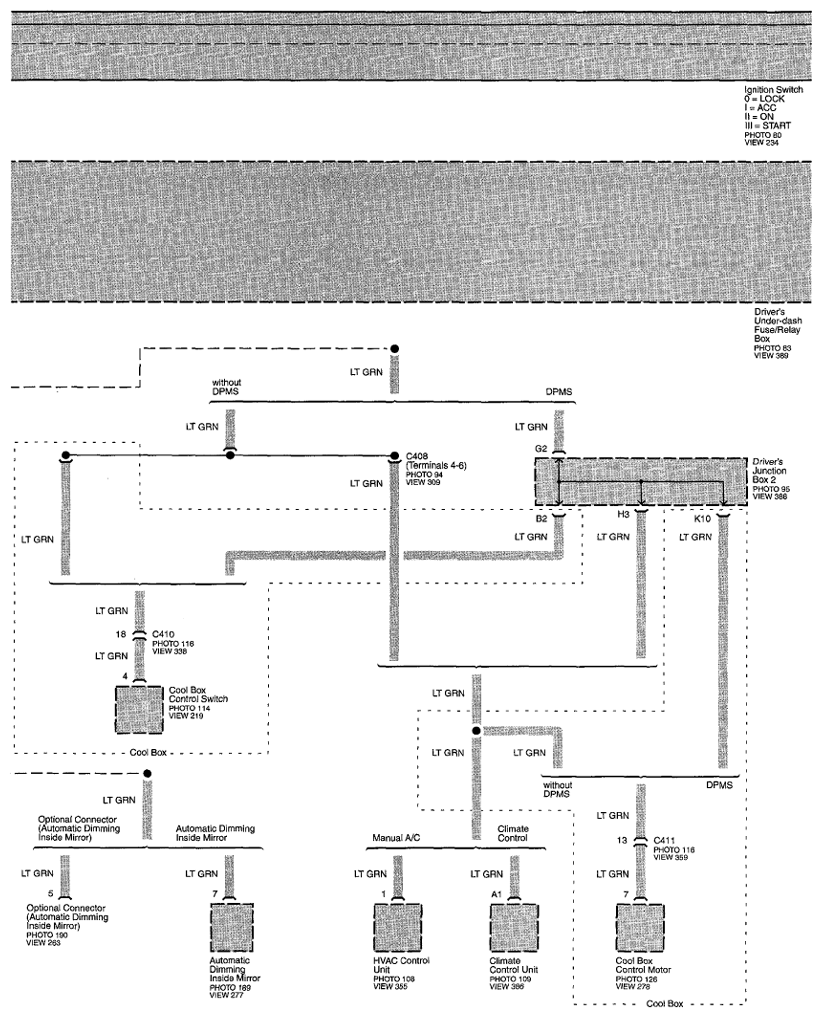

Fig 16: Power Distribution Circuit Diagram (Page 10-15)

G07761405

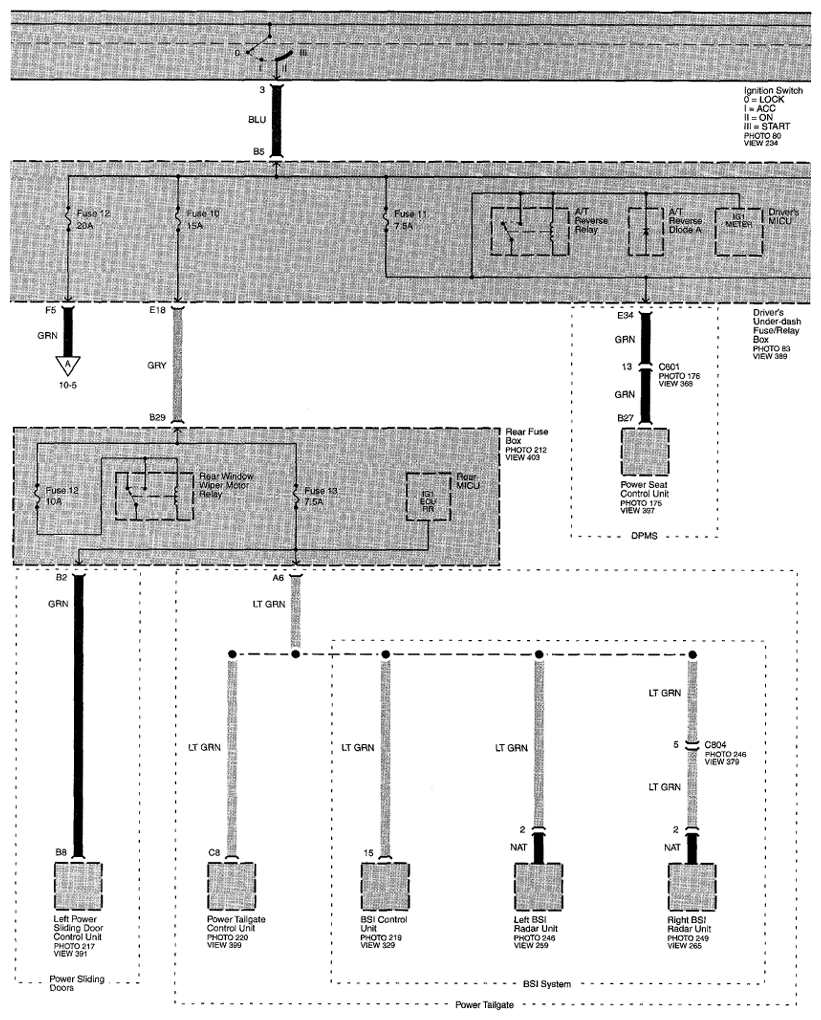

Fig 17: Power Distribution Circuit Diagram (Page 10-16)

G07761406

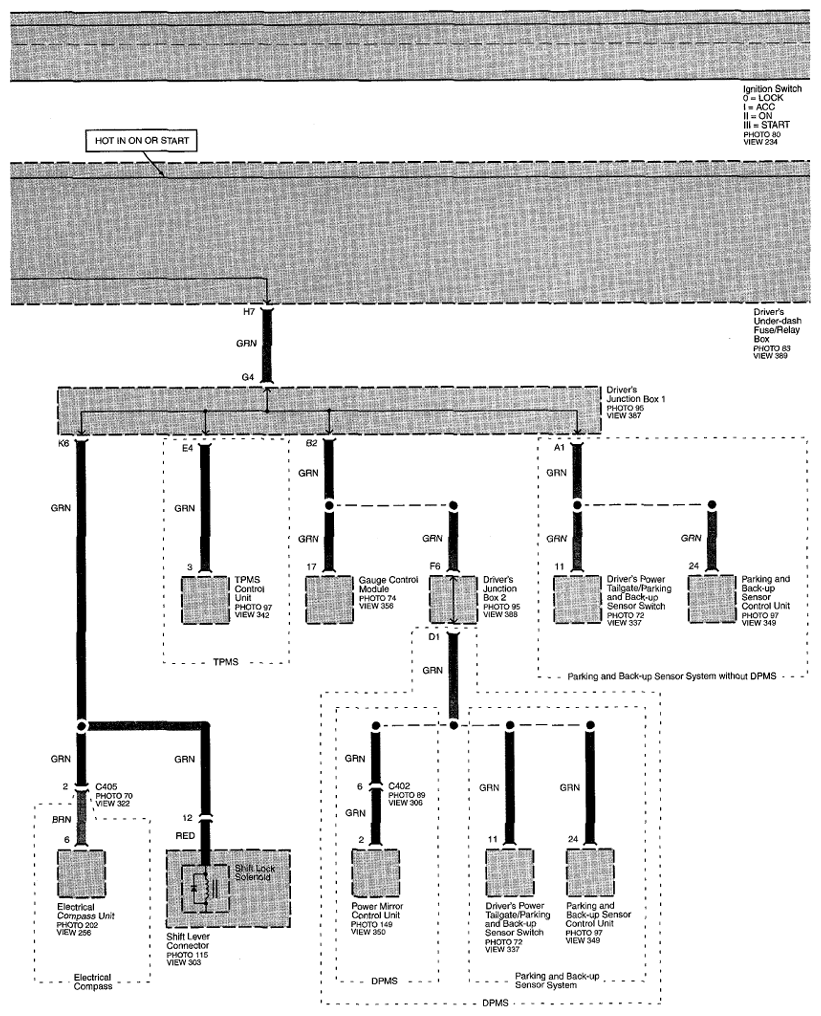

Fig 18: Power Distribution Circuit Diagram (Page 10-17)

G07761407

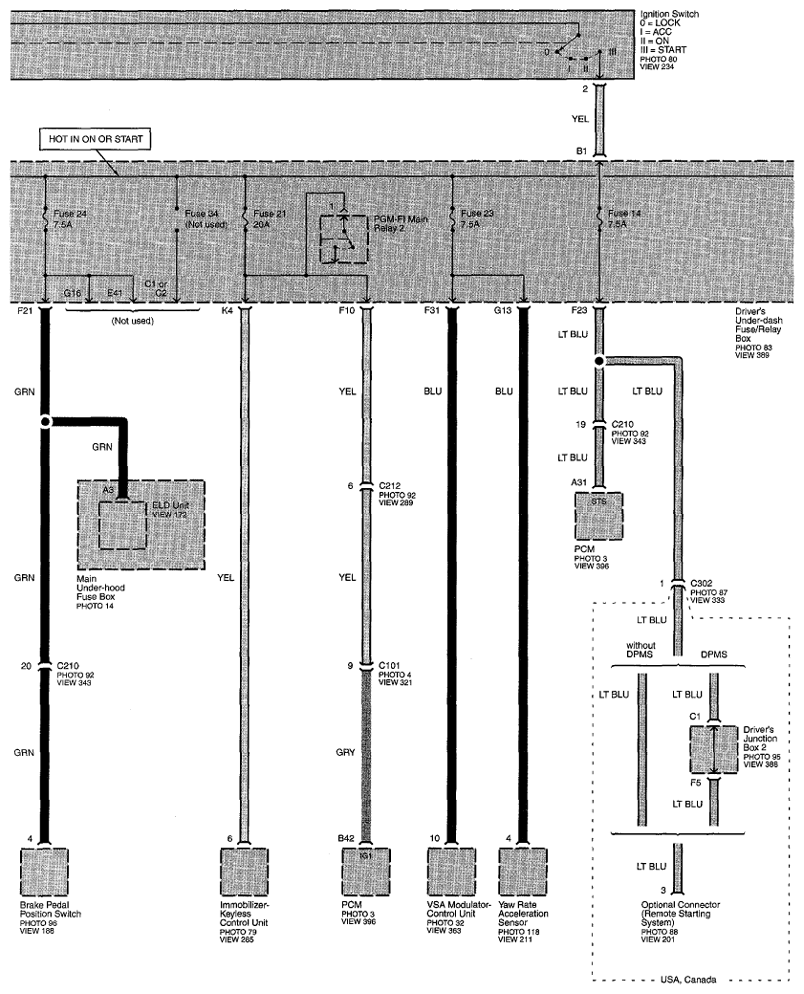

Fig 19: Power Distribution Circuit Diagram (Page 10-18)

G07761408

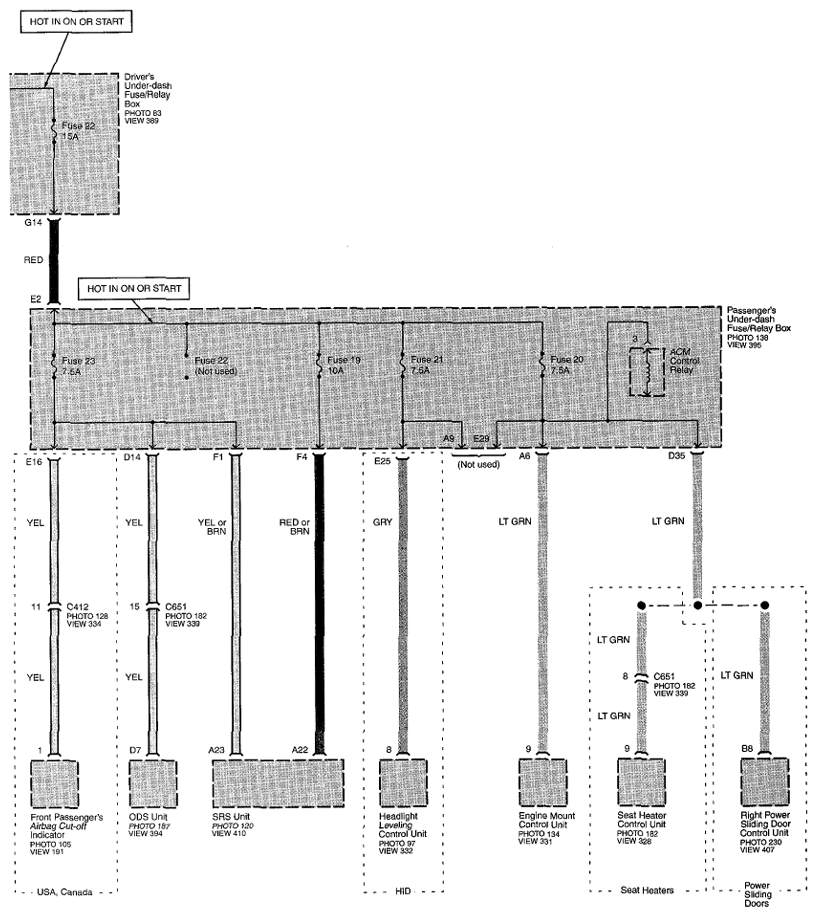

Fig 20: Power Distribution Circuit Diagram (Page 10-19)

G07761409
