Parking and Back-up Sensor System: Notes

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

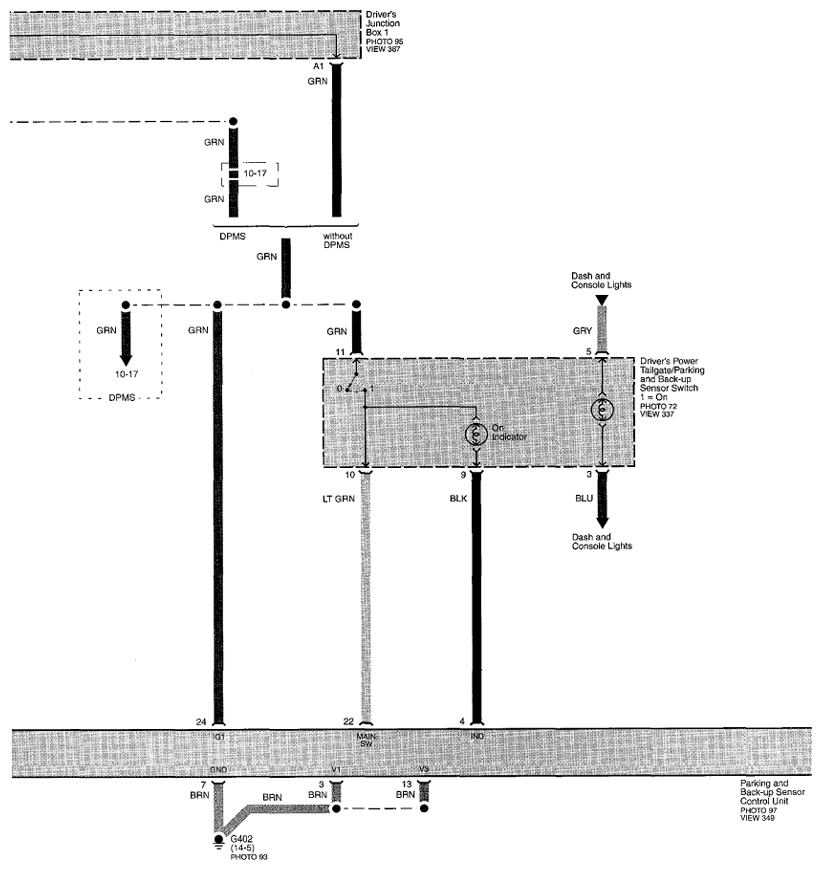

Fig 1: Parking And Back-up Sensor System Circuit Diagram (Page 162)

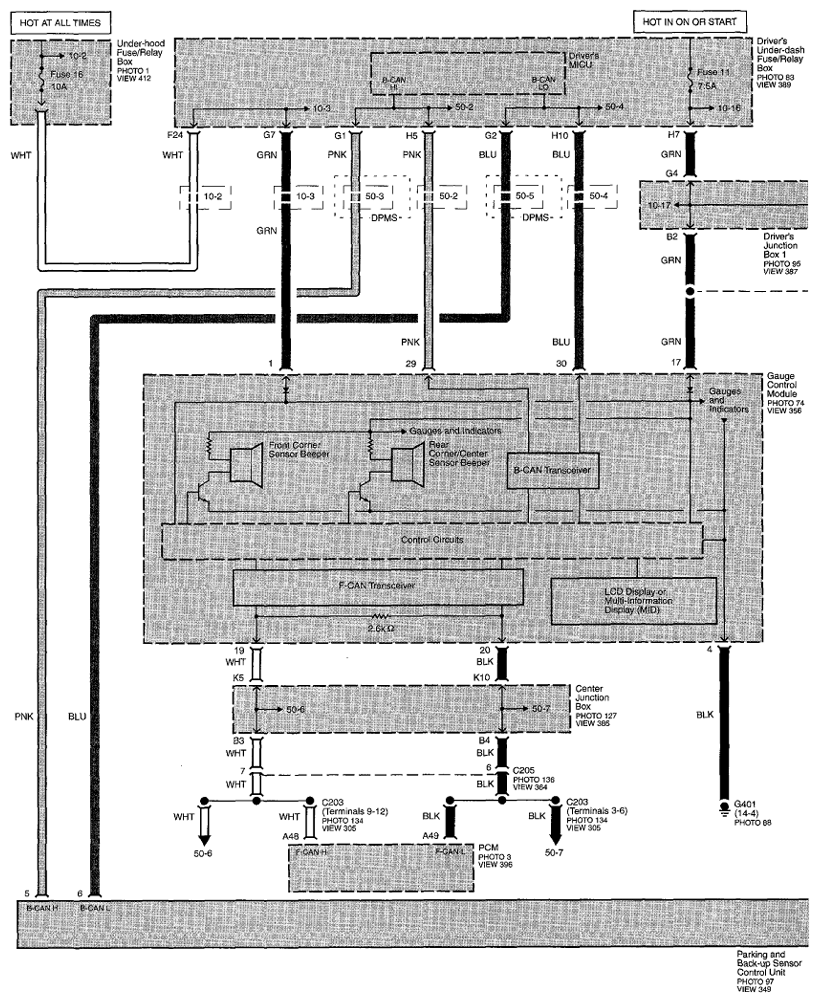

Fig 2: Parking And Back-up Sensor System Circuit Diagram (Page 162-1)

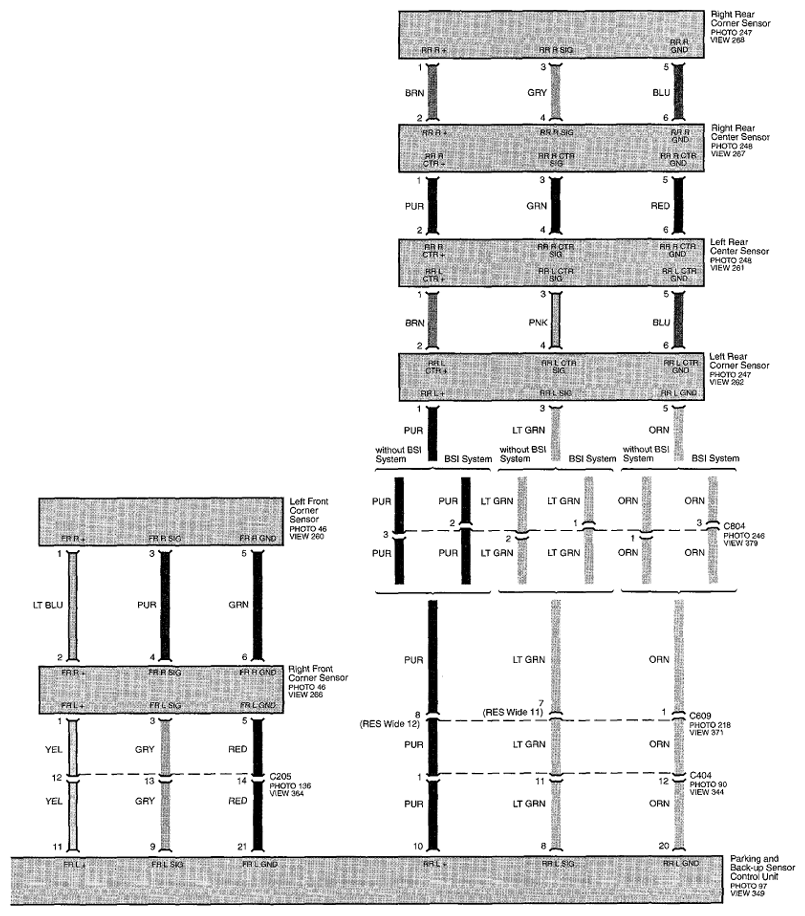

Fig 3: Parking And Back-up Sensor System Circuit Diagram (Page 162-2)
