WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

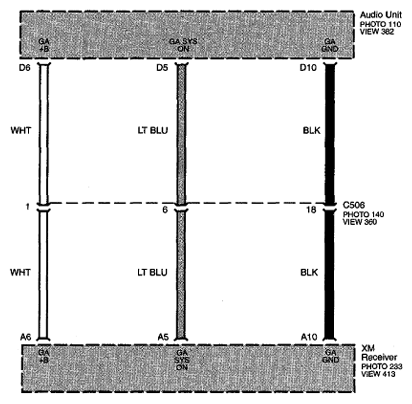

Fig 1: GA-NET (XM Radio Without Navigation) Circuit Diagram (Page 50-10)
Fig 1: GA-NET (XM Radio Without Navigation) Circuit Diagram (Page 50-11)
