Keyless/Power Door Locks/Security System: Notes

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

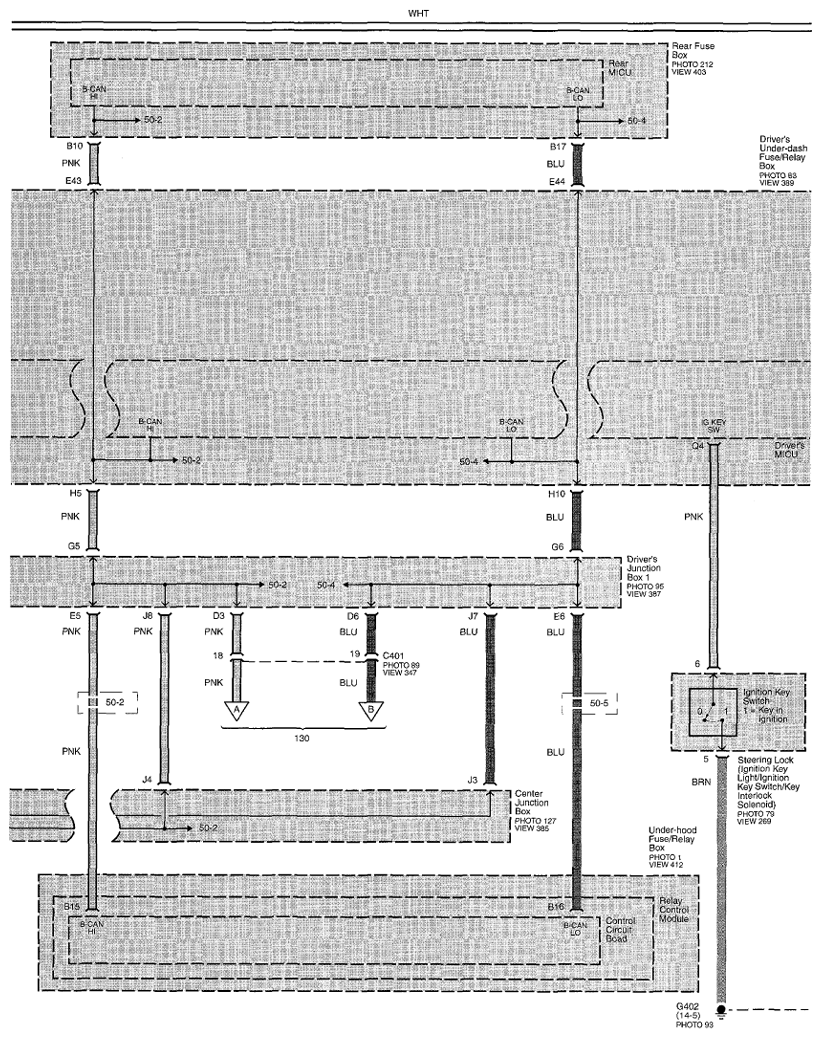

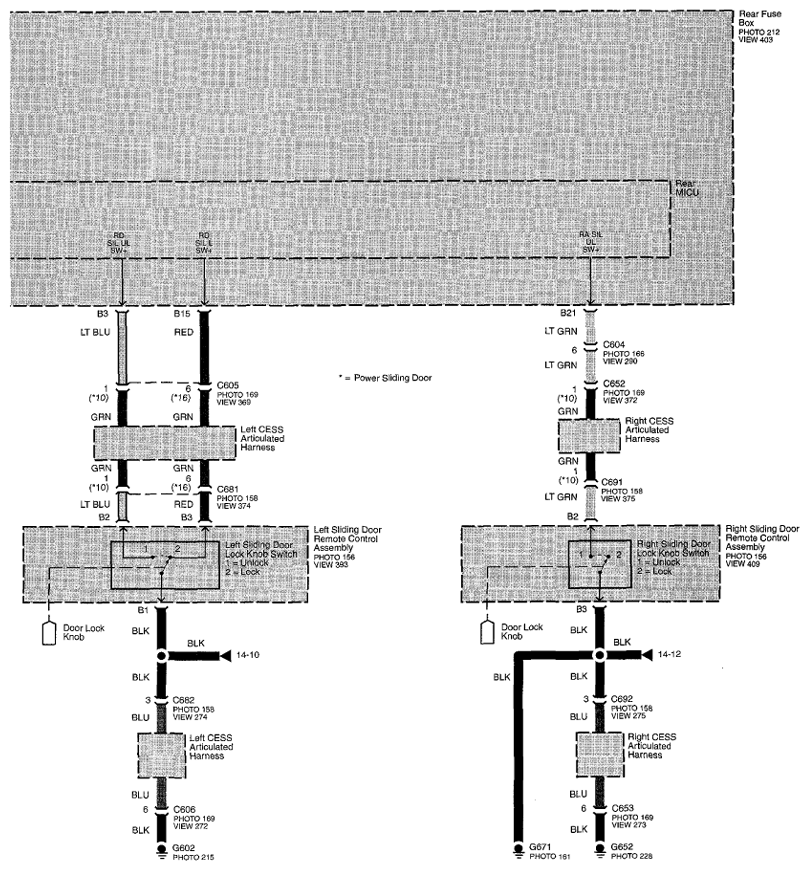

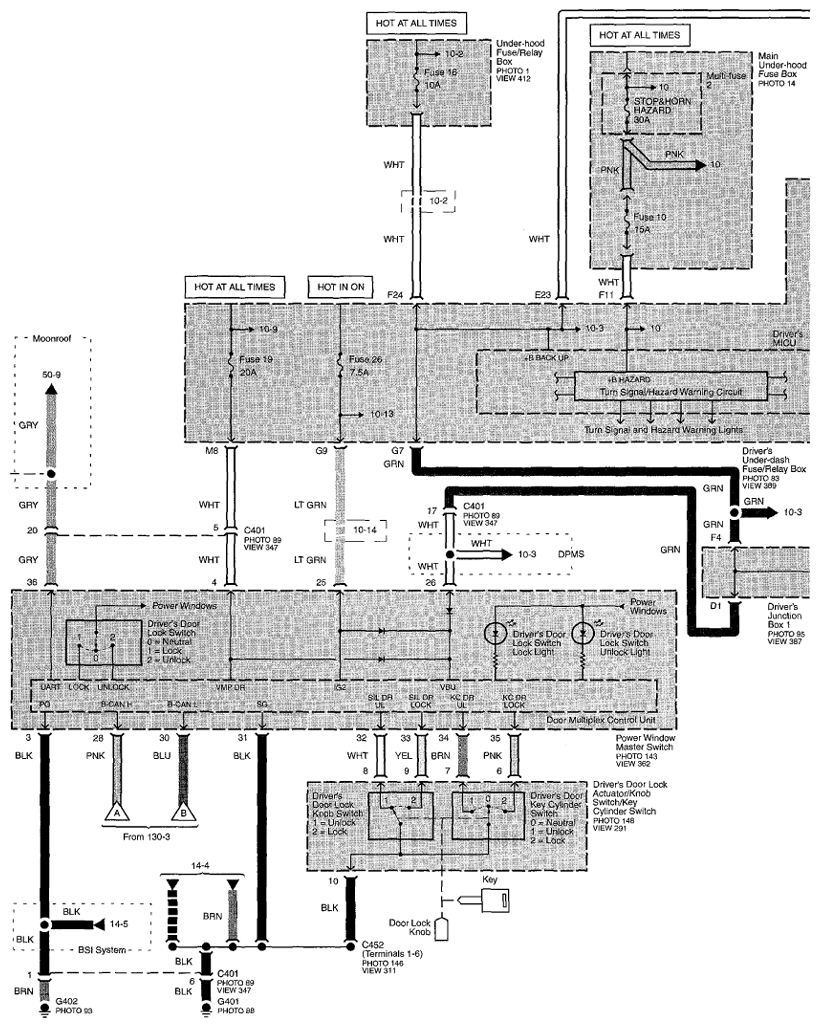

Fig 1: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130)

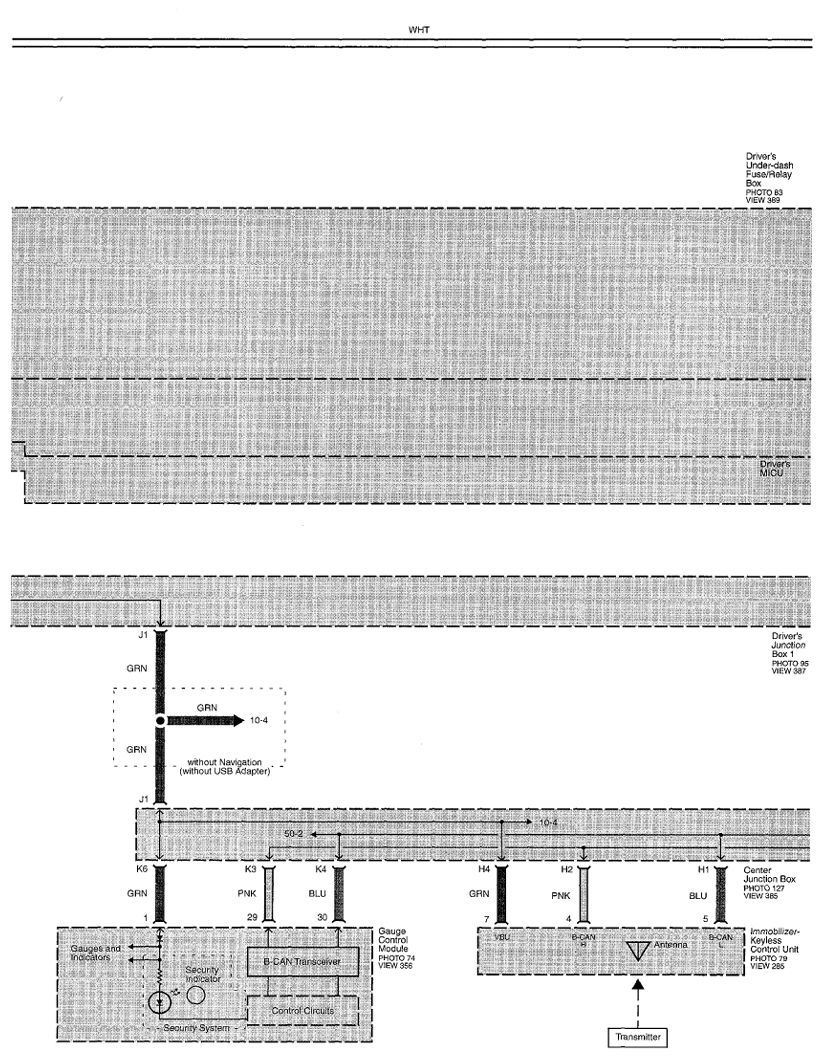

Fig 2: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-1)

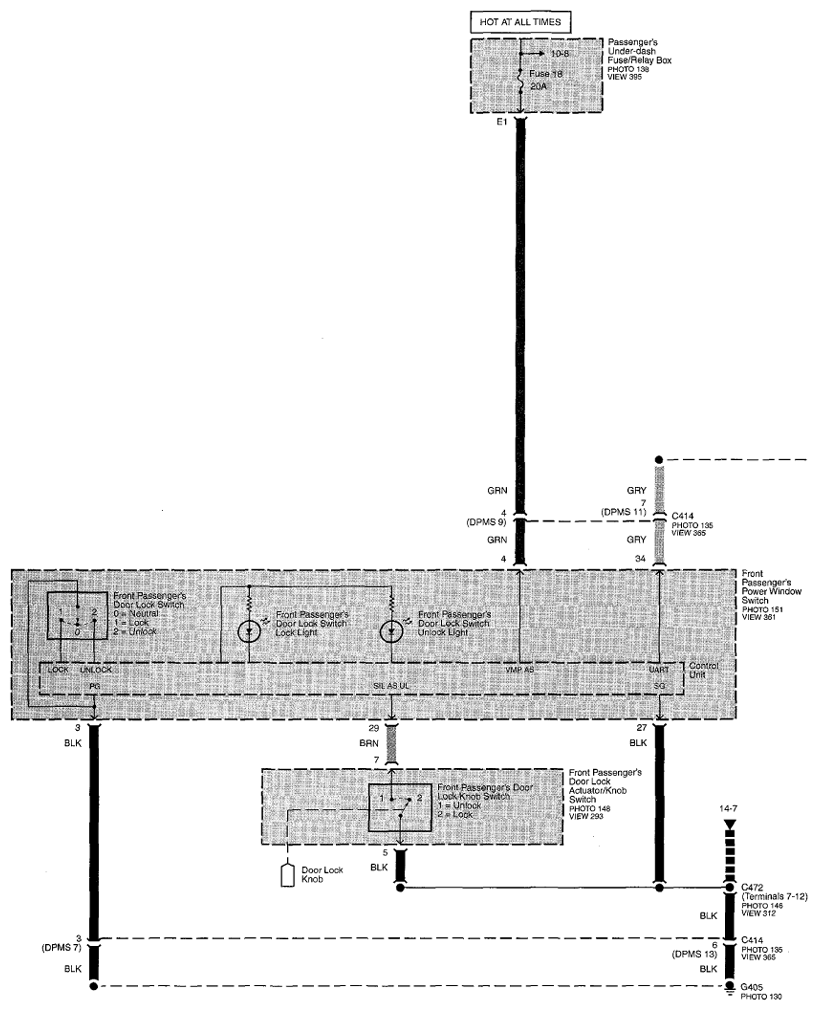

Fig 3: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-2)

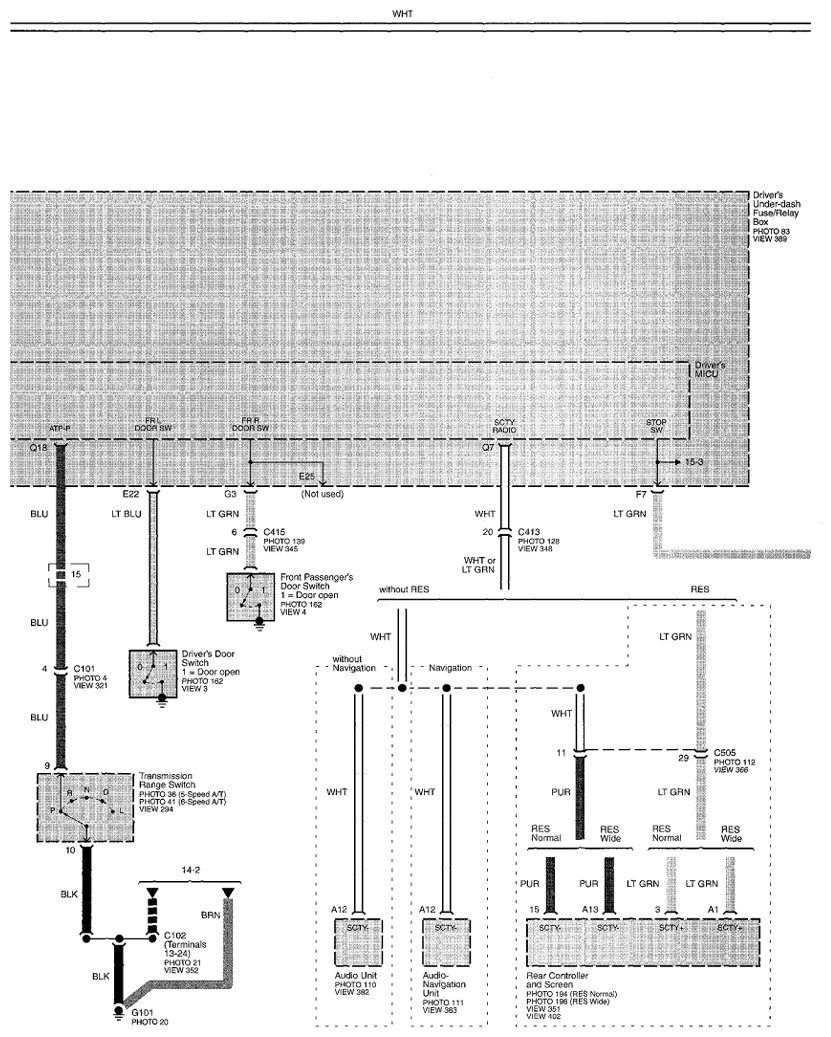

Fig 4: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-3)

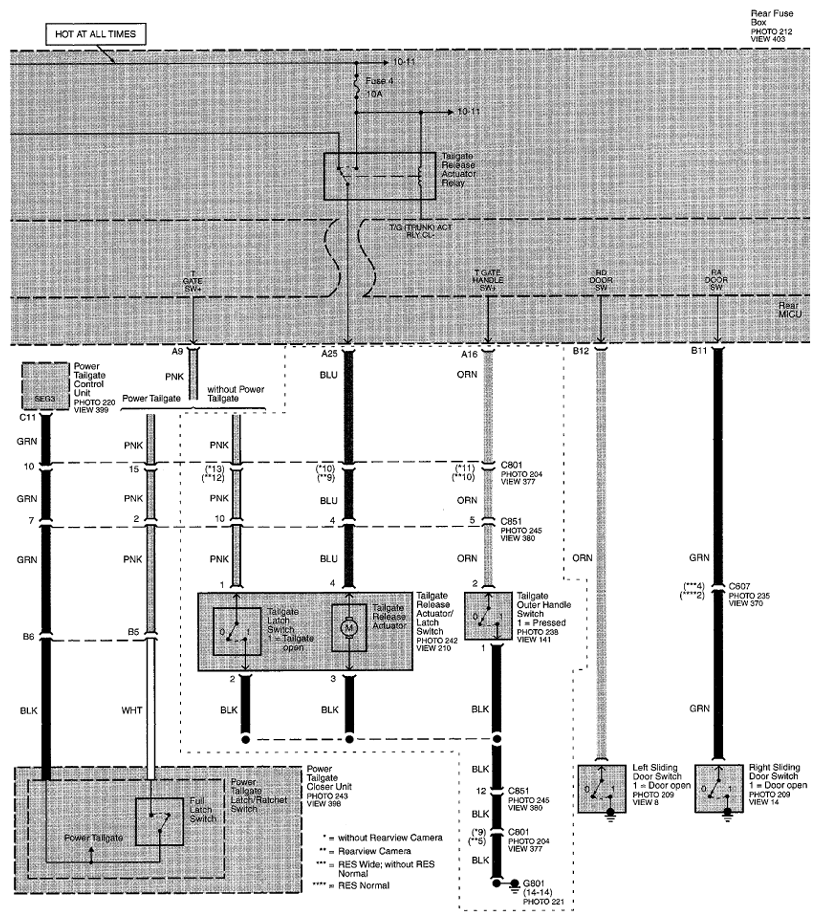

Fig 5: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-4)

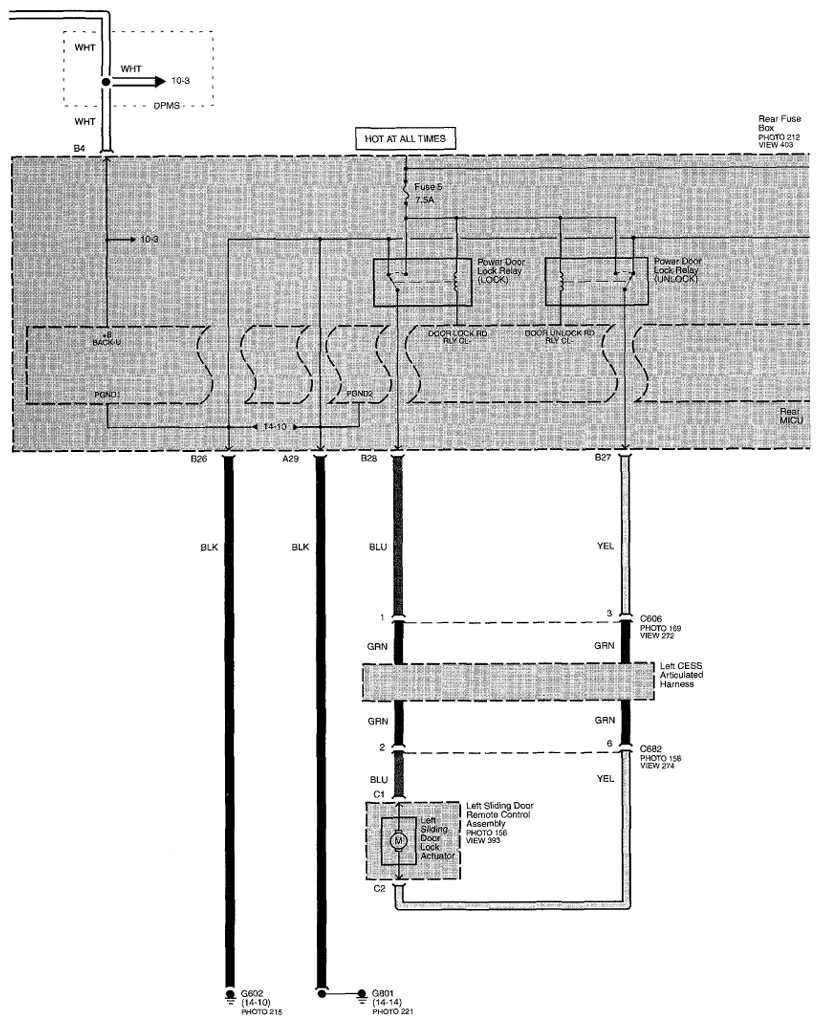

Fig 6: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-5)

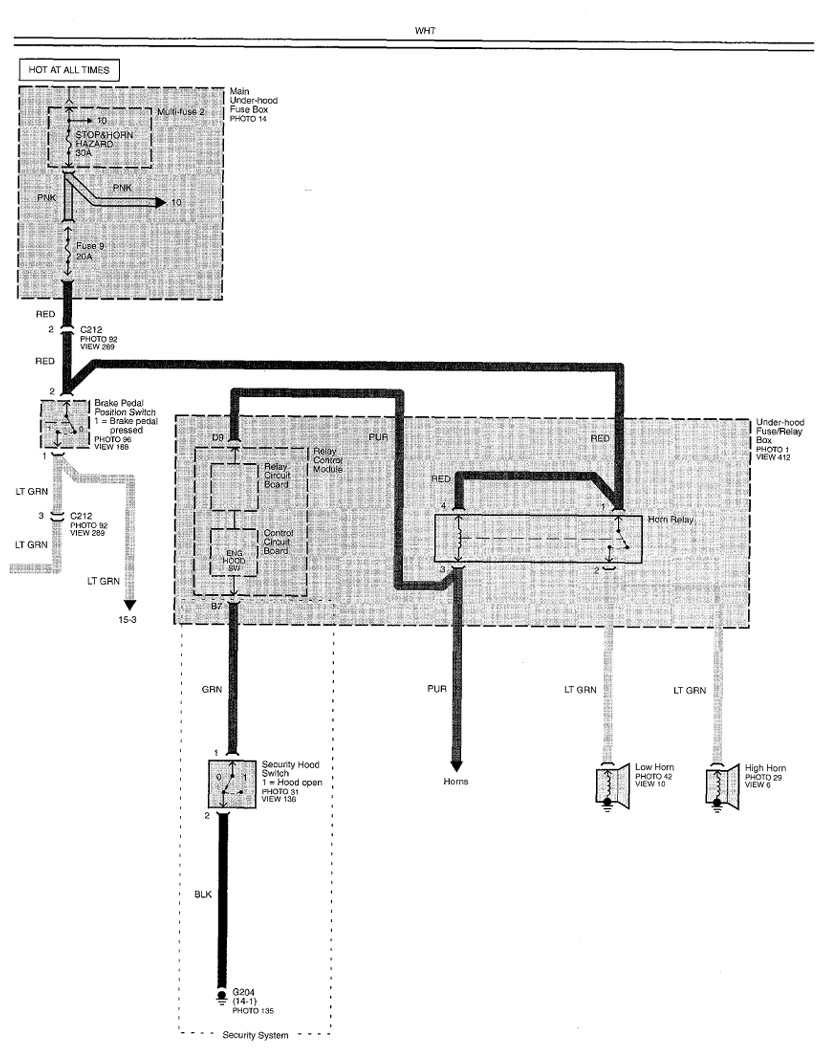

Fig 7: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-6)

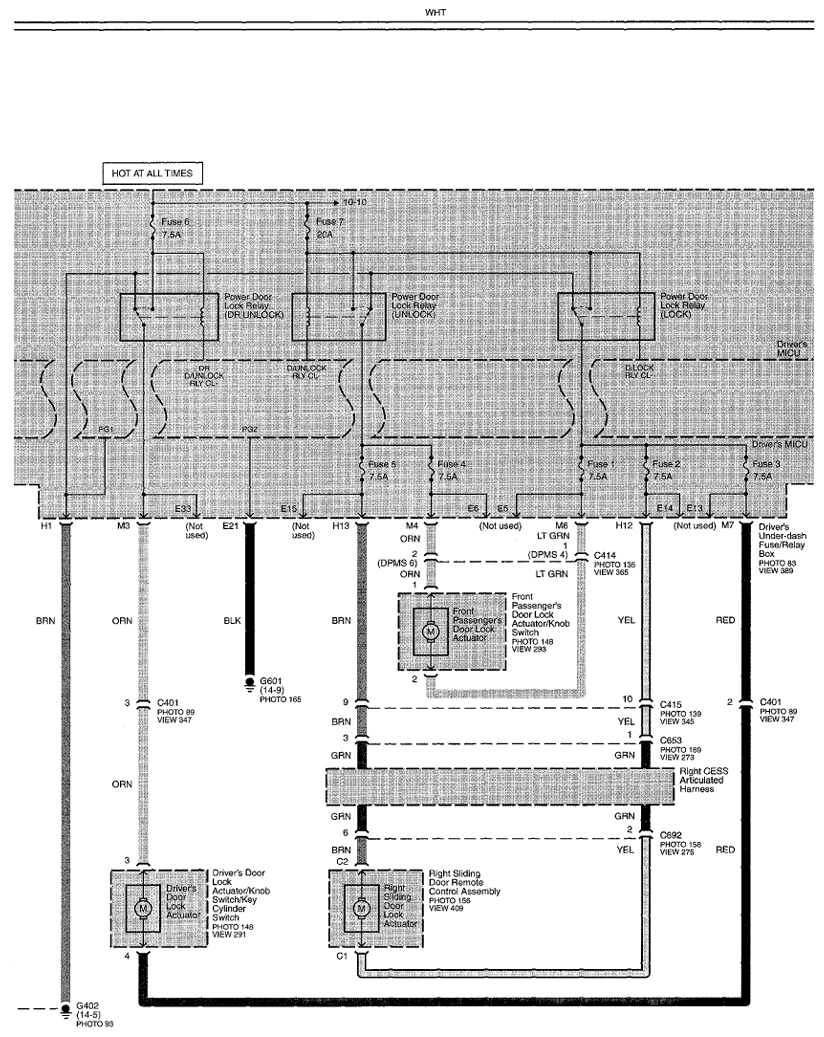

Fig 8: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-7)

Fig 9: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-8)

Fig 10: Keyless/Power Door Locks/Security System Circuit Diagram (Page 130-9)
