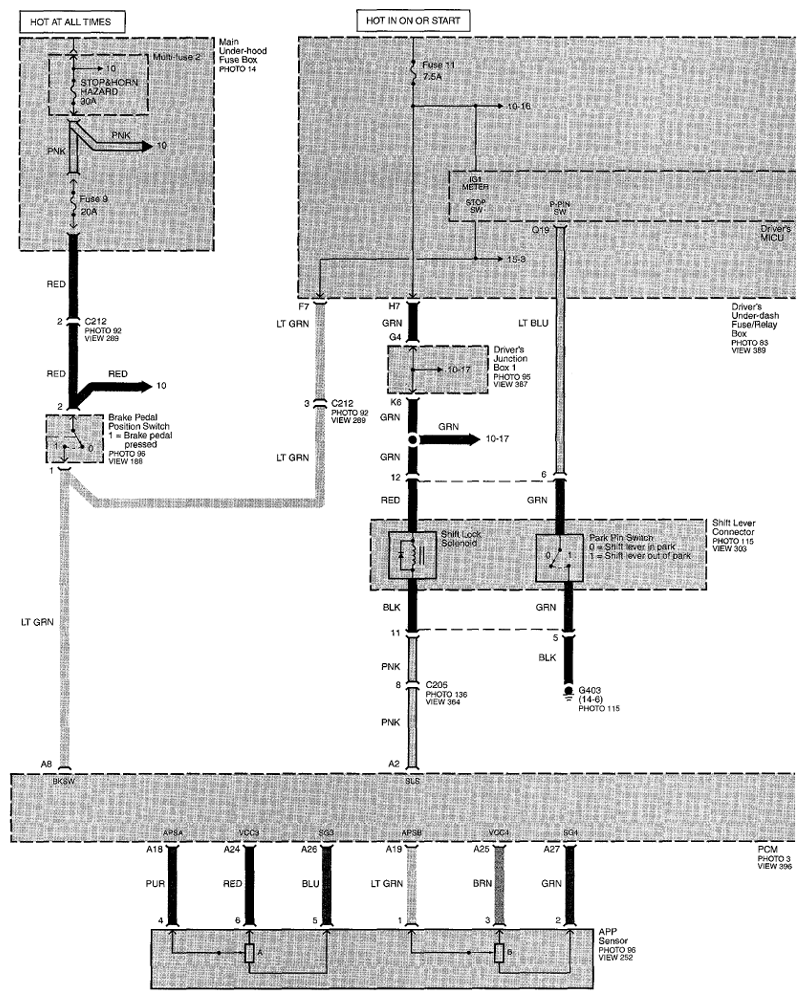

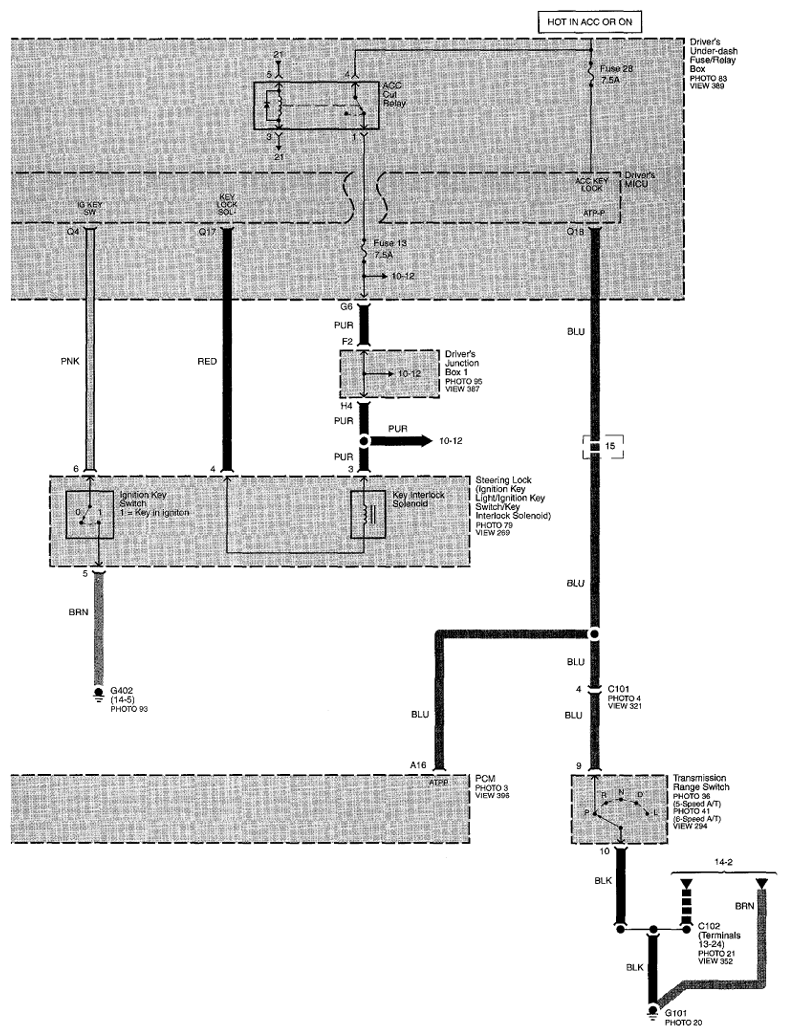

Interlock System: Notes
WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For connector or component location "PHOTO", see OEM-COMPONENT LOCATION
. For connector "VIEW", see OEM CONNECTOR END VIEWS
.
