HomeLink® Remote Control System: HomeLink®

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

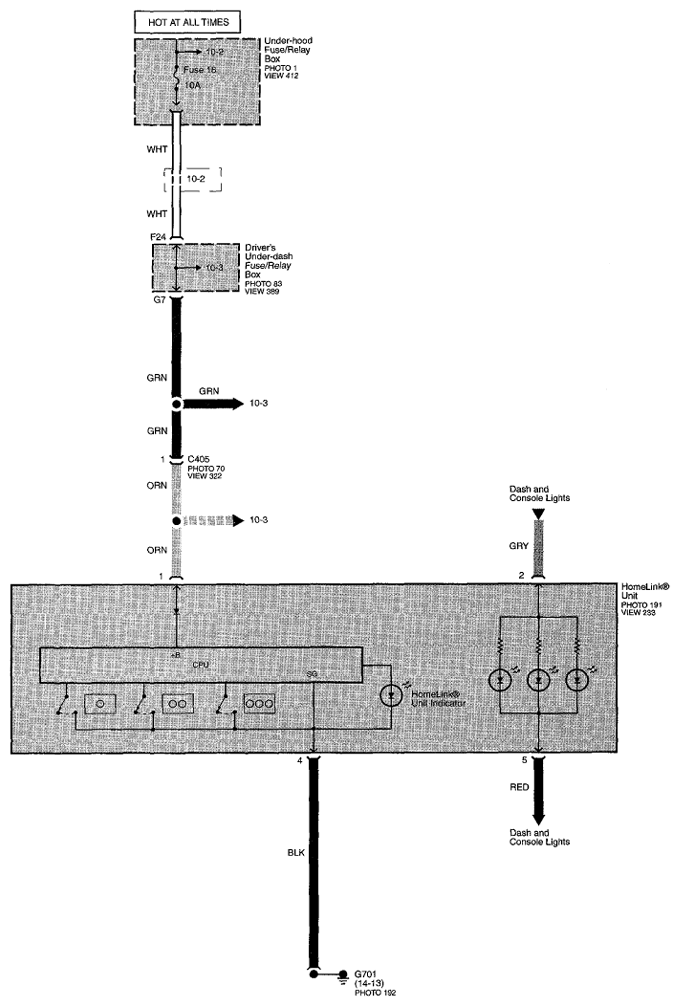

Fig 1: Homelink Circuit Diagram - Remote Control System (Page 157)
G07761711
