Headlight Leveling System: Hid
WARNING:
This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

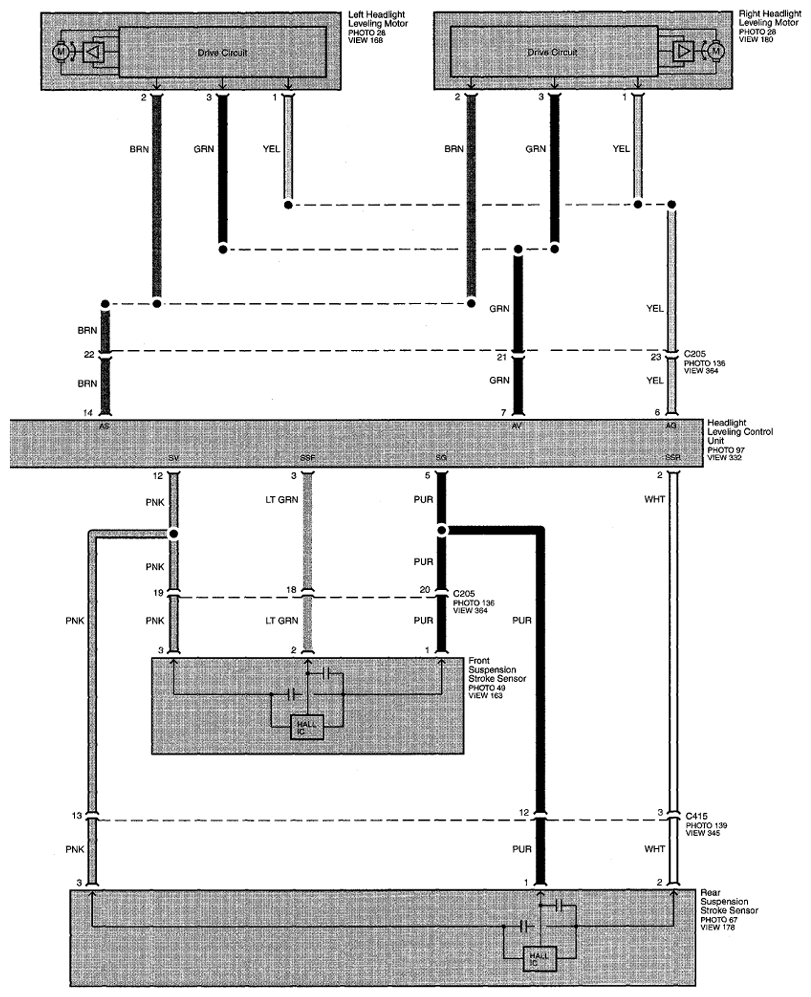

Fig 1: Headlight Leveling System Circuit Diagram - HID (Page 104)

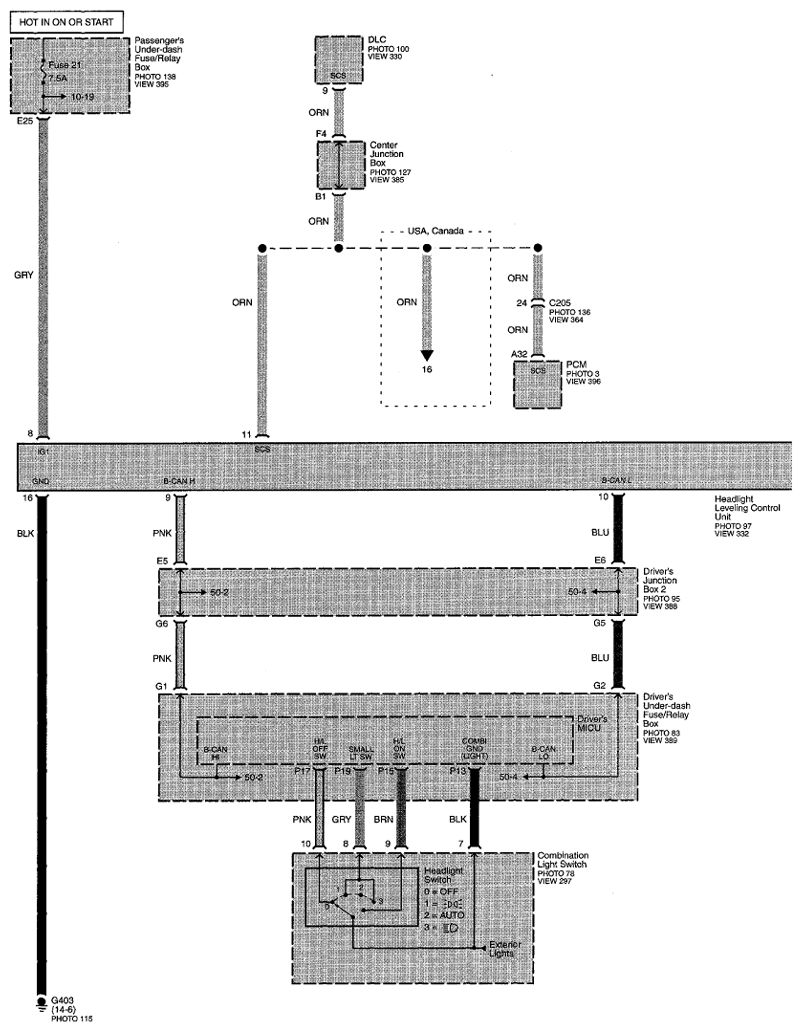

Fig 2: Headlight Leveling System Circuit Diagram - HID (Page 104-1)
