Entry Light Control System

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

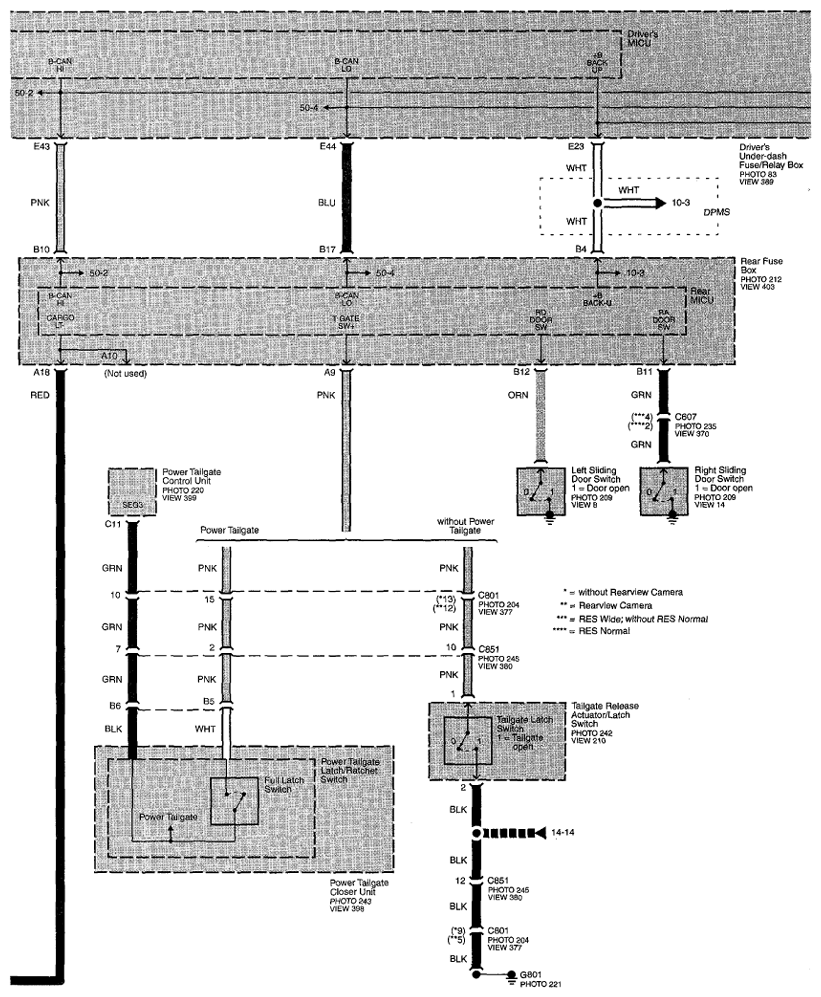

Fig 1: Entry Light Control System Circuit Diagram (Page 115)

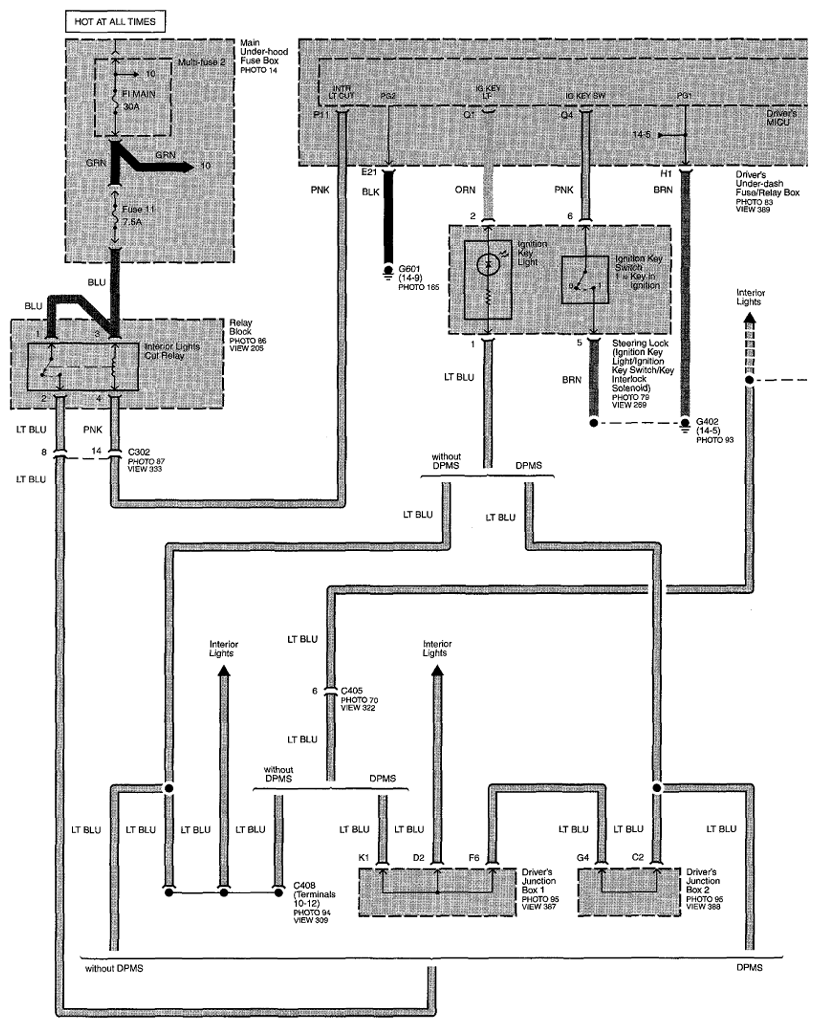

Fig 2: Entry Light Control System Circuit Diagram (Page 115-1)

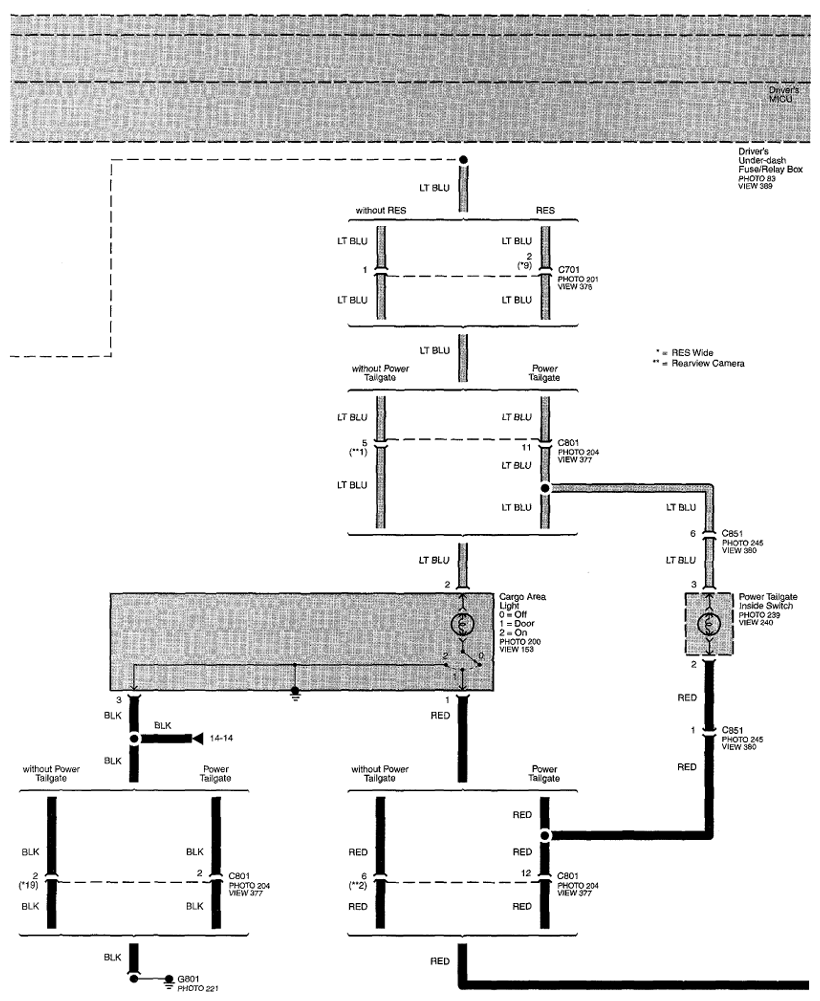

Fig 3: Entry Light Control System Circuit Diagram (Page 115-2)

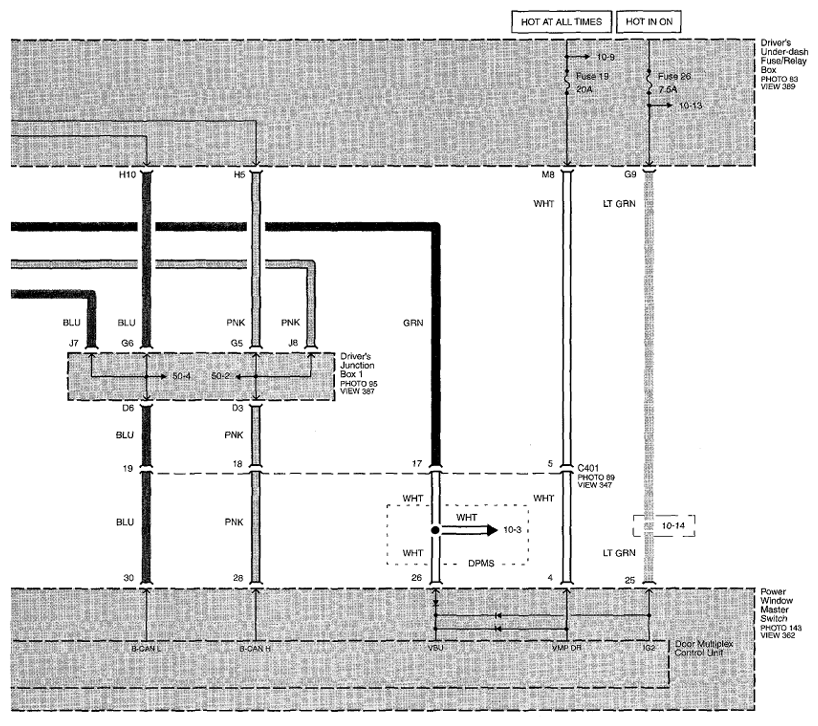

Fig 4: Entry Light Control System Circuit Diagram (Page 115-3)

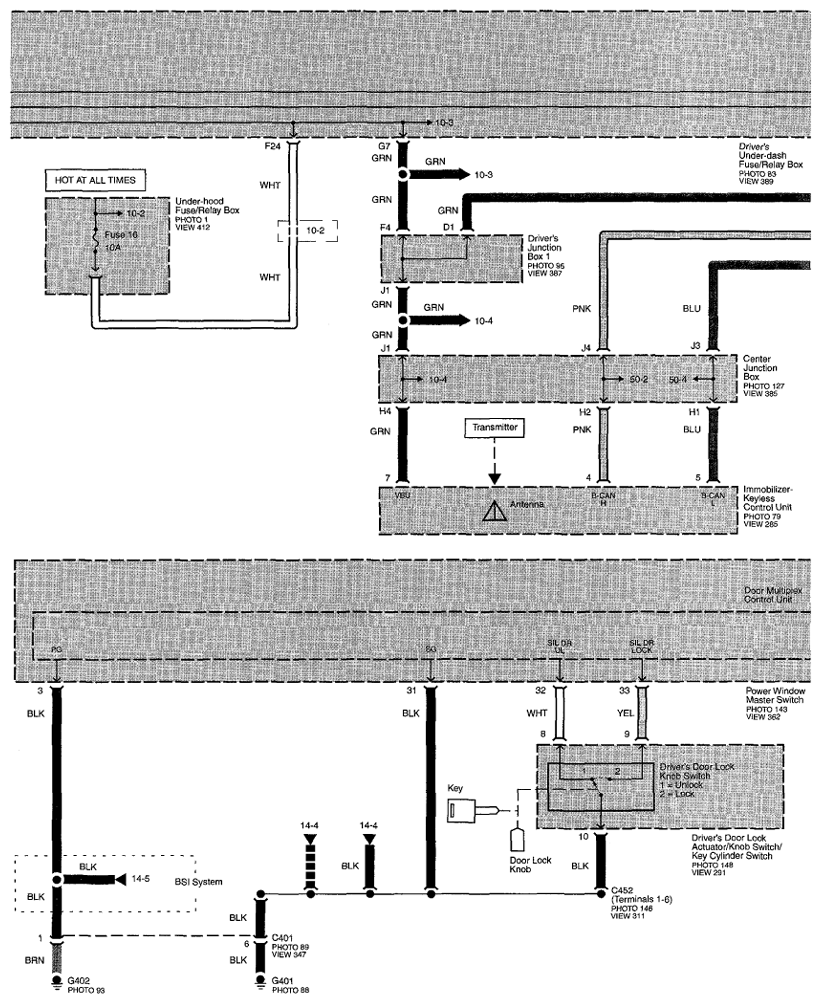

Fig 5: Entry Light Control System Circuit Diagram (Page 115-4)

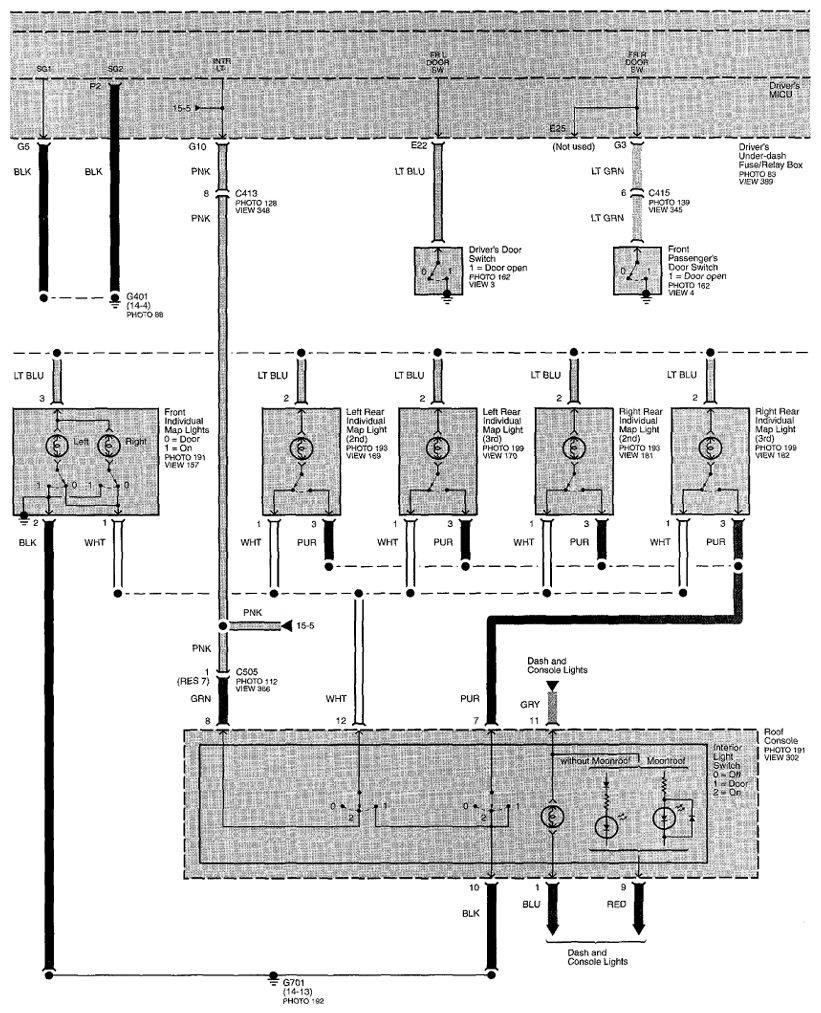

Fig 6: Entry Light Control System Circuit Diagram (Page 115-5)
