Section 2 (OEM Circuit Diagrams): DPMS

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

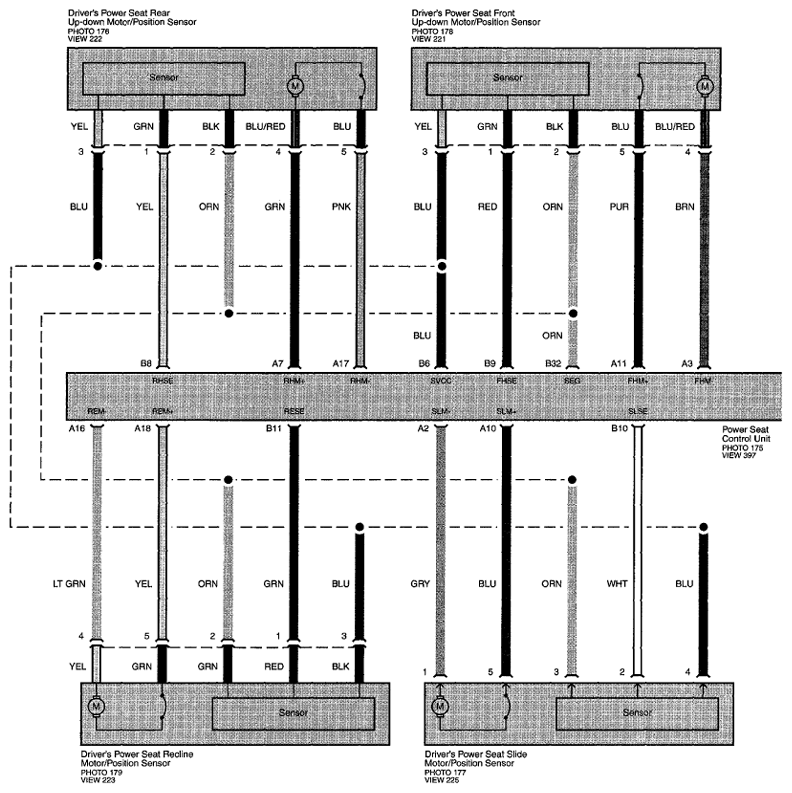

Fig 1: DPMS Circuit Diagram (Page 143)

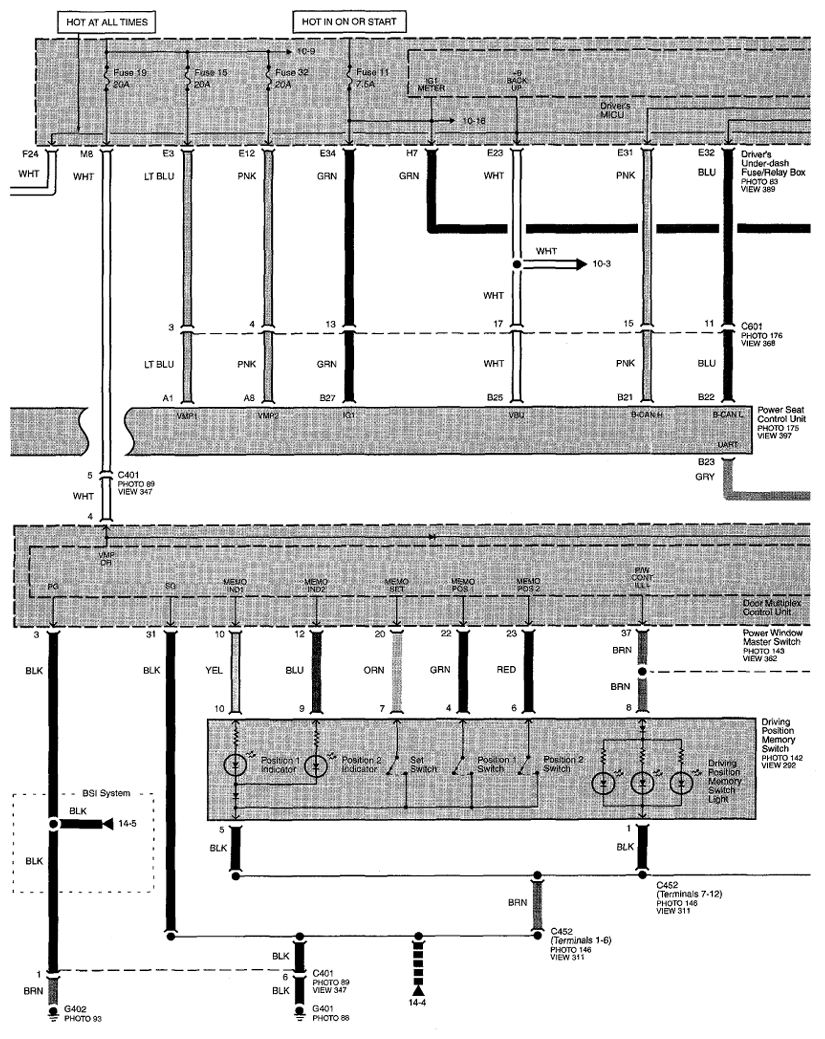

Fig 2: DPMS Circuit Diagram (Page 143-1)

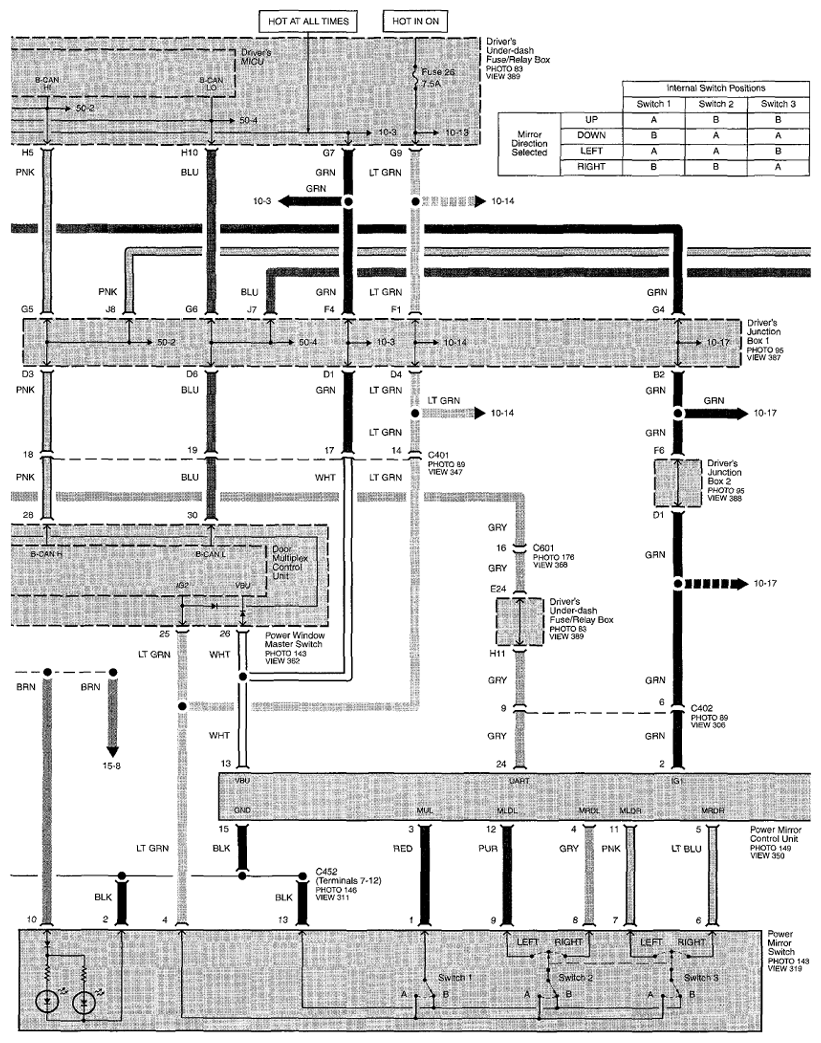

Fig 3: DPMS Circuit Diagram (Page 143-2)

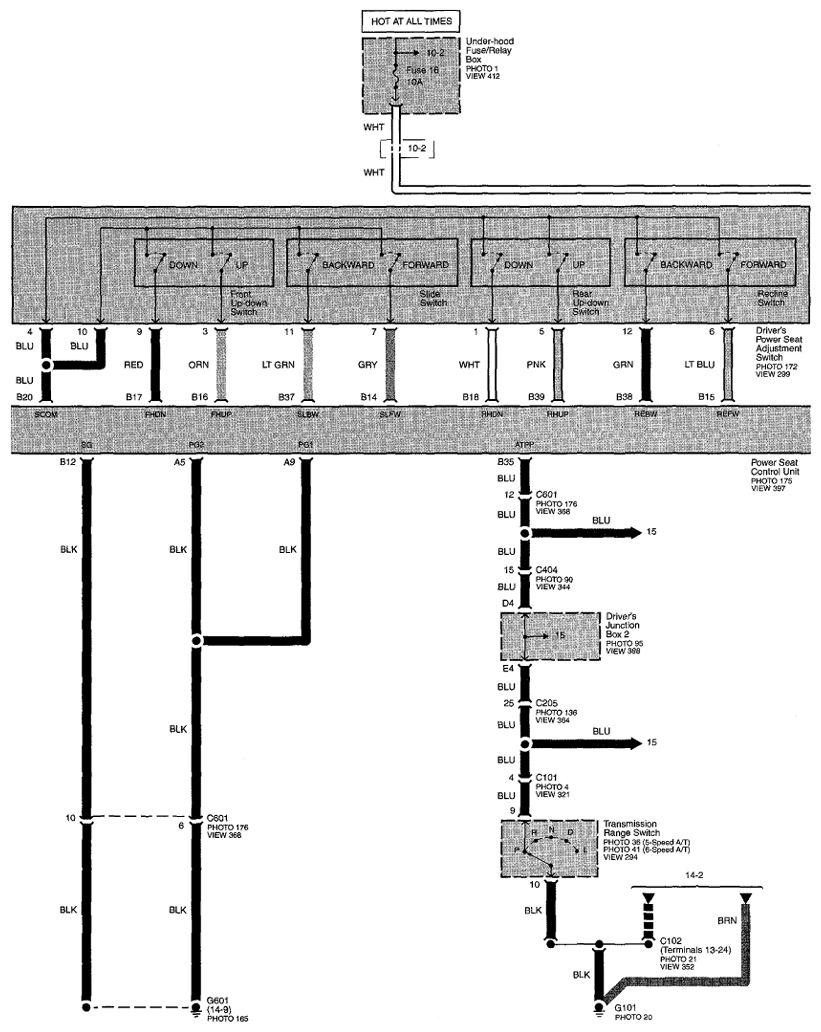

Fig 4: DPMS Circuit Diagram (Page 143-3)

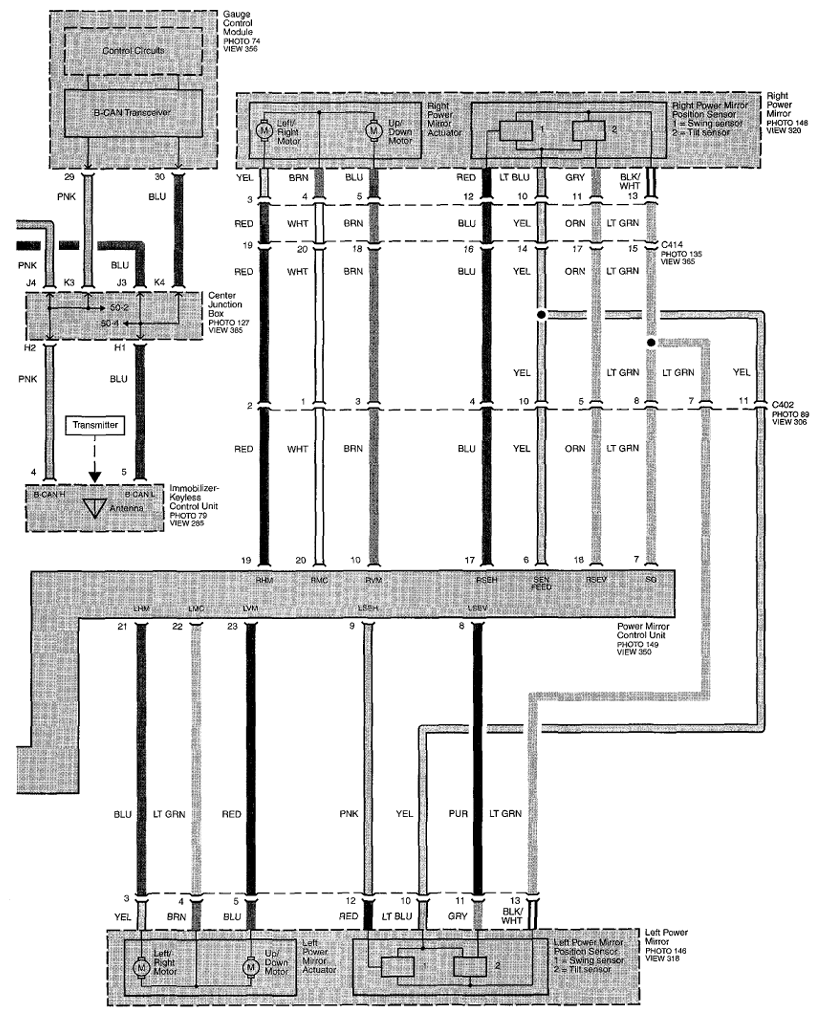

Fig 5: DPMS Circuit Diagram (Page 143-4)
