Cruise Control: Notes

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

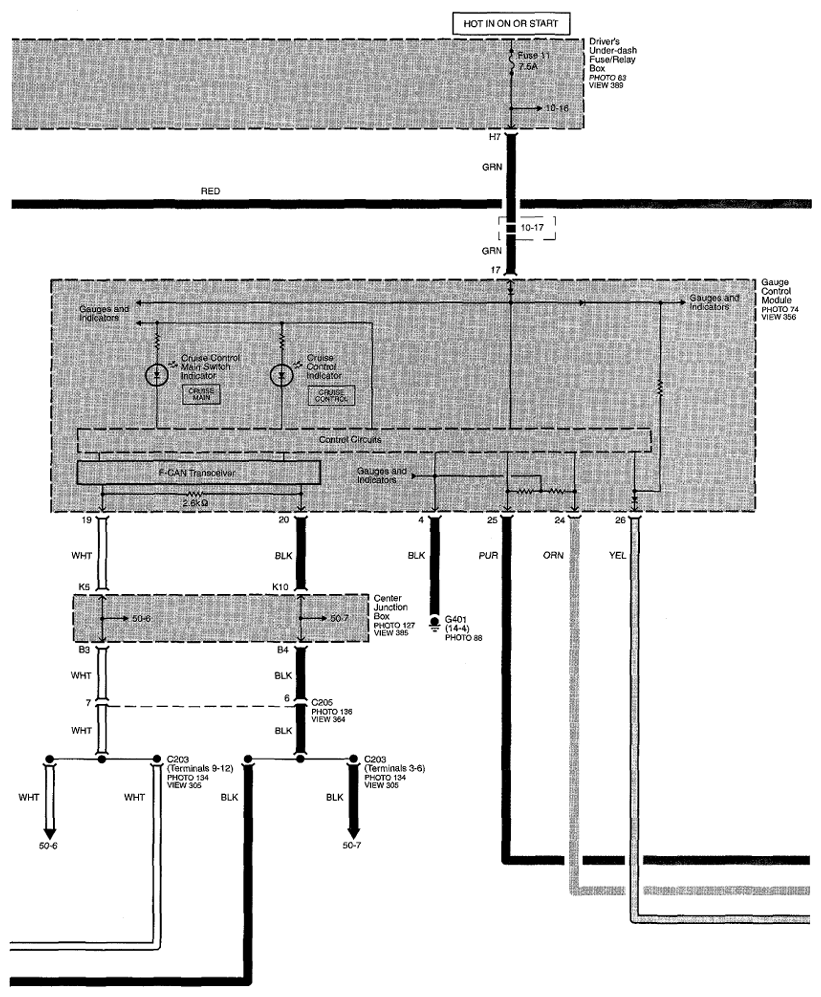

Fig 1: Cruise Control Circuit Diagram (Page 34)

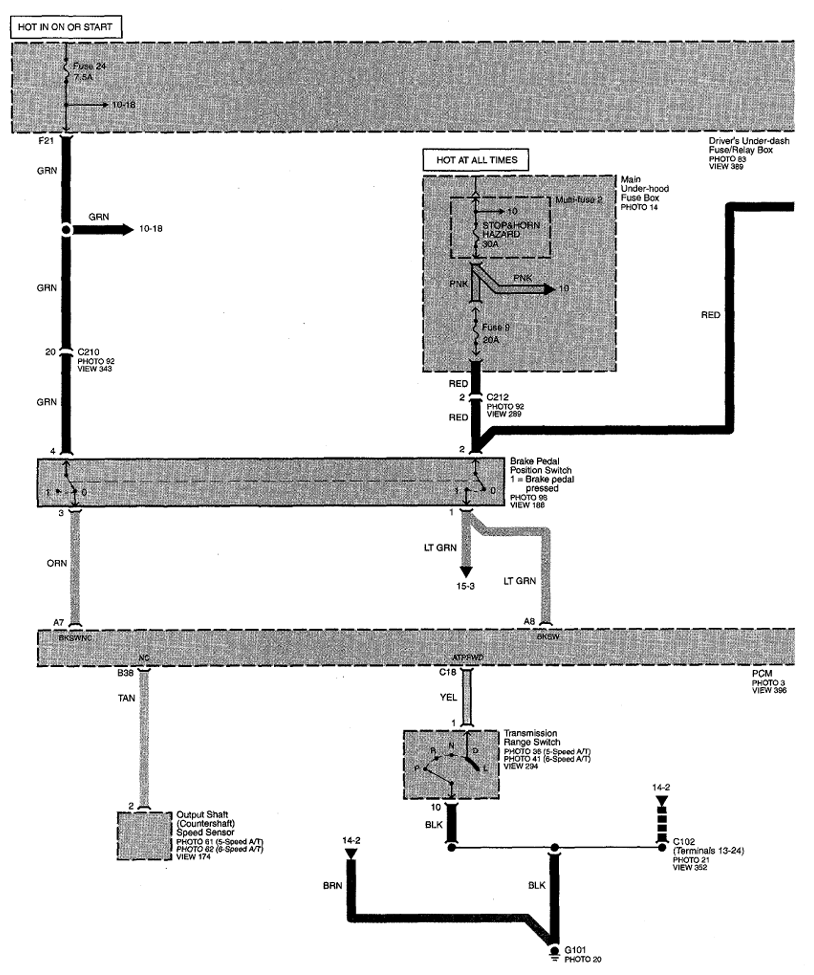

Fig 2: Cruise Control Circuit Diagram (Page 34-1)

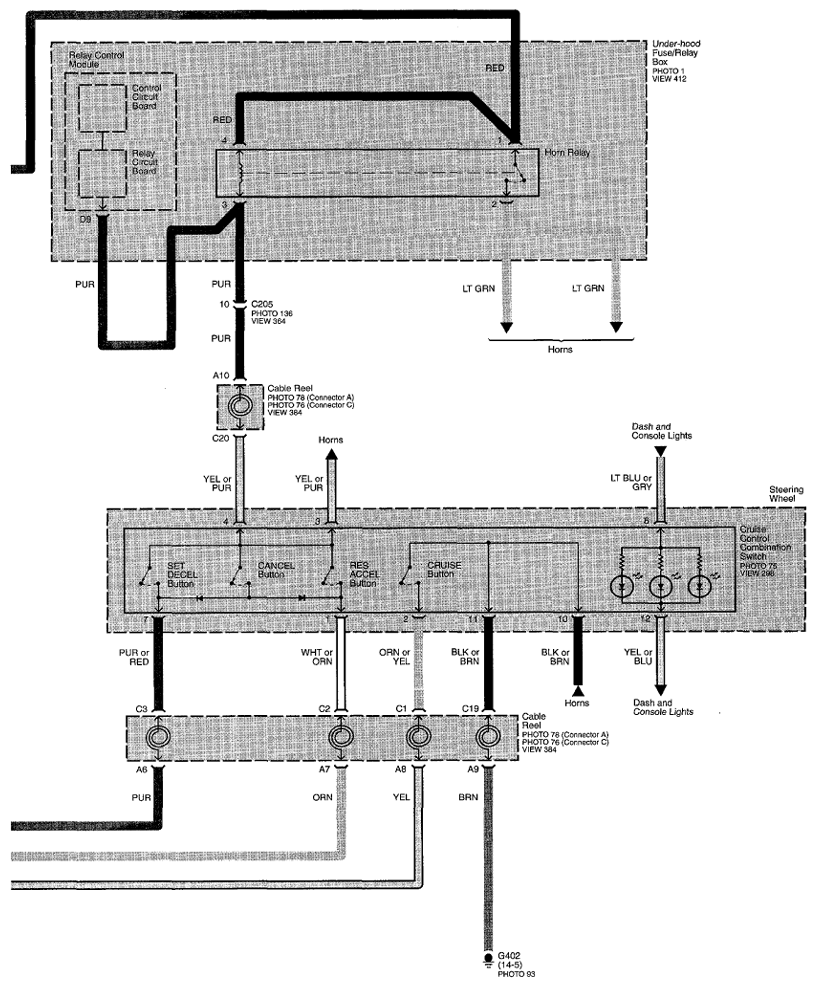

Fig 3: Cruise Control Circuit Diagram (Page 34-2)

Fig 4: Cruise Control Circuit Diagram (Page 34-3)
