Battery Management System

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

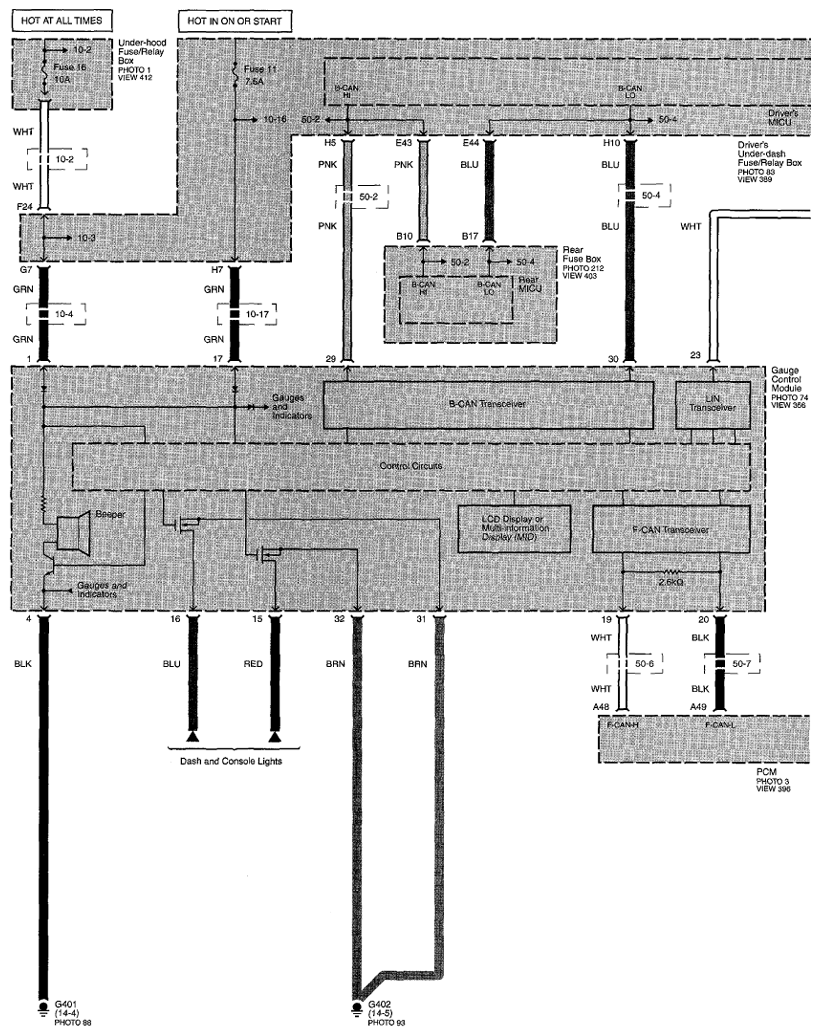

Fig 1: Battery Management System Circuit Diagram (Page 87)

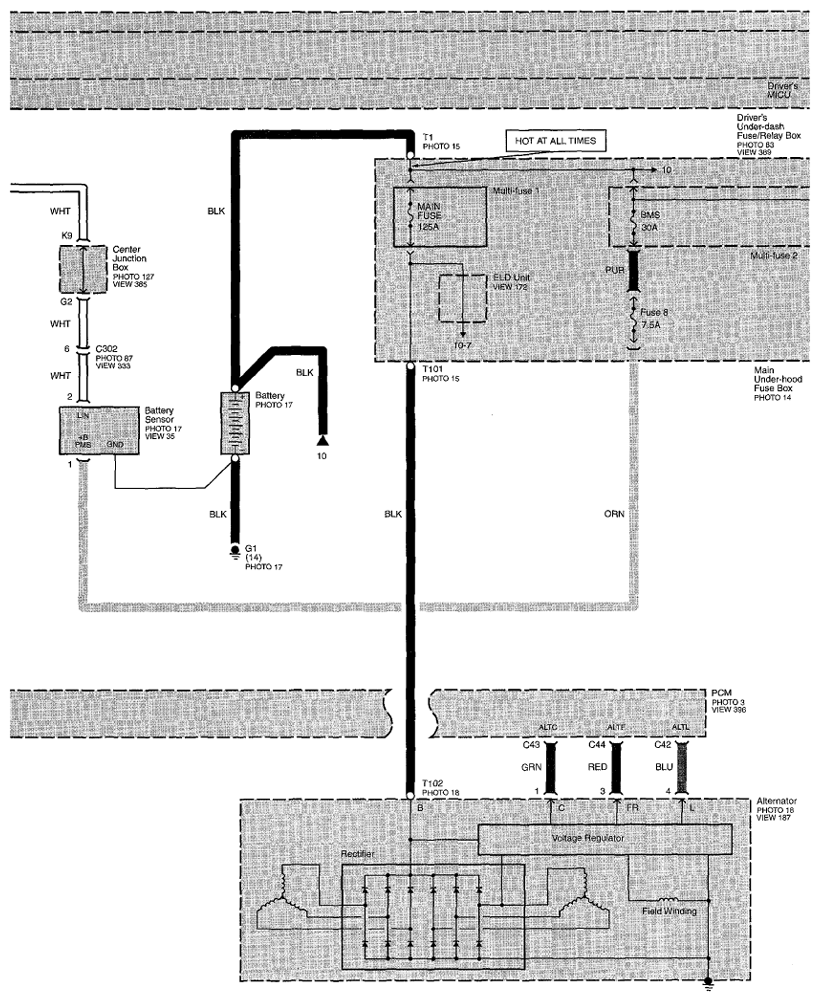

Fig 2: Battery Management System Circuit Diagram (Page 87-1)

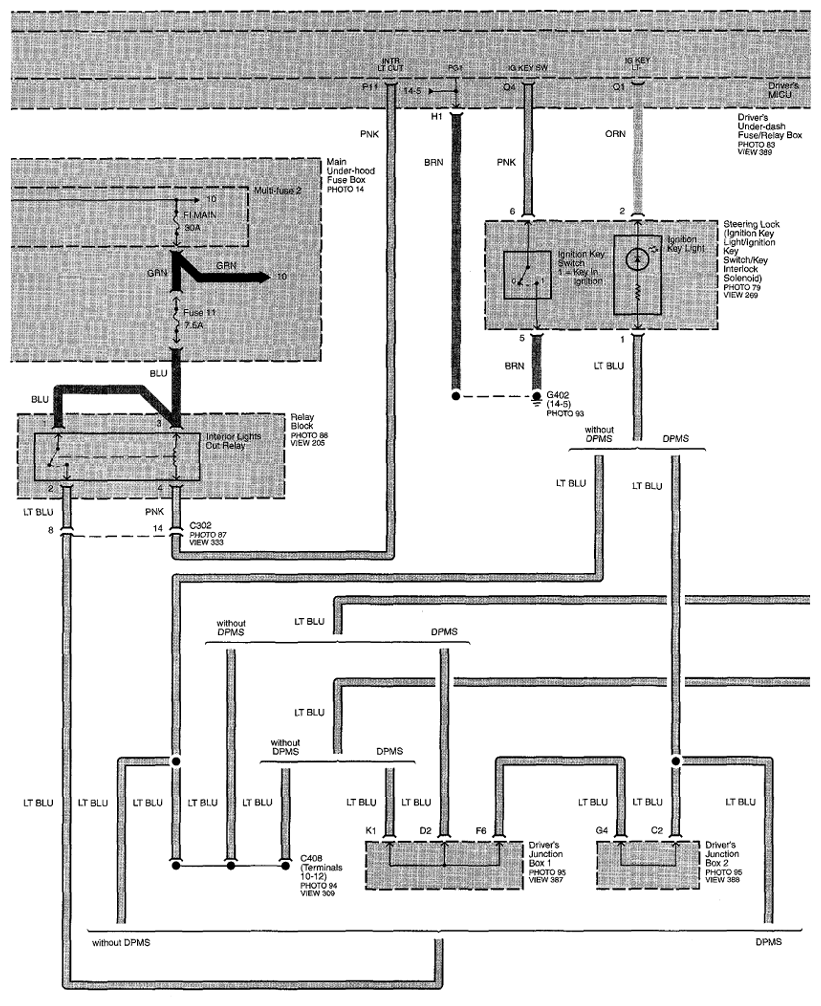

Fig 3: Battery Management System Circuit Diagram (Page 87-2)

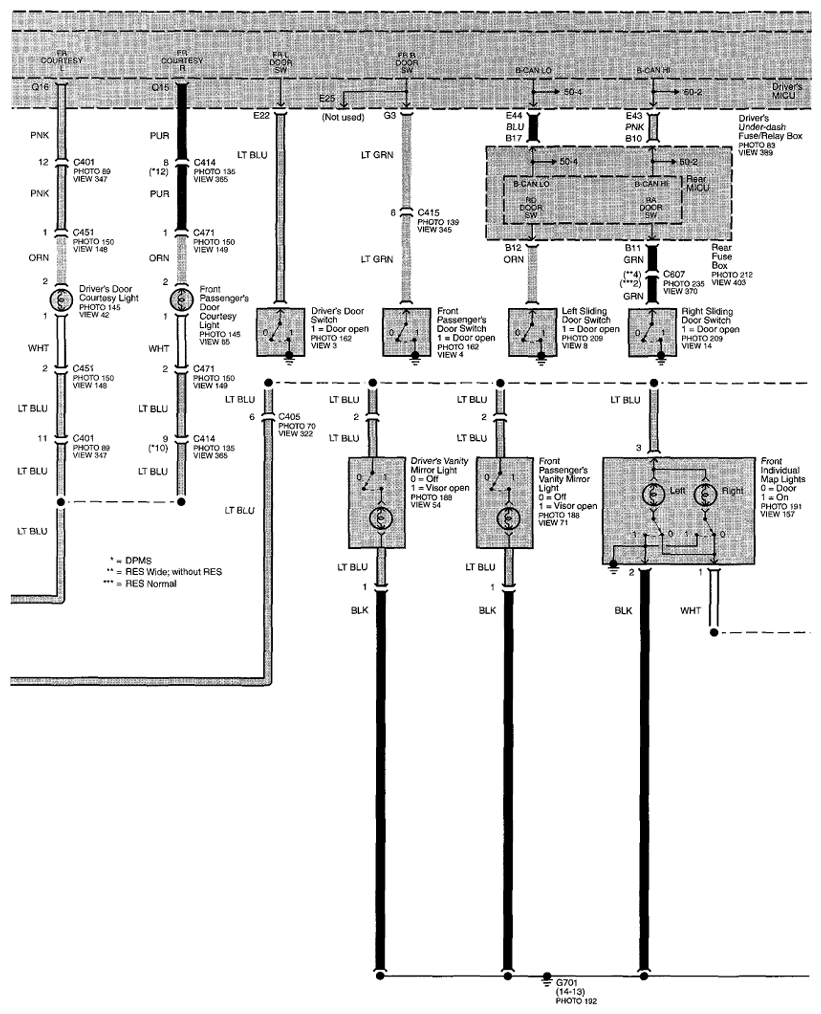

Fig 4: Battery Management System Circuit Diagram (Page 87-3)

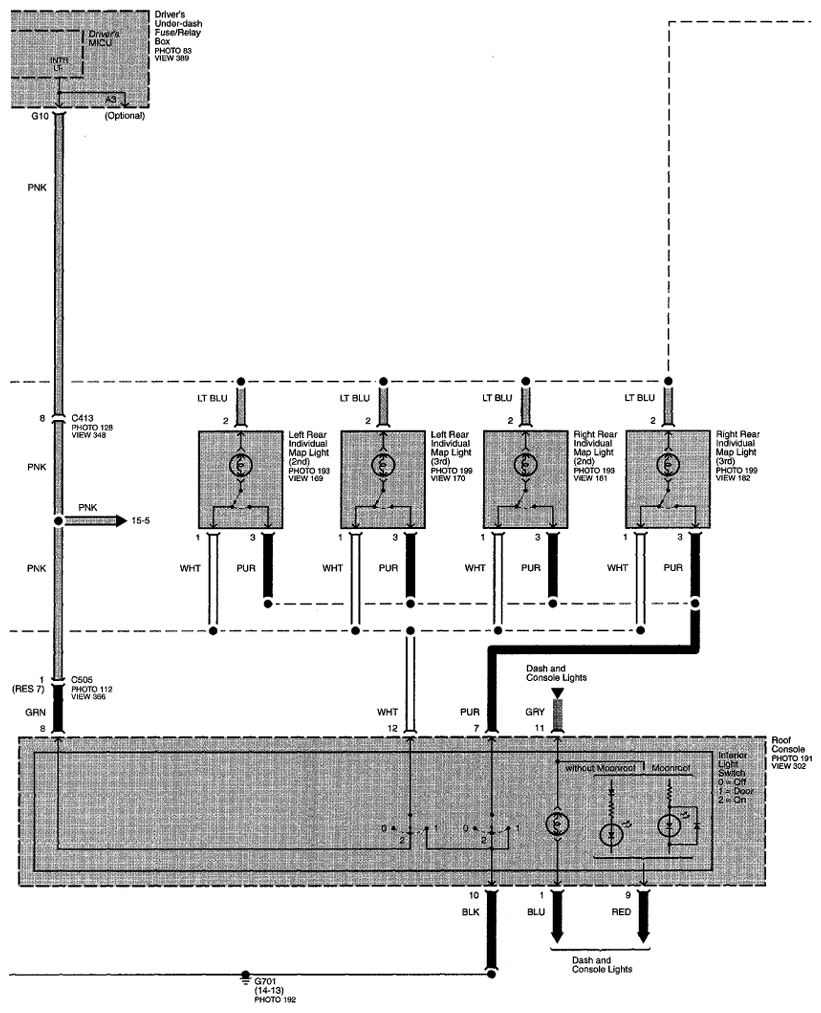

Fig 5: Battery Management System Circuit Diagram (Page 87-4)

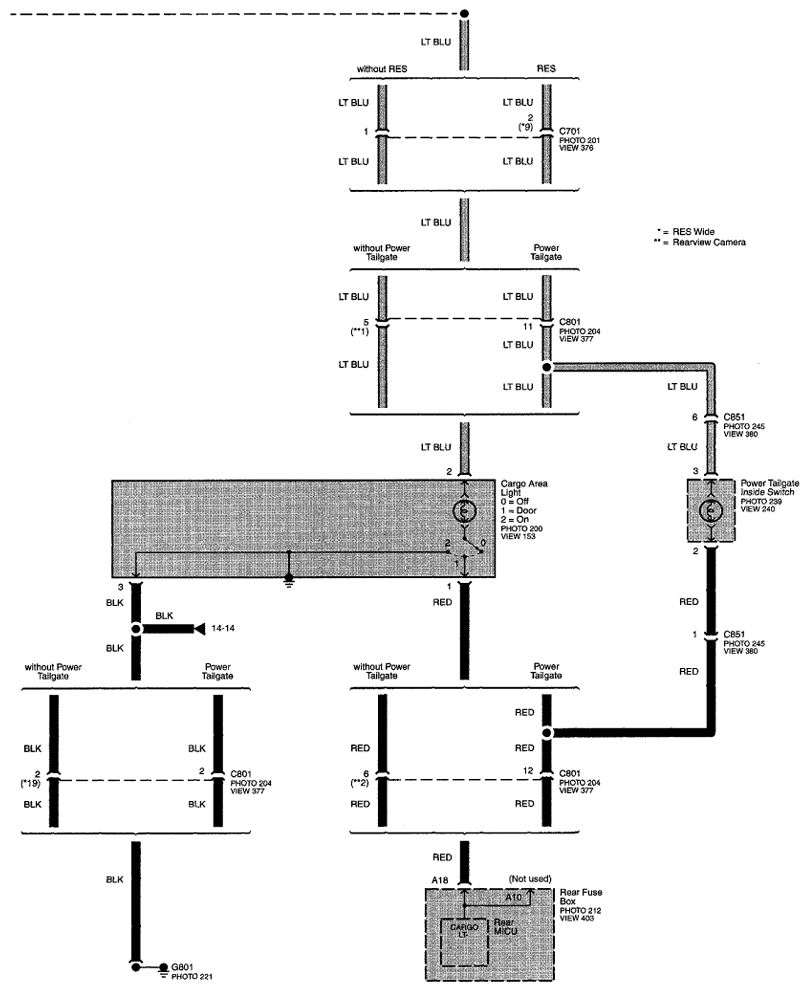

Fig 6: Battery Management System Circuit Diagram (Page 87-5)
