WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

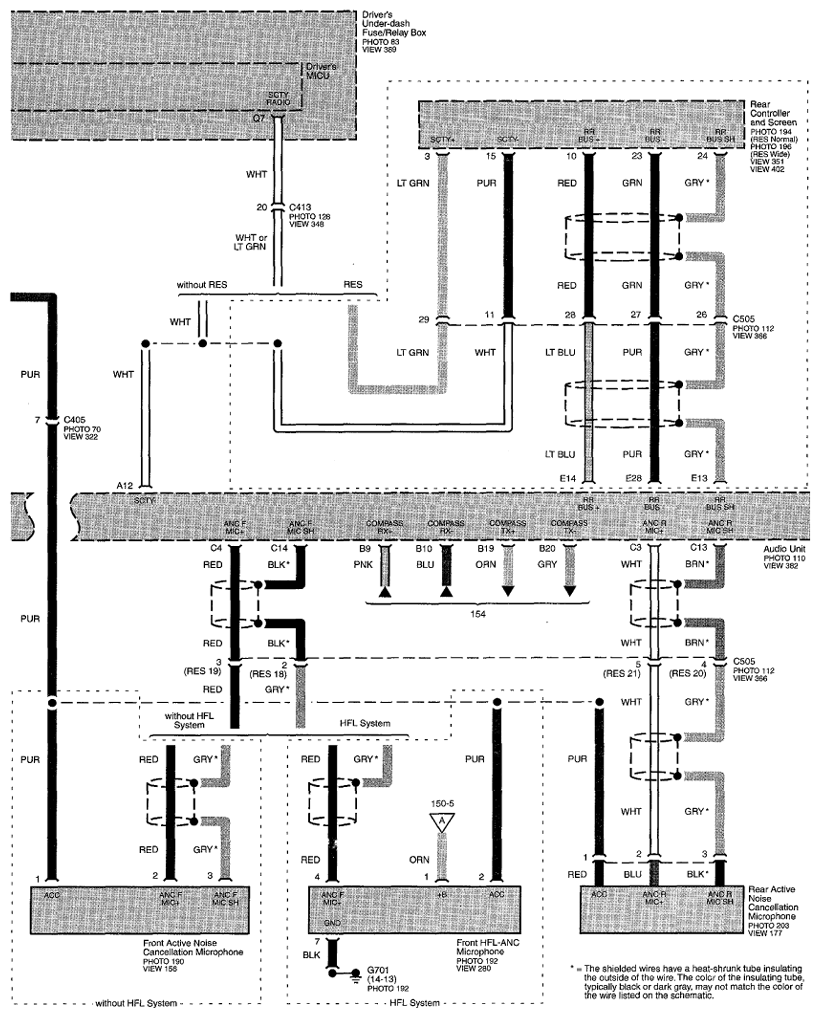

Fig 1: USB Adapter Without Navigation Circuit Diagram (Page 150-5)

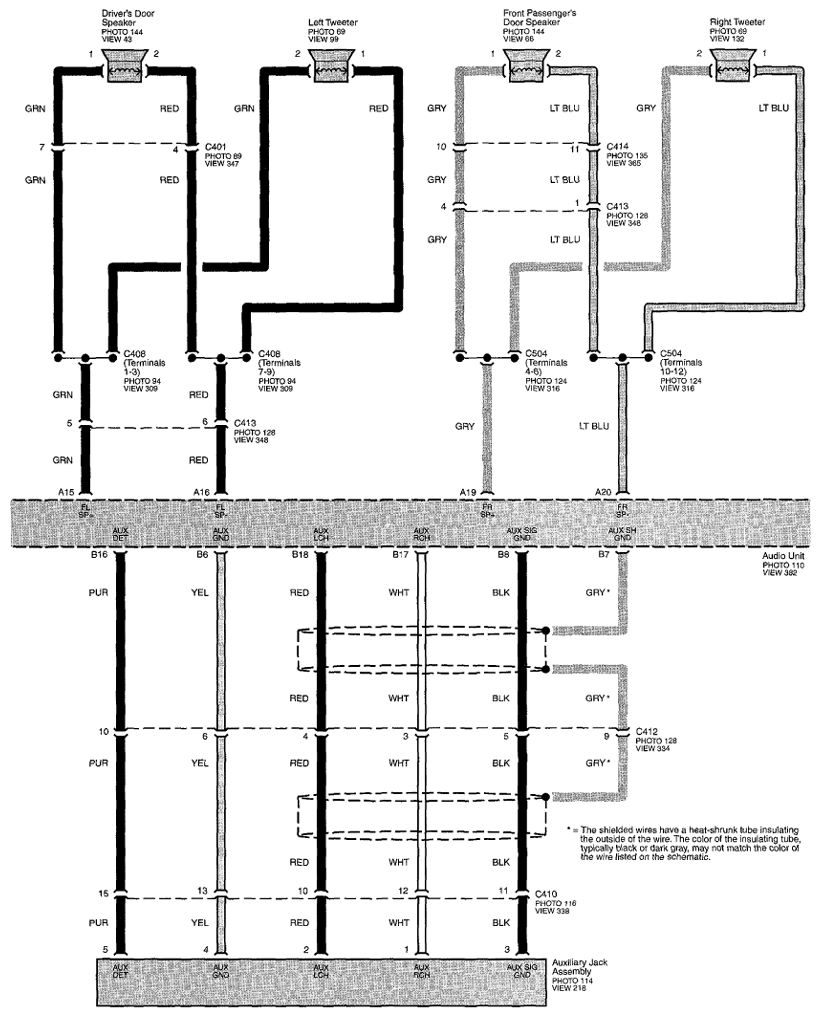

Fig 2: USB Adapter Without Navigation Circuit Diagram (Page 150-6)

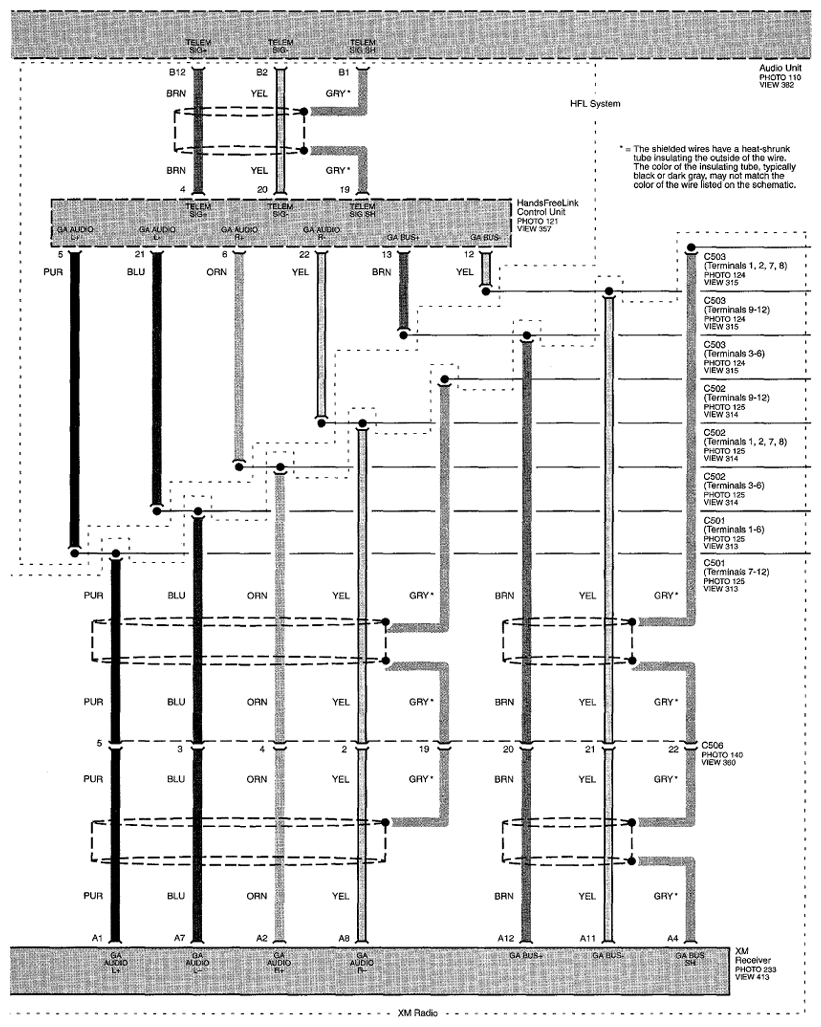

Fig 3: USB Adapter Without Navigation Circuit Diagram (Page 150-7)

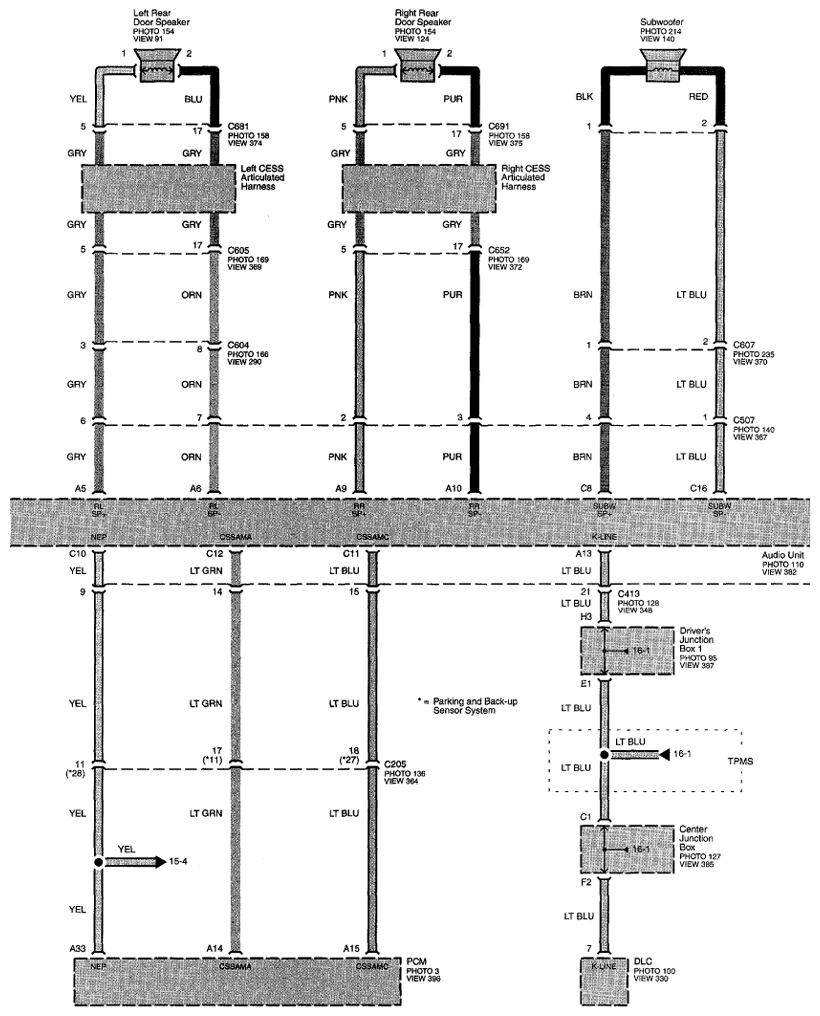

Fig 4: USB Adapter Without Navigation Circuit Diagram (Page 150-8)

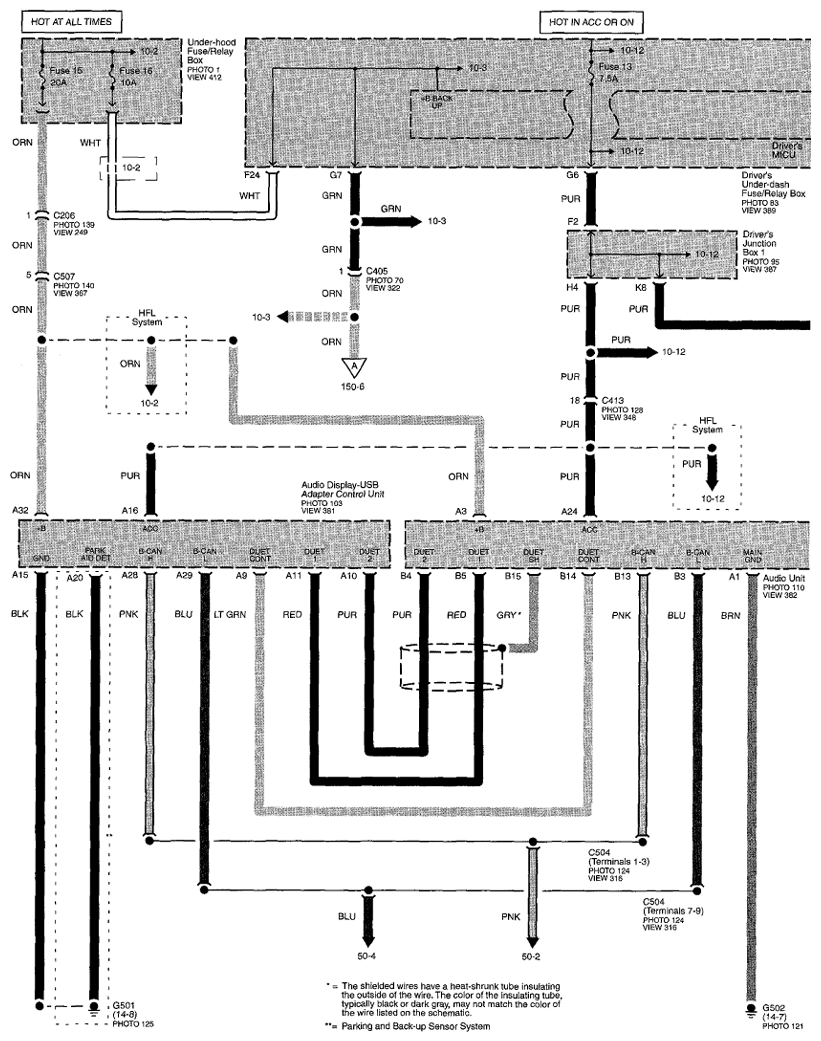

Fig 5: USB Adapter Without Navigation Circuit Diagram (Page 150-9)

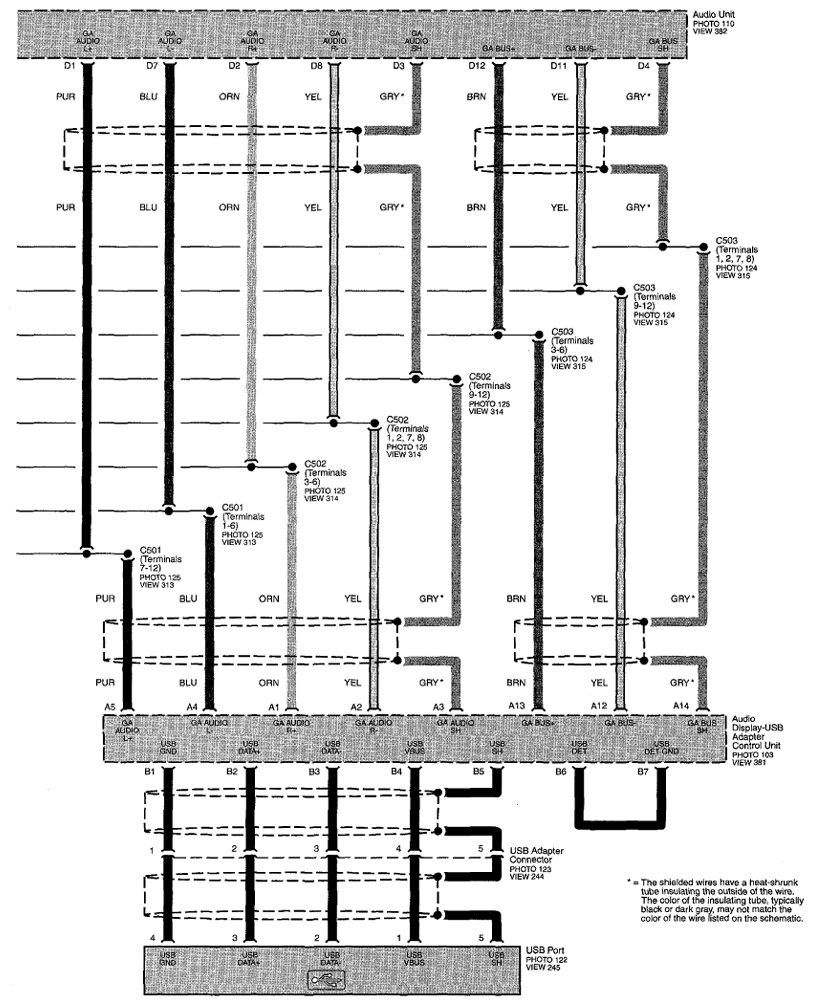

Fig 6: USB Adapter Without Navigation Circuit Diagram (Page 150-10)

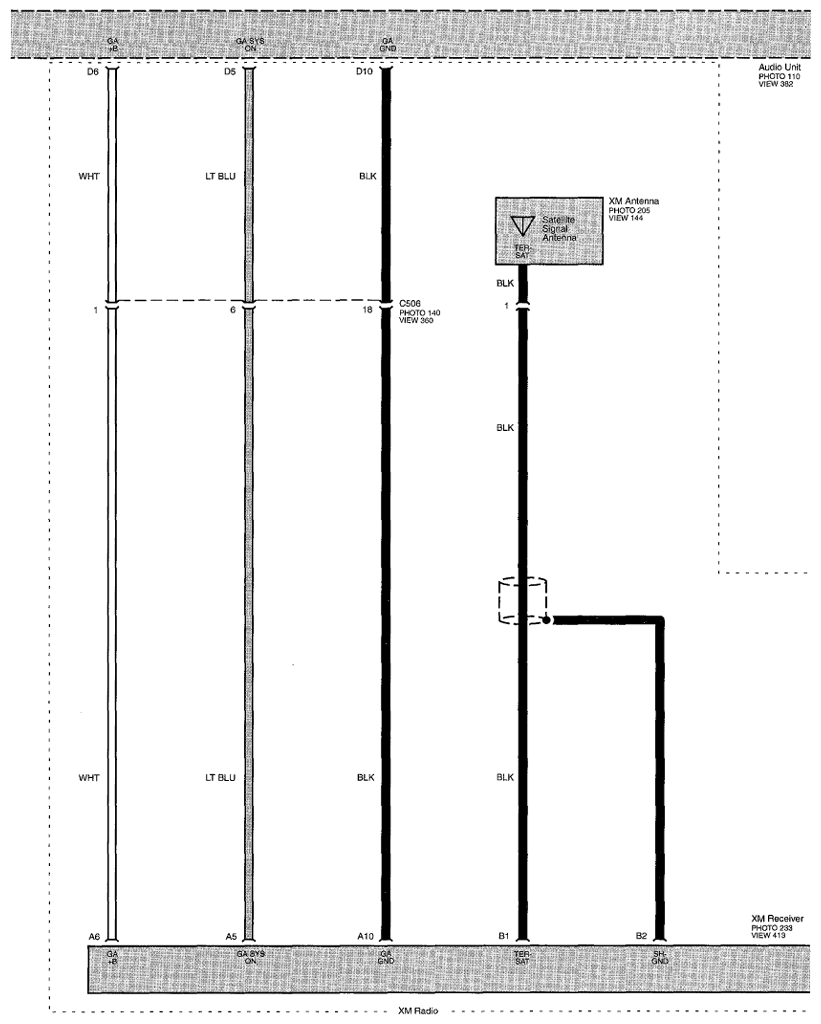

Fig 7: USB Adapter Without Navigation Circuit Diagram (Page 150-11)

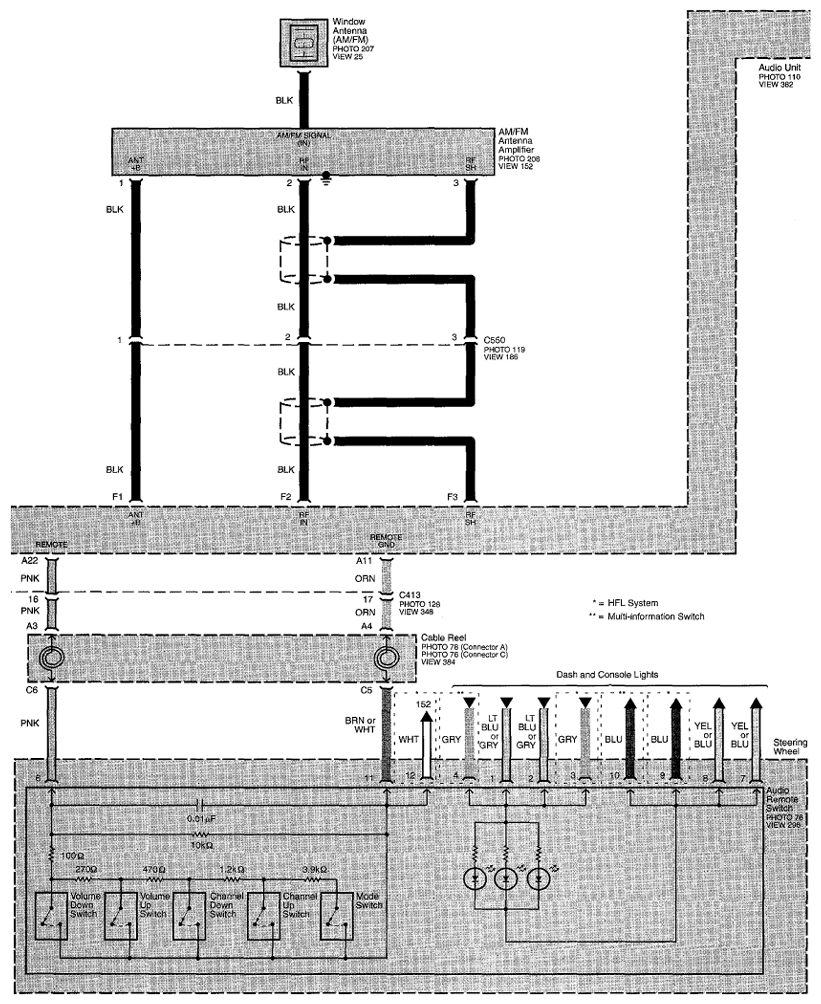

Fig 8: USB Adapter Without Navigation Circuit Diagram (Page 150-12)
