Audio System: Navigation

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

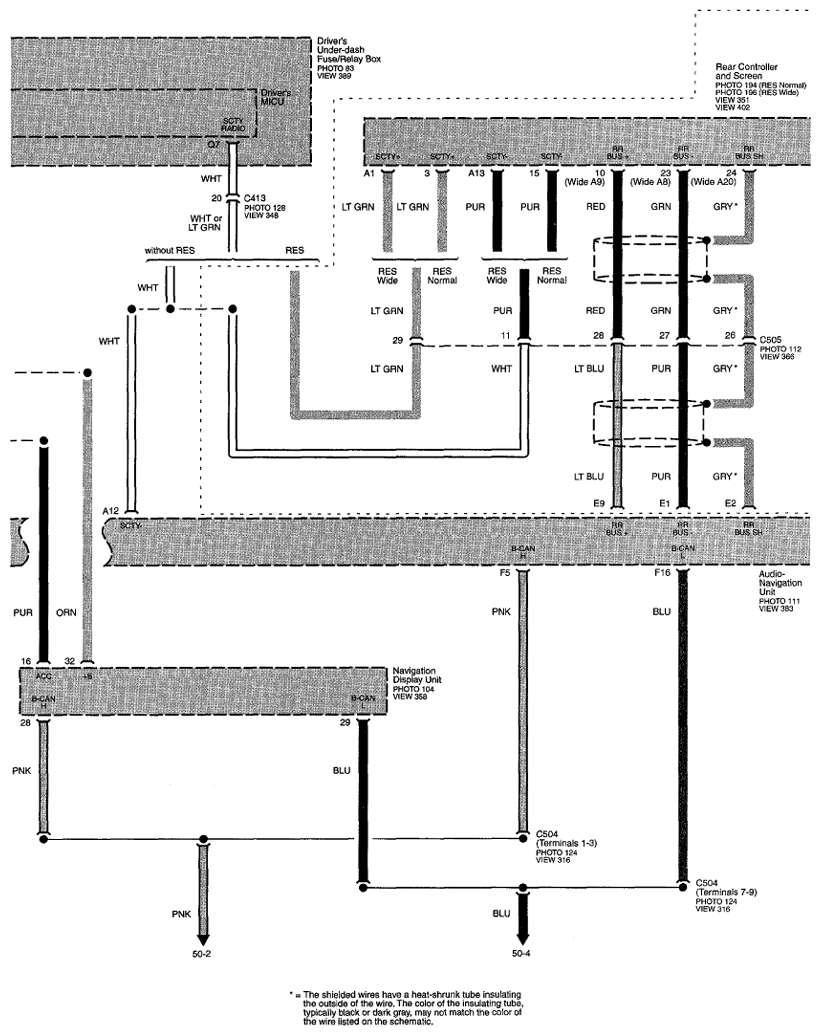

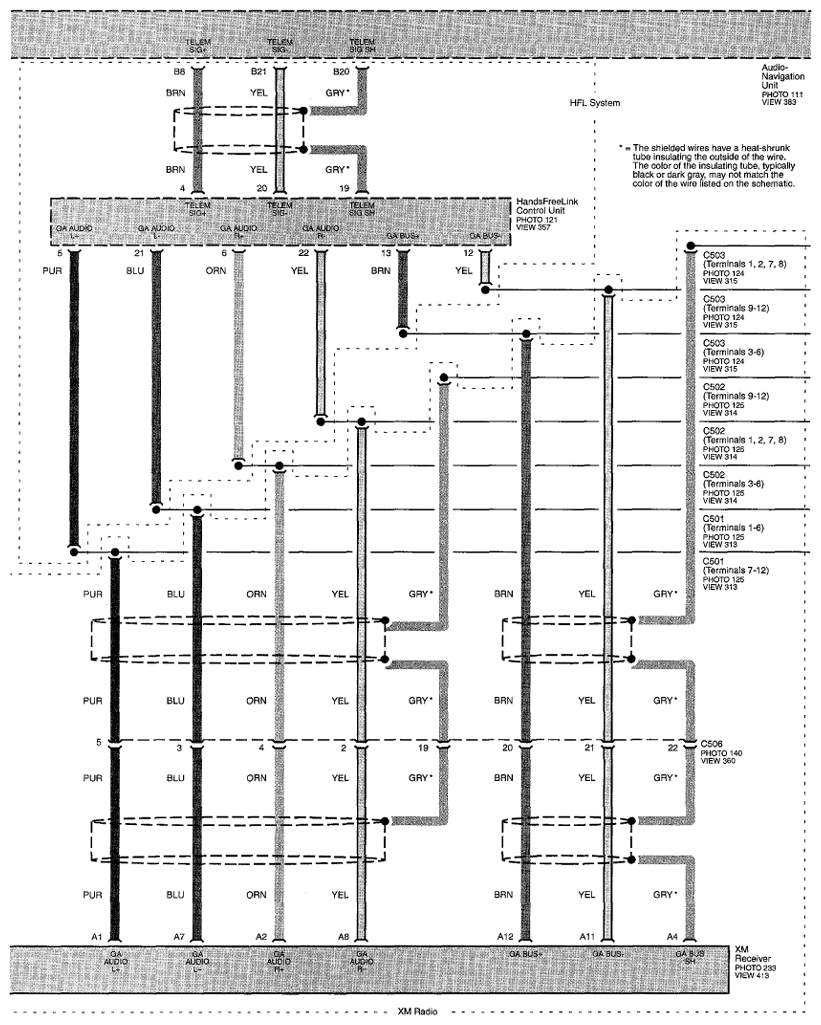

Fig 1: Navigation Circuit Diagram (Page 150-13)

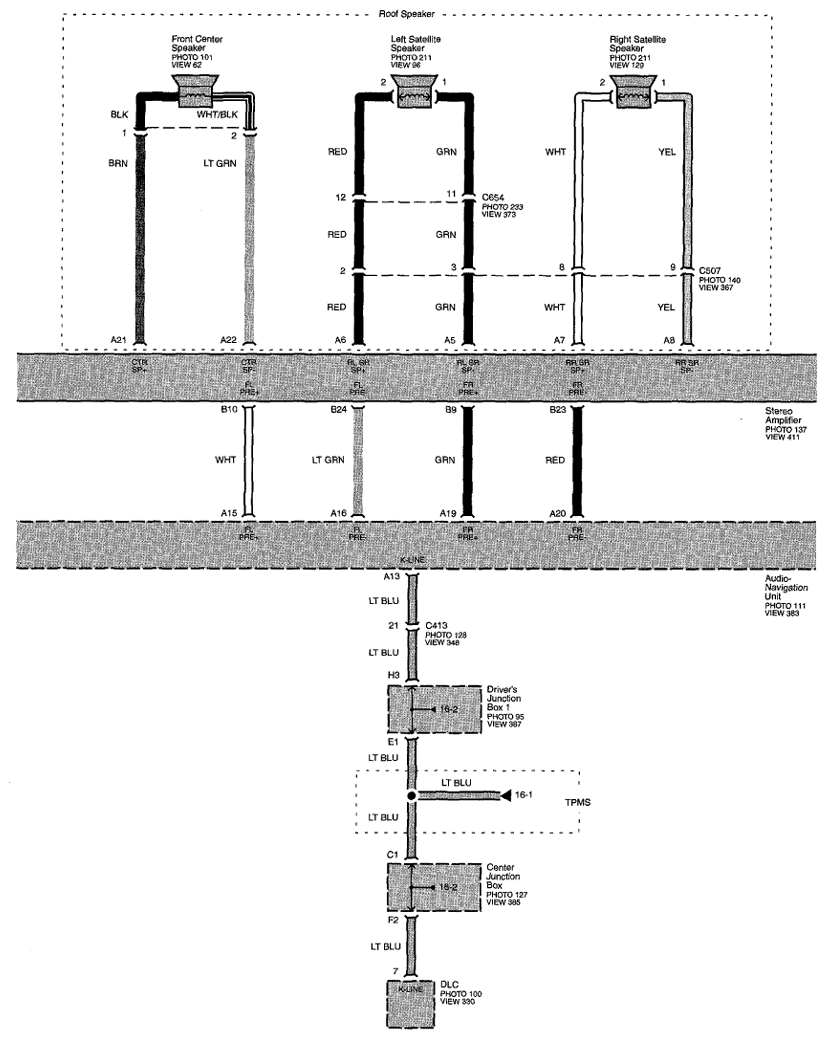

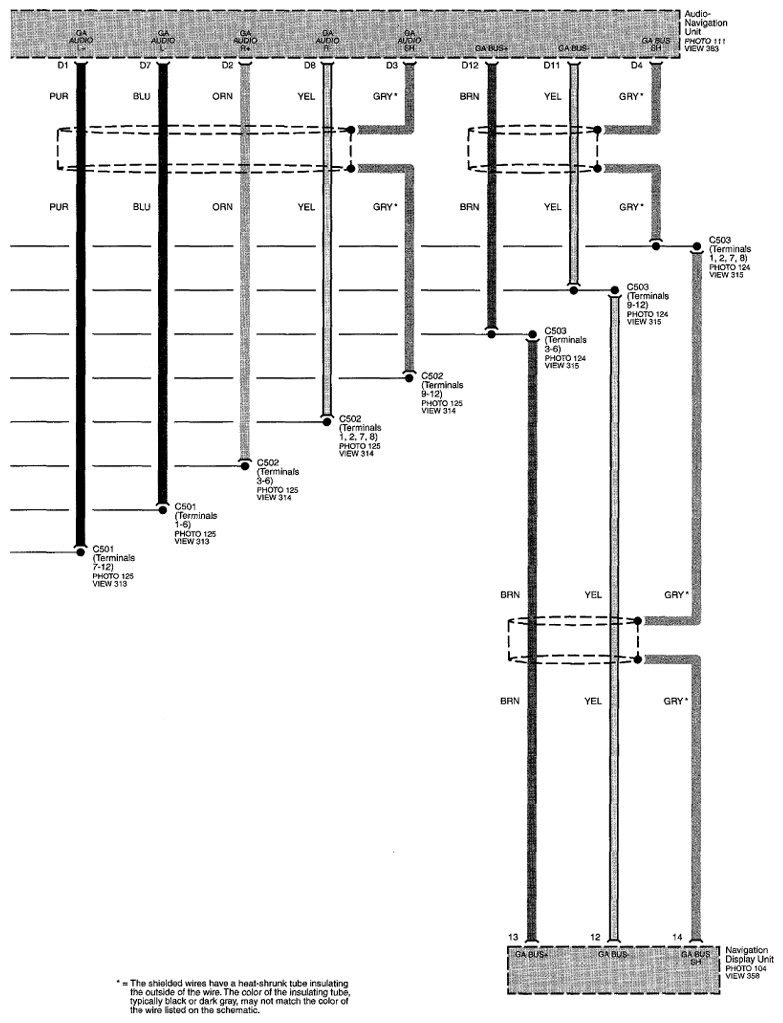

Fig 2: Navigation Circuit Diagram (Page 150-14)

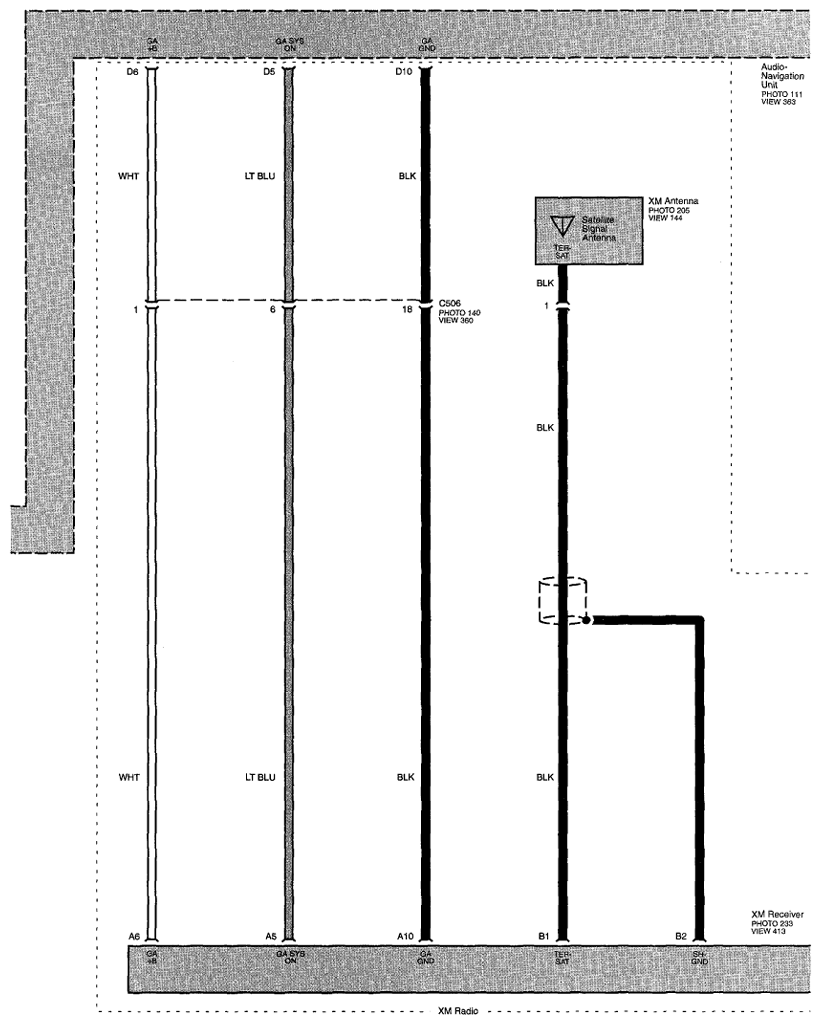

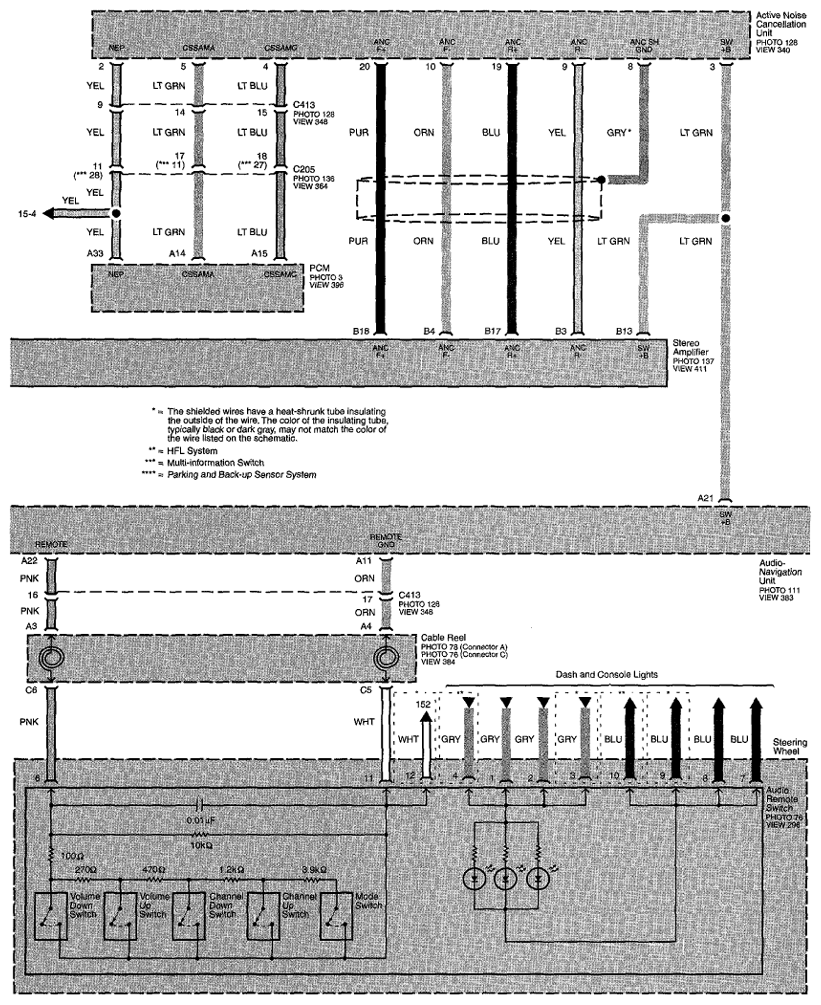

Fig 3: Navigation Circuit Diagram (Page 150-15)

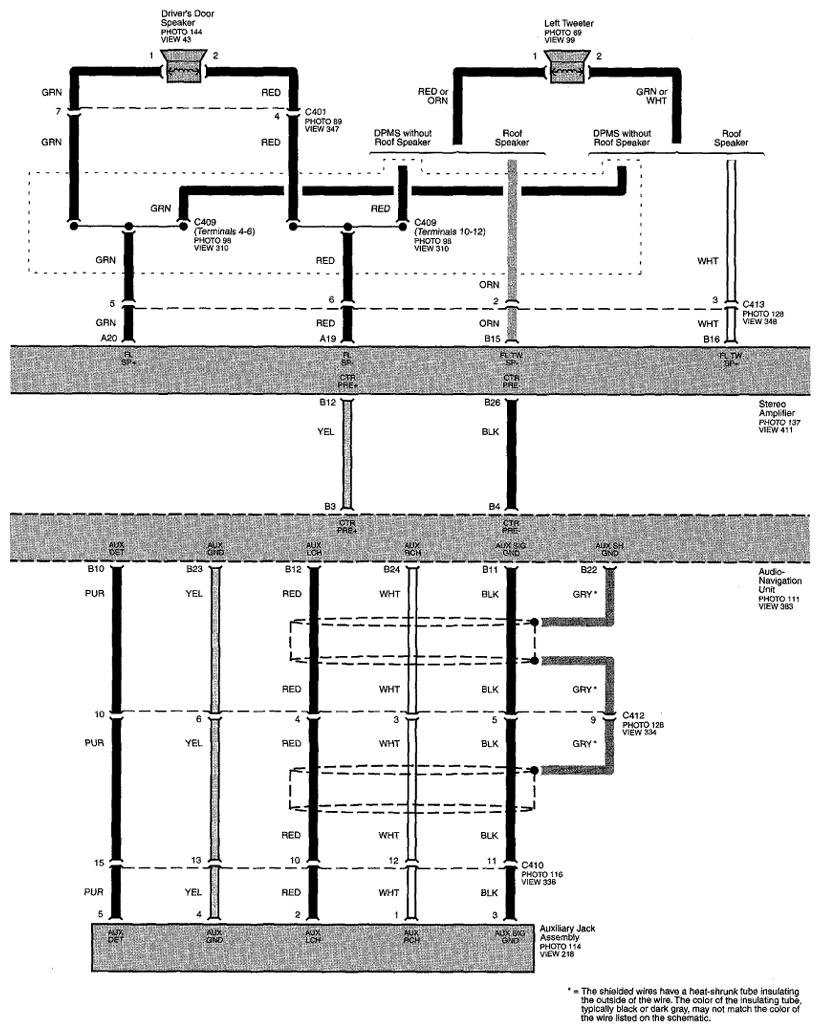

Fig 4: Navigation Circuit Diagram (Page 150-16)

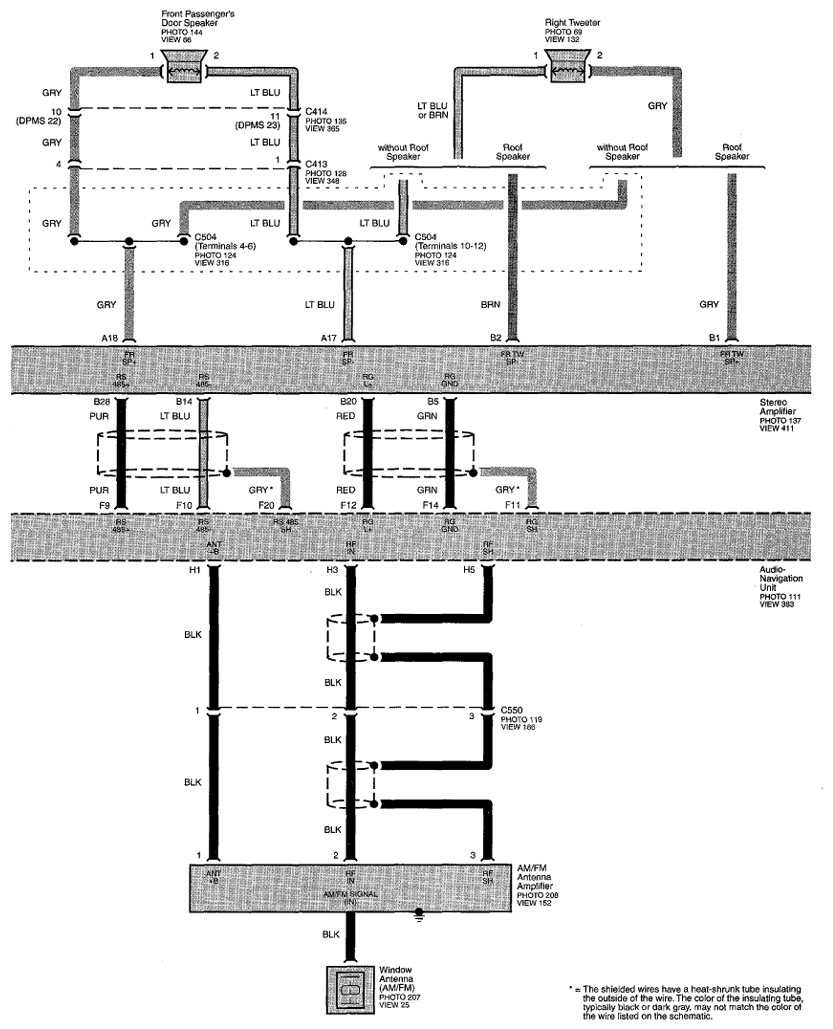

Fig 5: Navigation Circuit Diagram (Page 150-17)

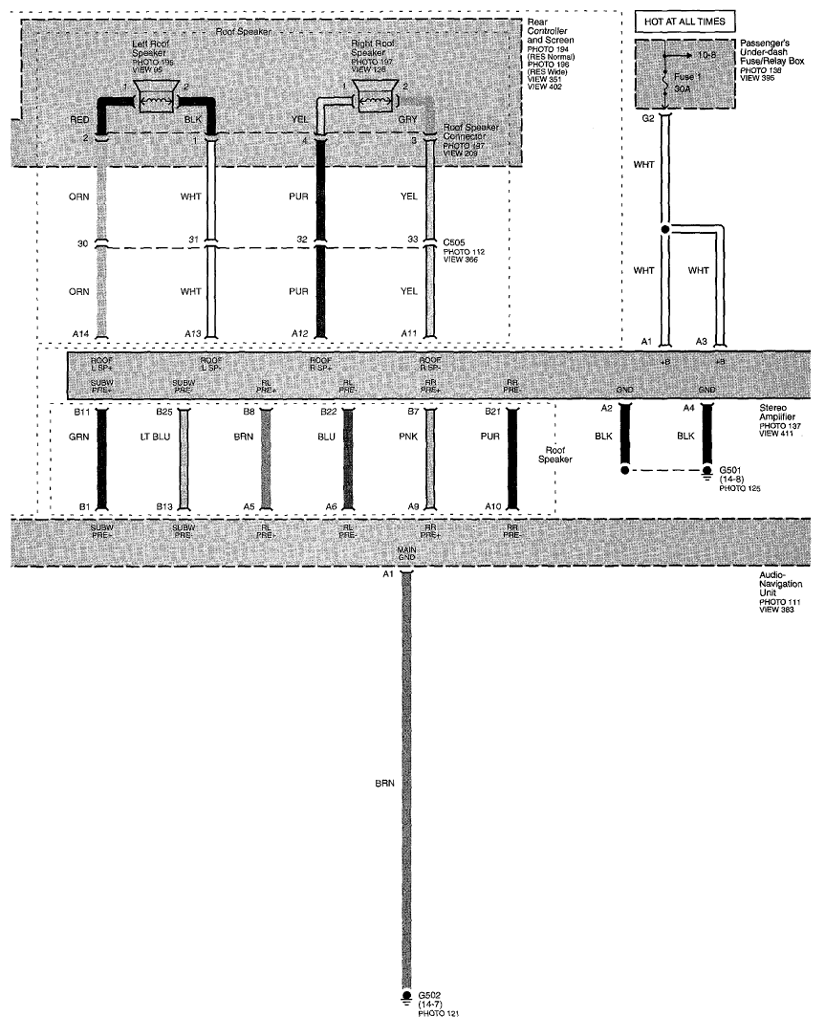

Fig 6: Navigation Circuit Diagram (Page 150-18)

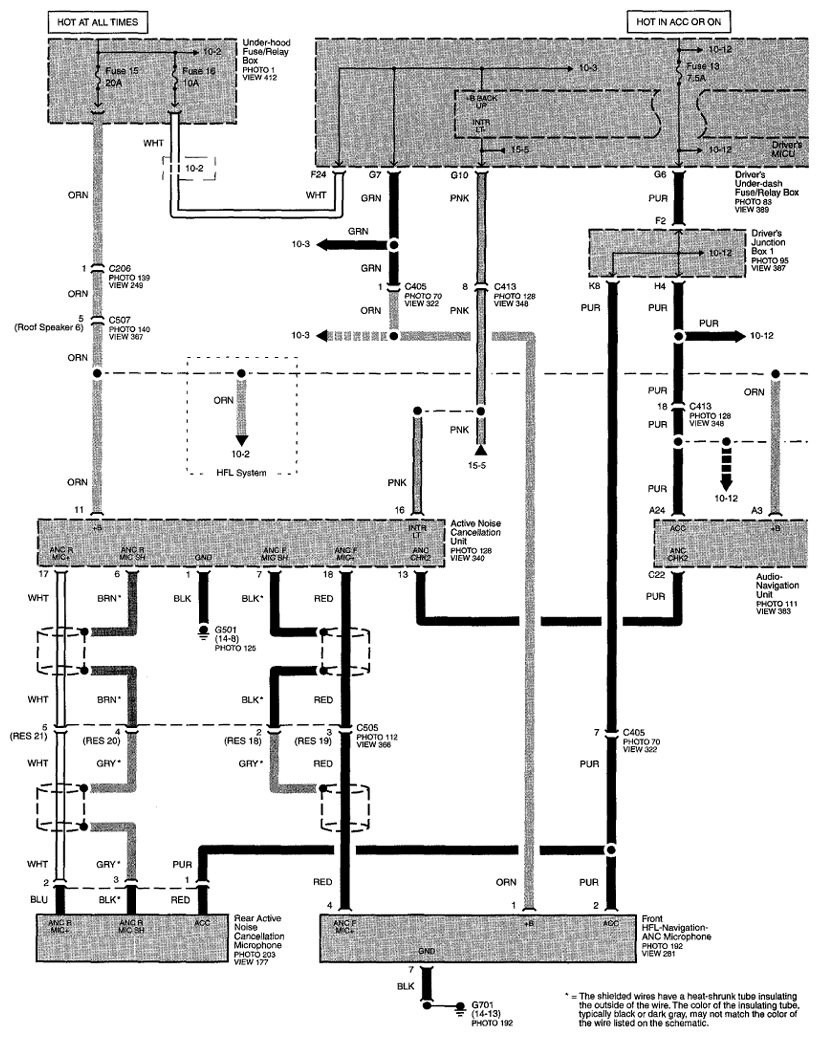

Fig 7: Navigation Circuit Diagram (Page 150-19)

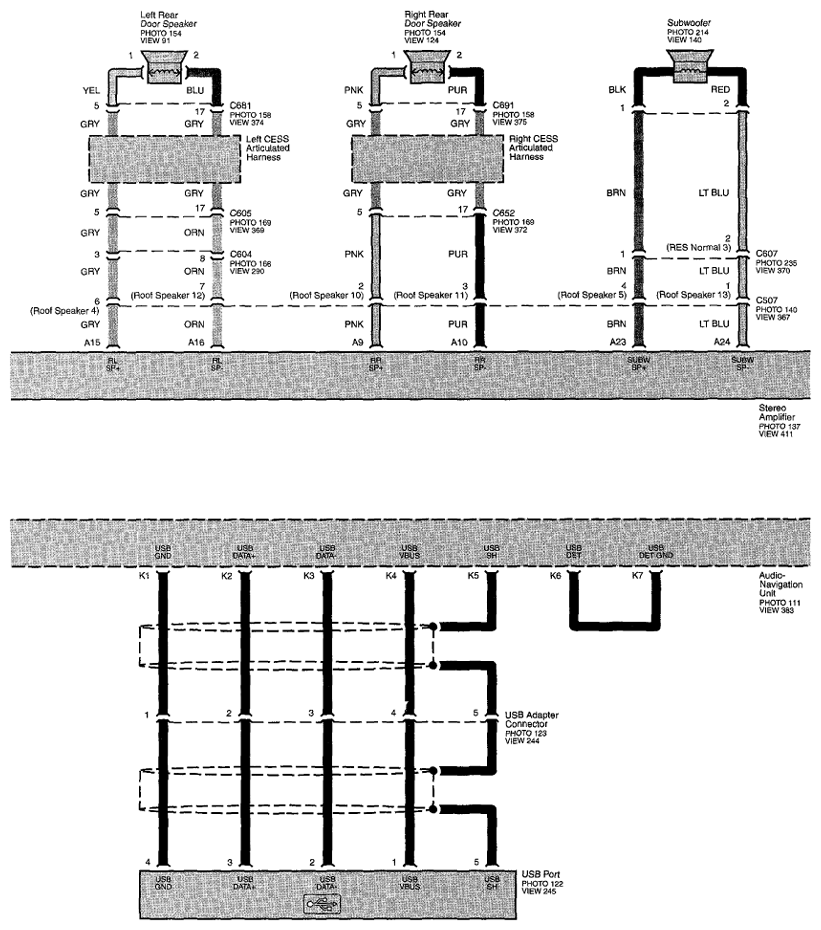

Fig 8: Navigation Circuit Diagram (Page 150-20)

Fig 9: Navigation Circuit Diagram (Page 150-21)

Fig 10: Navigation Circuit Diagram (Page 150-22)

Fig 11: Navigation Circuit Diagram (Page 150-23)
