AM/FM Antenna Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the AM/FM antenna mast (A).

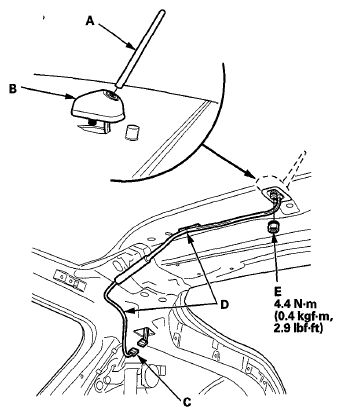

Fig 1: AM/FM Antenna Mast, AM/FM Antenna Base And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the AM/FM antenna base (B).
1. Remove the C-pillar trim (see C-PILLAR TRIM ), and disconnect the connector (C).
2. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ), and detach the clip (D).
3. Remove the nut (E) from the AM/FM antenna base, and remove it.
Install the antenna in the reverse order of removal.
