System Diagnostic Mode: Version

This screen displays the current version information for the navigation system. DBOOT (NOR-FLROM) and System u-Com are all for factory use.

• Navi Application (DRAM): Displays the version of the navigation software.
• DBOOT and System uCom are all for factory use.
• Map Data: Displays the version of the map data.
• Download: Do not touch, unless instructed by the factory.

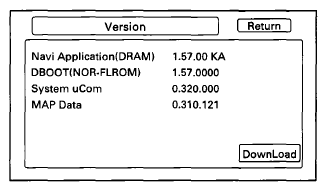

  Fig 1: Navigation Display - Version

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
