FM distributor

An FM distributor distributes the FM band signals received through an AM/FM antenna to the audio section and the navigation section in the audio-navigation unit.

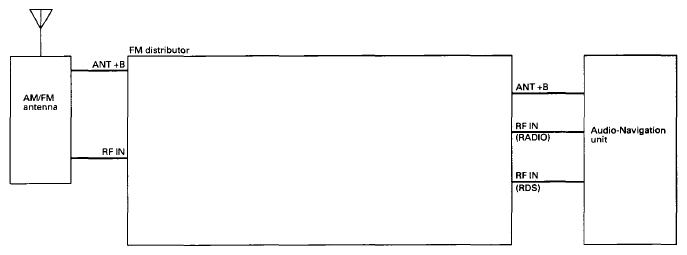

Fig 1: FM Distributor Diagram
G08095072Courtesy of AMERICAN HONDA MOTOR CO., INC.
