Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO value and the maintenance minder information from the gauge control module with the HDS (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE  ).
  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the four screws from the gauge control module (A).

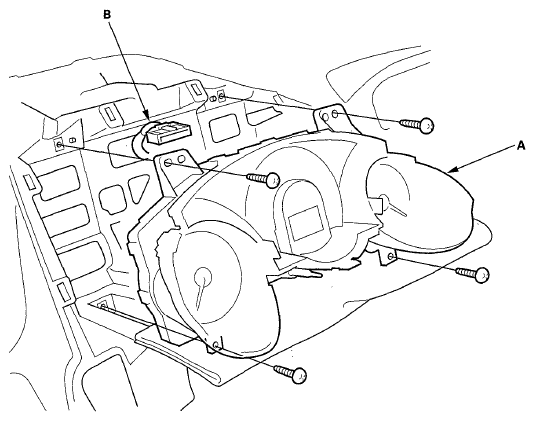

    Fig 1: Identifying Gauge Control Module & Screws
    G05960141Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 32P connector (B) from the gauge control module.
  4. Install the gauge control module in the reverse order of removal.
  5. Write the ODO value and maintenance minder information to the new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE  ).
