AM/FM Antenna Replacement

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the AM/FM antenna element (A).

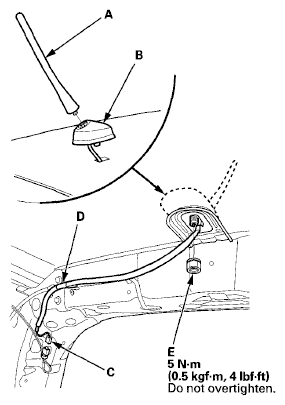

    Fig 1: AM/FM Antenna Element With Torque Specifications
    G06768870Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the AM/FM antenna base (B).
    1. Remove the quarter pillar trim (see QUARTER PILLAR TRIM ), and disconnect the connector (C).
    2. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ), and detach the clip (D).
    3. Remove the nut (E) from the AM/FM antenna base, and remove it.
  3. Install the antenna in the reverse order of removal.
