Mainshaft Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Refer to EXPLODED VIEW in the Mainshaft Reassembly, as needed, when removing components pressed onto the mainshaft (see MAINSHAFT REASSEMBLY ).

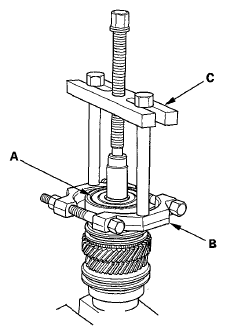

Remove the angular ball bearing (A) using the bearing separator set (B) and bearing puller (C).

Fig 1: Identifying Angular Ball Bearing, Bearing Separator Set & Bearing Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tapered cone ring, the distance collar, the synchro ring, and the 5th synchro sleeve.

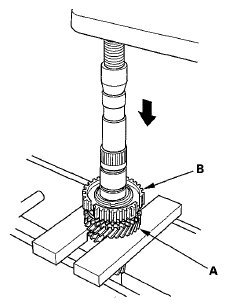

Support 5th gear (A) on steel blocks, and press the mainshaft out of the 5th synchro hub (B).
NOTE: Do not use a jaw-type puller; it can damage the gear teeth.

Fig 2: Identifying 5th Gear & 5th Synchro Hub
Courtesy of AMERICAN HONDA MOTOR CO., INC.

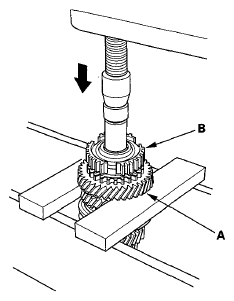

Support 3rd gear (A) on steel blocks, and press the mainshaft out of the 3rd/4th synchro hub (B).
NOTE: Do not use a jaw-type puller; it can damage the gear teeth.

Fig 3: Identifying 3rd Gear & 3rd/4th Synchro Hub
