Countershaft Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Refer to EXPLODED VIEW in the countershaft reassembly, as needed, when removing components pressed onto the countershaft (see COUNTERSHAFT REASSEMBLY ).

Securely clamp the countershaft assembly in a bench vise with wood blocks.
Use a chisel (A) to raise the locknut tab (B) from the groove in the countershaft.

Fig 1: Raising Locknut Tab From Groove In Countershaft With Chisel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

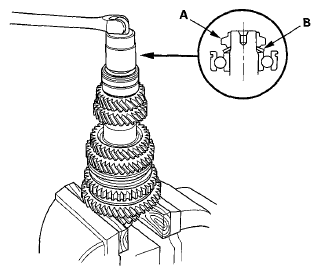

Remove the locknut (left-hand threads) (A) and the spring washer (B). 4

Fig 2: Identifying Locknut (Left-Hand Threads) & Spring Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Support 5th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the bearings (F).

Fig 3: Pressing Countershaft Out Of Bearings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

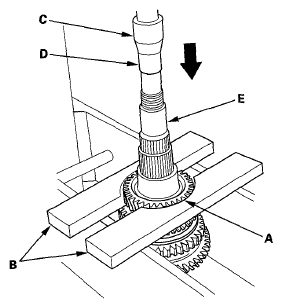

Support 4th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of 4th gear.

Fig 4: Pressing Countershaft Out Of 4th Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

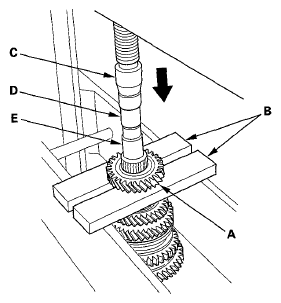

Support 3rd gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of 3rd gear.

Fig 5: Pressing Countershaft Out Of 3rd Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
