Hood Latch Replacement

WARNING: This page is about a different car, the 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or related parts.

Remove the front grille cover (see FRONT GRILLE COVER REPLACEMENT ).
Remove the clips, and release the hooks (A) from the body, then remove the hood latch cover (B).

Fig 1: Identifying Body Hooks & Hood Latch Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
For some models: Remove the clip (A), then disconnect and detach the hood latch switch connector (B).

Fig 2: Identifying Hood Latch Switch Connector & Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the hood latch (A) from the body.

Fig 3: Identifying Hood Latch With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hood opener cable (B) from the hood latch. Take care not to kink the cable.
Install the latch in the reverse order of removal, and note these items:

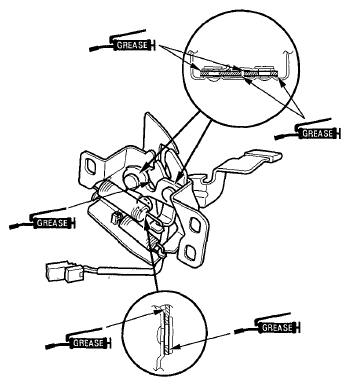

- Apply multipurpose grease to each location of the hood latch indicated by the arrows.
- Make sure the hood opener cable is connected properly and hood latch switch connector is plugged in properly (for some models).
- Adjust the hood latch alignment (see step 3 on HOOD ADJUSTMENT ).
- Make sure the hood opens properly and locks securely.
