Danger/Warning/Caution Label Locations

WARNING: This page is about a different car, the 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Interior Area:

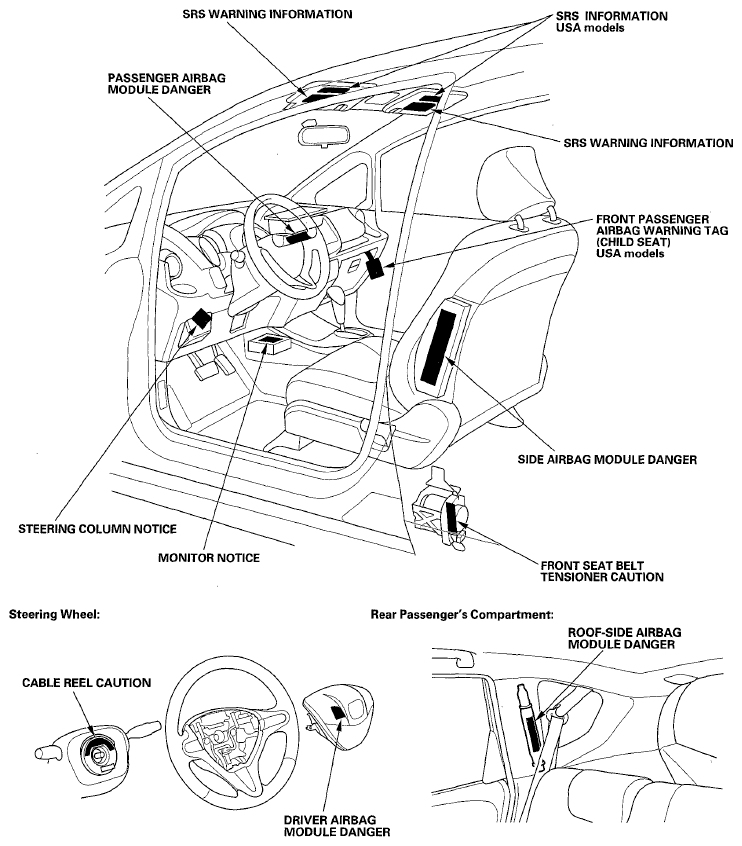

Fig 1: Identifying Steering Wheel & Passenger's Compartment Caution Label Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Under Hood Area:

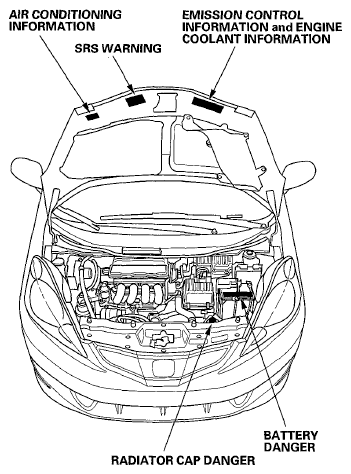

Fig 2: Identifying Under Hood Area Caution Label Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Door Jamb Area:

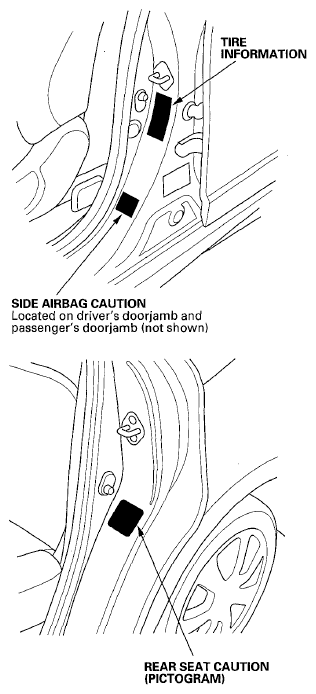

Fig 3: Identifying Door Jamb Area Caution Label Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.
