Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel And Emissions Systems
>>
System Description
>>
Fuel and Emissions Systems Diagram
>>
System Diagram
System Diagram

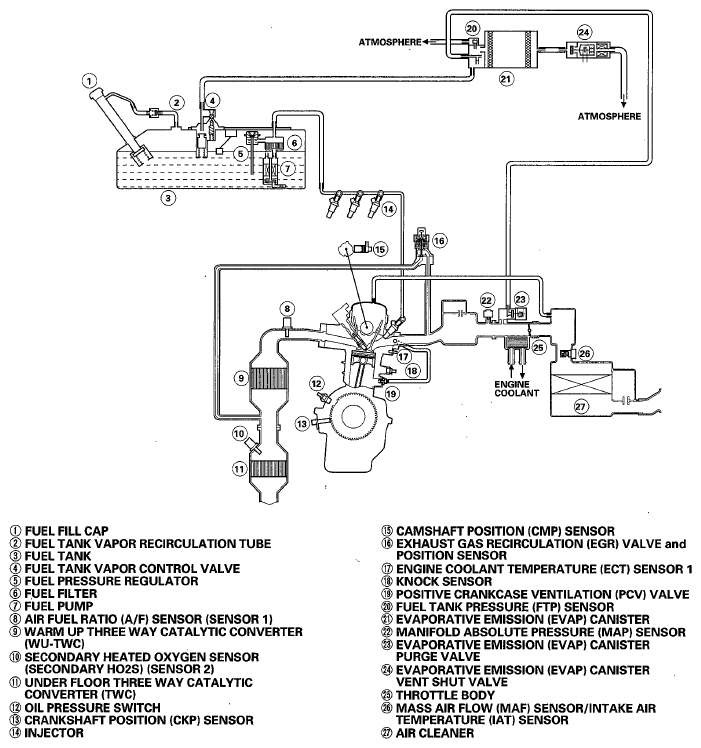

Fig 1: Identifying Fuel & Emissions Systems Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
