Positive Crankcase Ventilation (PCV) System

The PCV valve prevents blow-by gasses from escaping into the atmosphere by venting them into the intake manifold.

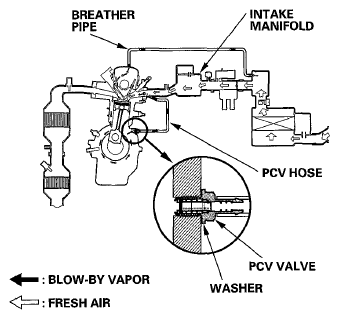

Fig 1: Identifying Positive Crankcase Ventilation System Diagram
G05952827Courtesy of AMERICAN HONDA MOTOR CO., INC.
