Component Location Index

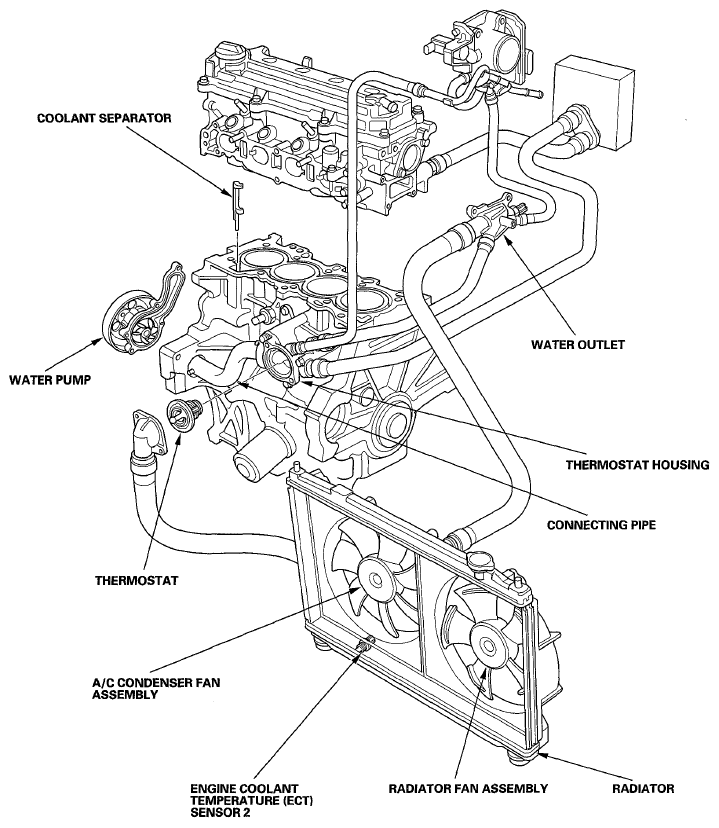

Fig 1: Identifying Cooling System Replacement Components

G05952708

Courtesy of AMERICAN HONDA MOTOR CO., INC.
