Dynamic Damper Replacement

  1. Remove the inboard joint (see INBOARD JOINT SIDE  ).
  2. Remove the dynamic damper band (see step  1 on ).
  3. Remove the dynamic damper (A).

    Dynamic damper type 1

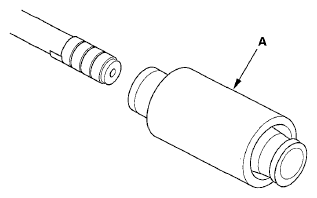

    Fig 1: Identifying Dynamic Damper Type 1
    G05958845Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Dynamic damper type 2

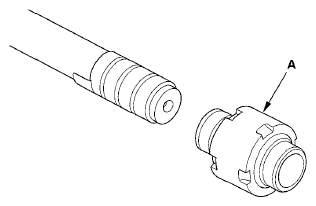

    Fig 2: Identifying Dynamic Damper Type 2
    G05958846Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the new dynamic damper.
    NOTE: Be careful not to swap the dynamic dampers. Check the type of dynamic damper by its shape.
    DRIVESHAFT SPECIFICATION TABLE

    Model Left/Right Driveshaft Dynamic Damper (A) Type
    M/T Left -
    Right 1
    A/T Left 2
    Right 2
  5. Adjust the specified distance (A) between the outboard joint side and the dynamic damper edge.
    NOTE: Check the type of dynamic damper by its shape.

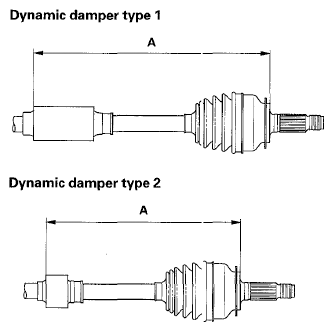

    Fig 3: Identifying Dynamic Damper Type Distance
    G05958847Courtesy of AMERICAN HONDA MOTOR CO., INC.
    DRIVESHAFT SPECIFICATION TABLE

    Model Left/Right Driveshaft Dynamic Damper Type Specified Distance (A)
    M/T Left - -
    Right 1 287-292 mm (11.30-11.50 in.)
    A/T Left 2 250.5-255.5 mm (9.86-10.06 in.)
    Right 2
  6. Install the dynamic damper band (see step  10 on ).
  7. Install the inboard joint (see INBOARD JOINT SIDE  ).
