Rear Seat Cushion Leg Replacement

NOTE:
  • Take care not to tear the seams or damage the seat covers.
  • Put on gloves to protect your hands.
  • Take care not to kink the cable.
  • The left rear seat cushion is shown, the right rear seat cushion is similar.
  1. Remove the rear seat assembly (see REAR SEAT REMOVAL/INSTALLATION  ).
  2. Remove the rear seat cushion (see REAR SEAT DISASSEMBLY/REASSEMBLY  ).
  3. Remove the rear seat cushion cover/pad and the silencer (see REAR SEAT CUSHION COVER/PAD REPLACEMENT  ).
  4. Remove the leg (A) from the seat cushion frame (B):
    1. Disconnect the control cable.
    2. Release the push nuts (C), then remove the set pins(D).
    3. Remove the leg.
    4. If necessary, remove the bushings (E), the cable hook (F), and the spring pins (G).

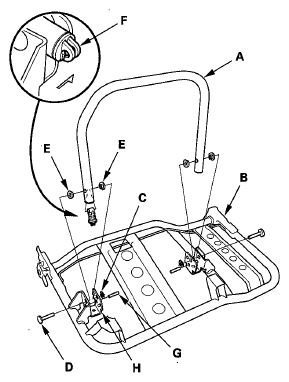

    Fig 1: Identifying Seat Cushion Frame Leg, Push Nuts, Set Pins, Bushings, Cable Hook & Spring Pins
    G05959665Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the leg in the reverse order of removal, and note these items:
    • Replace the push nuts and spring pins you removed with new ones.
    • Make sure the control cable is connected securely.
    • Apply multipurpose grease to the inside surfaces of the brackets (H).
