Special Tools Required

KTC trim tool set SOJATP20U*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

NOTE:

Put on gloves to protect your hands.
Take care not to tear or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
The driver's seat is shown; the passenger's seat is similar.

Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove these items:
- See OUTER RECLINE COVER
- See INNER RECLINE COVER

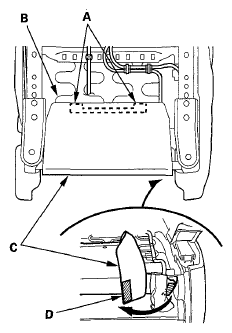

From under the seat cushion, release the hooks (A) from the seat cushion frame spring (B). Pull the cushion cover (C) back, and release the Velcro fastener (D).

Fig 1: Identifying Velcro Fastener
Courtesy of AMERICAN HONDA MOTOR CO., INC.

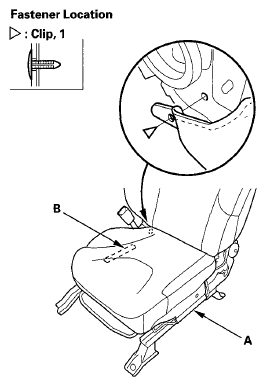

Remove the clip, then release the hook strips (A, B) from the seat cushion frame.

Fig 2: Identifying Seat Cushion Frame Hook Strips (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

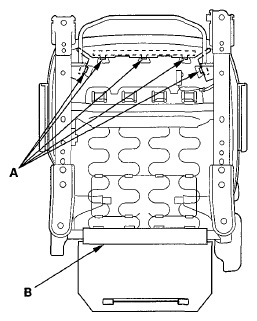

From under seat cushion, release the hook strips (A, B) from the seat cushion frame.

Fig 3: Identifying Seat Cushion Frame Hook Strips (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the seat cushion cover/pad (A) from the seat frame (B).

Fig 4: Identifying Seat Cushion Cover/Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- To prevent wrinkles when installing a seat cushion cover, make sure the material is stretched evenly over the pad before securing the hook strips.
- If the clip is damaged or stress-whitened, replace it with a new one.
