Special Tools Required

KTC trim tool set SOJATP20H*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

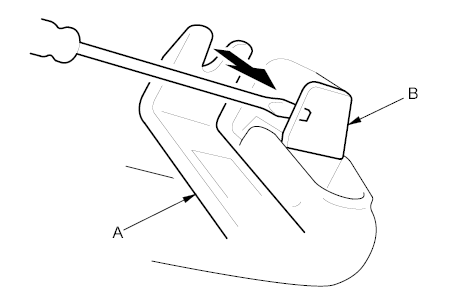

1. Lower the grab handle (A), then pull out the caps (B) by prying up at the notches (C) with a small flat-tip screwdriver.
   Fig 1: Identifying Caps

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

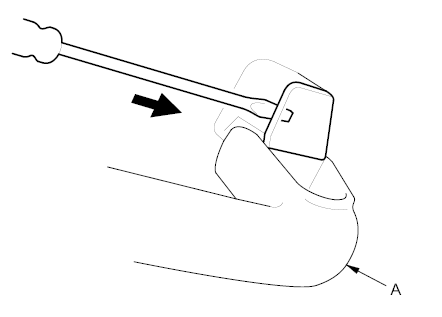

2. Use a KTC trim tool (A) to pull on the small flat-tip screwdriver, and remove the cap (B).
   Fig 2: Identifying Caps

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

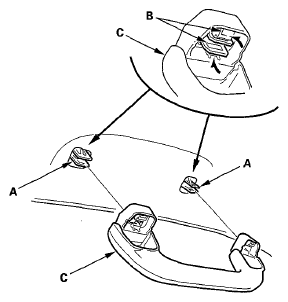

3. Pinch the clips (A) to release the hooks (B), then remove the grab handle (C).
   Fig 3: Identifying Clips, Hooks & Grab Handle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

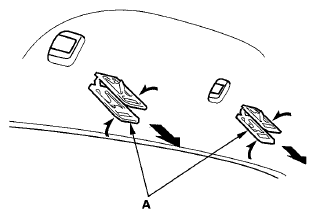

4. Remove the clips (A) by pinching the hooks with a pair of pliers.
   Fig 4: Identifying Hooks On Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the side curtain airbag has deployed, replace the grab handle with a new one (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).

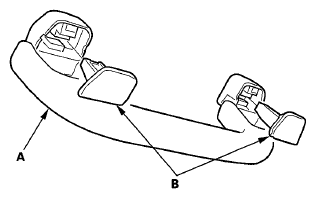

6. If the side curtain airbag has not deployed, inspect the grab handle for damage. A damaged grab handle may cause the side curtain airbags to deploy improperly, possibly causing injury. Replace the grab handle if it has any of these problems:
   • Any cracks or damage in the grab handle (A).
   • Any cracks or stress-whitening in the caps (B).
     Fig 5: Identifying Grab Handle & Caps

     Courtesy of AMERICAN HONDA MOTOR CO., INC.

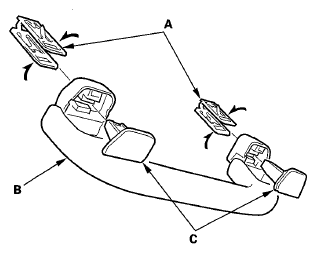

7. Install the clips (A) on the grab handle (B), then install the caps (C) fully into the clips.
   Fig 6: Identifying Clips On Grab Handle

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

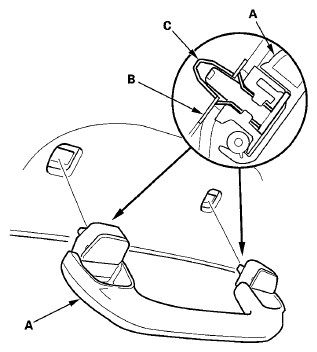

8. Position the grab handle (A) on the bracket (B), and push on the grab handle until the clips (C) snap into place securely.
   Fig 7: Identifying Grab Handle, Bracket & Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
