Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the dashboard or its related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
The left side defogger vent trim is shown; the right side defogger vent trim is not removable.

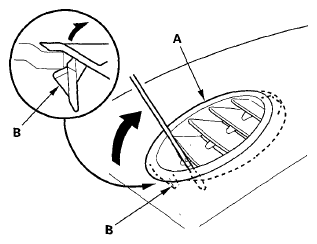

Insert the appropriate trim tool into the gap underneath the lowest fin on the side defogger vent trim (A), and pull the vent trim up to release the hook (B).

Fig 1: Pulling Vent Trim Up To Releasing Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the portion of the vent trim opposite the hook first, then push down on the trim until the hook securely engages the dashboard.
