Passenger's Tray Lid Removal/Installation

NOTE: Take care not to scratch the dashboard or its related parts.
  1. Open the lid.
  2. Remove the screws, then remove the passenger's upper tray lid (A).

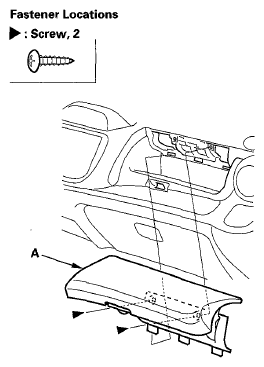

    Fig 1: Identifying Passenger's Upper Tray Lid
    G05959553Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the lid in the reverse order of removal.
