Glove Box Striker Replacement

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES before doing repairs or service.

1. While holding the glove box (A), release the glove box stops (B) on each side from the dashboard by pushing them inward, then lower the glove box.
   Fig 1: Releasing Glove Box Stops On Dashboard Side

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

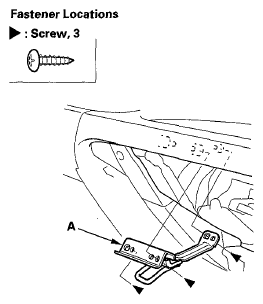

2. Remove the screws, then remove the glove box striker (A).
   Fig 2: Identifying Glove Box Striker

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the glove box striker in the reverse order of removal.
