Fit Base, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Multiplex Integrated Control System
>>
Circuit Diagram
Circuit Diagram

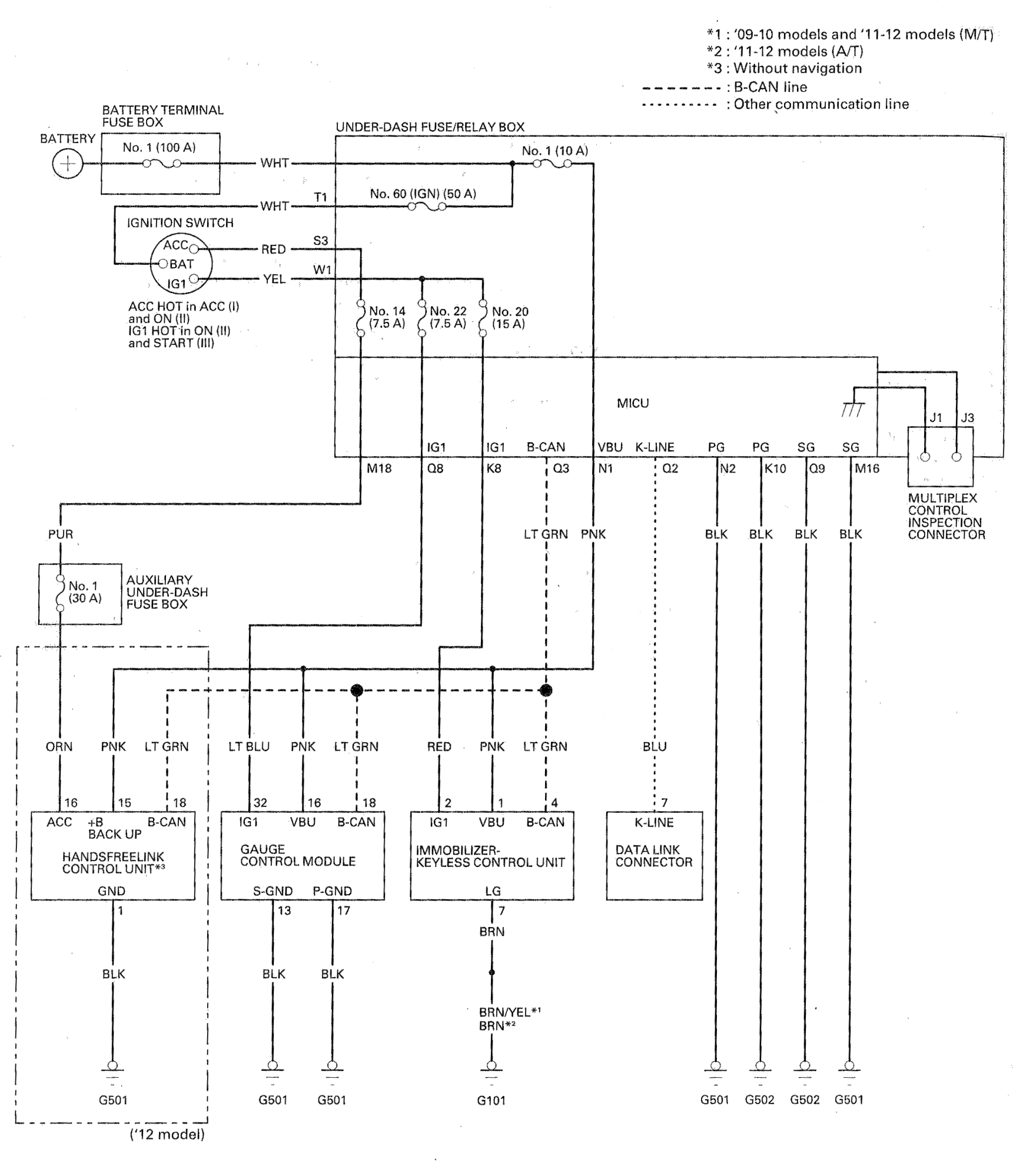

Fig 1: Identifying Multiplex Integrated Control System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
