Circuit Diagram - Power Seat

WARNING: This page is about a different variant/trim than selected.

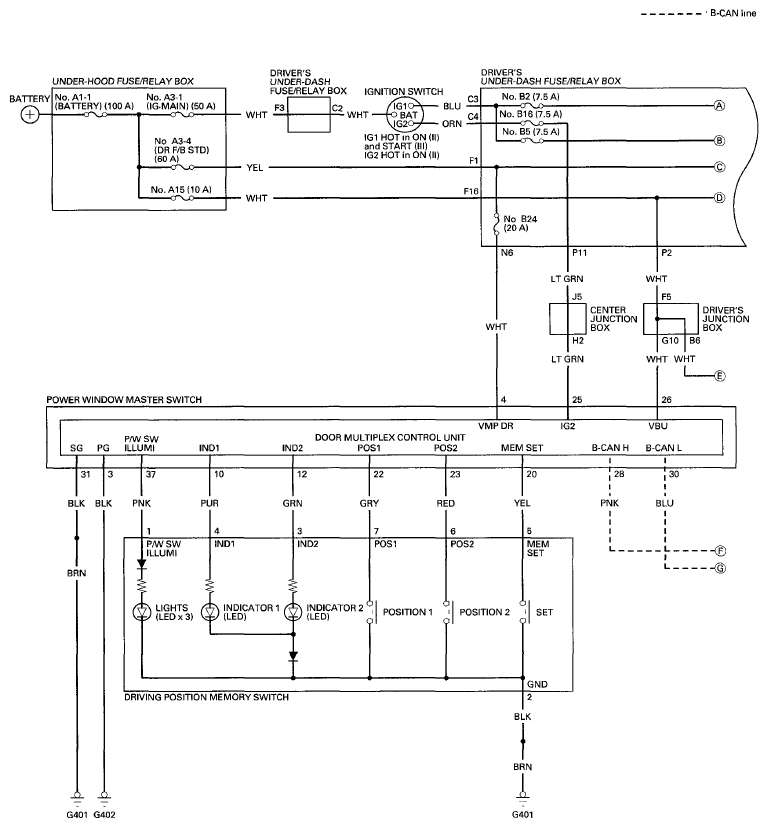

Fig 1: DPMS (Power Seat) - Circuit Diagram (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

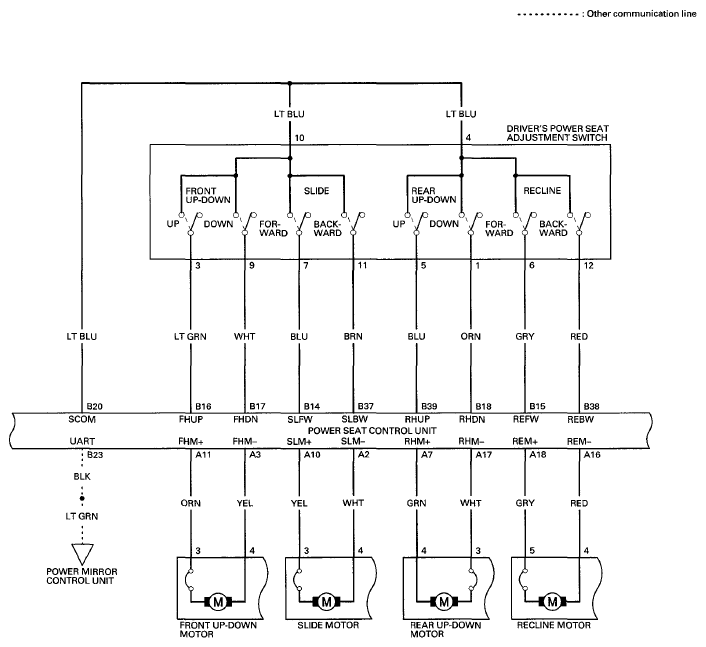

Fig 2: DPMS (Power Seat) - Circuit Diagram (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: DPMS (Power Seat) - Circuit Diagram (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: DPMS (Power Seat) - Circuit Diagram (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
