Climate Control Unit Removal/Installation
- Remove the instrument panel (see
INSTRUMENT PANEL REMOVAL/INSTALLATION
).

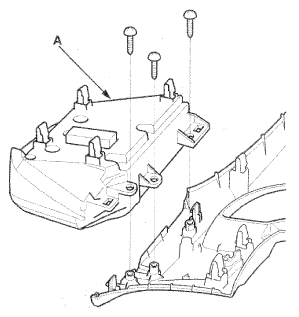

- Remove the self-tapping screws and the climate control unit (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the climate control unit in the reverse order of removal. After installation, operate the climate control unit in various functions to confirm that it works properly.
- Run the self-diagnostic function to confirm that there are no problems in the system (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS
).
