CVT Fluid Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE: Keep all foreign particles out of the transmission.

Start the engine, and warm it up to normal operating temperature (the radiator fan comes on twice).
Park the vehicle on level ground, and turn the engine off.
Raise the vehicle on a lift, and make sure it is securely supported.
Remove the lid (A) for maintenance.

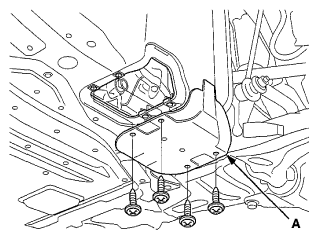

Fig 1: Locating Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the drain plug (A), and drain the CVTF.
NOTE:
- Remove metal particles from the magnetic surface of the drain plug.
- If a cooler cleaning is necessary, refer to the CVTF cooler cleaning (see CVTF Cooler Cleaning ).

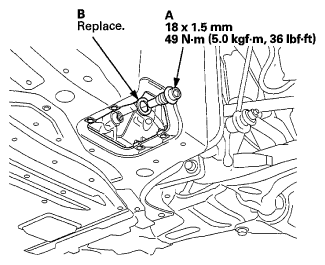

Fig 2: Locating Drain Plug And Sealing Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).
Install the lid (A) for maintenance.

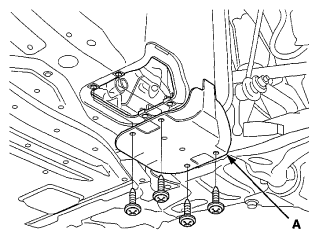

Fig 3: Locating Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the dipstick (yellow loop) (A), and wipe it with a clean cloth.

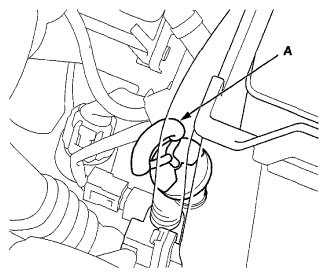

Fig 4: Locating Dipstick (Yellow Loop)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the transmission with the recommended fluid through the dipstick tube opening (A) to bring it to the upper mark on the dipstick. Always use Honda CVTF. Using a non-Honda CVTF can affect shift quality.
CVT Fluid Capacity:

2.8 L (3.0 US qt) at change

5.2 L (5.5 US qt) at overhaul

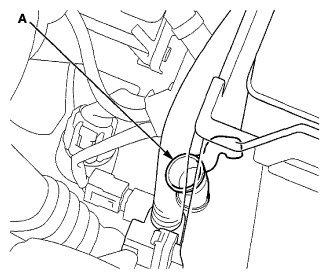

Fig 5: Locating Dipstick Tube Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the CVT fluid level (see CVT FLUID LEVEL CHECK )
Insert the dipstick (A).

Fig 6: Locating Dipstick
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the Maintenance Minder required replacing the CVTF, reset the Maintenance Minder (see MAINTENANCE MINDER™ ). Even if the Maintenance Minder did not require you to replace the CVTF, go to step 13.
Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

Fig 7: Locating Data Link Connector Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Go to the Individual Maintenance Items Reset (see RESETTING THE MAINTENANCE MINDER ), and do the MAINTENANCE SUB ITEM 3 RESET with the HDS.
