Manifold Absolute Pressure (MAP) Sensor

The MAP sensor converts manifold absolute pressures into electrical signals to the ECM/PCM.

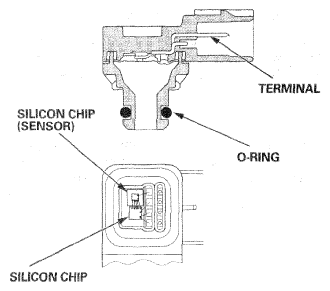

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Connector Terminal

Courtesy of AMERICAN HONDA MOTOR CO., INC.
