CR-Z Base, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel And Emissions Systems
>>
System Description
>>
Fuel and Emissions System Diagram
>>
System Diagram
System Diagram

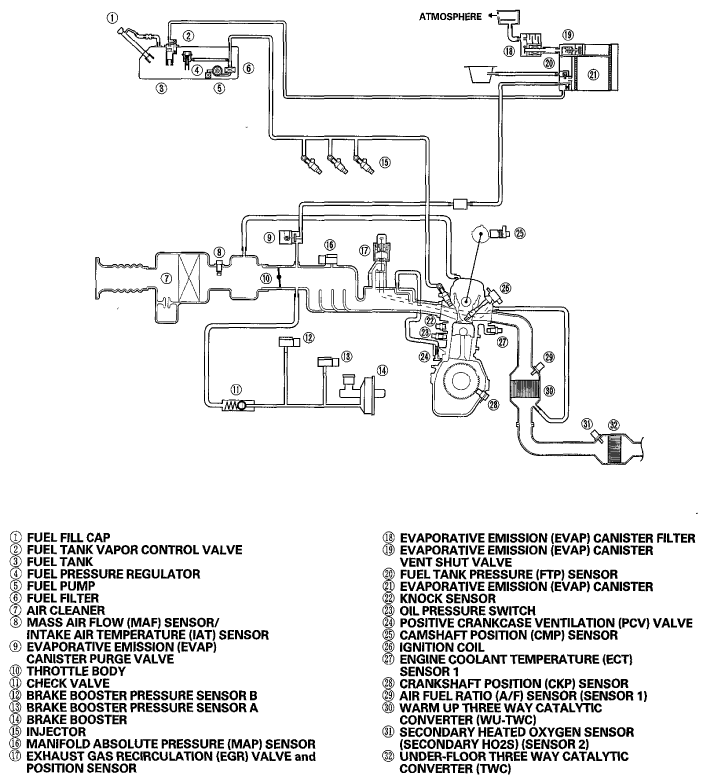

Fig 1: Fuel And Emissions System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
