EGR Valve

The EGR valve lowers peak combustion temperatures and reduces oxides of nitrogen emissions (NOx) by recirculating exhaust gas through the intake manifold and into the combustion chambers.

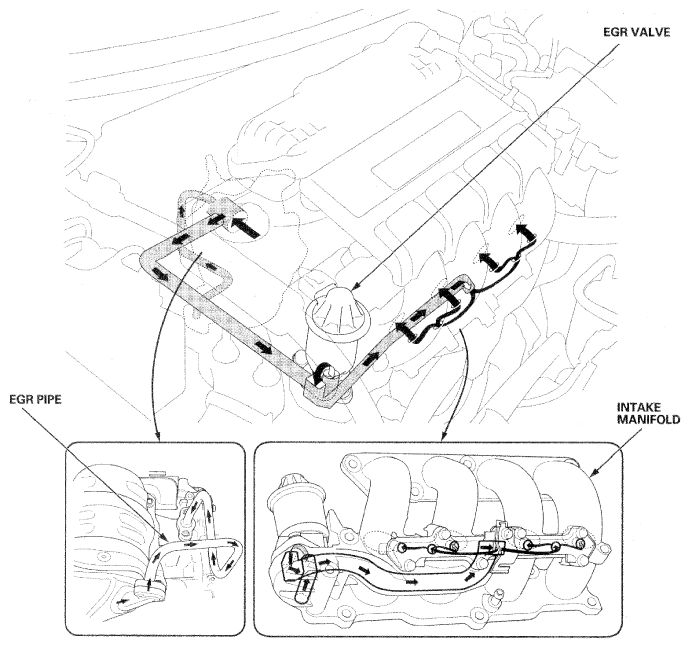

Fig 1: Exhaust Gas Recirculation (EGR) System Diagram
G06949769Courtesy of AMERICAN HONDA MOTOR CO., INC.
