Transmission Mount Bracket Replacement

  1. Do the 12 volt battery removal procedure (see 12 VOLT BATTERY REMOVAL AND INSTALLATION ).
  2. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  3. Disconnect the ECM/PCM connectors (A).

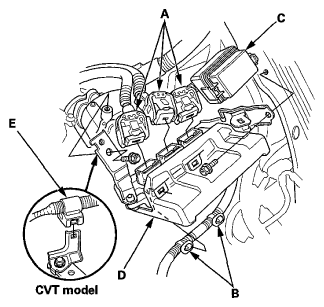

    Fig 1: Locating ECM/PCM Connectors, Harness Clamps, Auxiliary Under-Hood Relay Box A And ECM/PCM
    G06949344Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the harness clamps (B), auxiliary under-hood relay box A (C), and the ECM/PCM (D).
  5. CVT model: Remove the harness clamp (E).
  6. Support the transmission with a jack and a wood block under the transmission.
  7. Remove the ground cable (A) and the harness holder

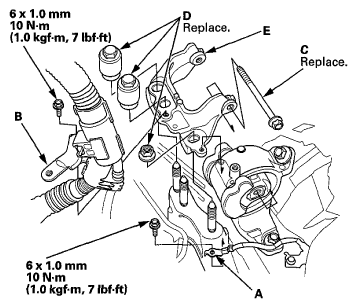

    Fig 2: Locating Ground Cable And Harness Holder (M/T Model) With Torque Specifications
    G06949345Courtesy of AMERICAN HONDA MOTOR CO., INC.

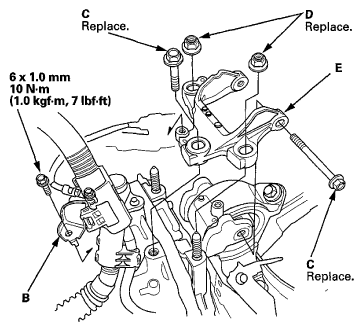

    Fig 3: Locating Ground Cable And Harness Holder (CVT Model) With Torque Specifications
    G06949346Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the transmission mount bolts (C) and nuts (D), then remove the transmission mount bracket (E).
  9. Install the transmission mount bracket, and loosely install the new transmission mount bracket mounting bolts and nuts.
  10. Install the harness holder and the ground cable.
  11. Remove the jack and wood block from under the transmission.
  12. Raise the vehicle on the lift.
  13. Loosen the torque rod mounting bolt and nut (A).

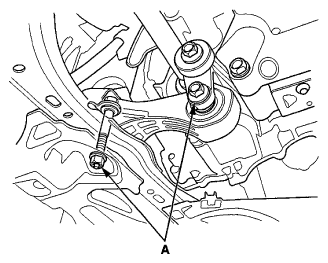

    Fig 4: Locating Torque Rod Mounting Bolt And Nut (M/T Model)
    G06949347Courtesy of AMERICAN HONDA MOTOR CO., INC.

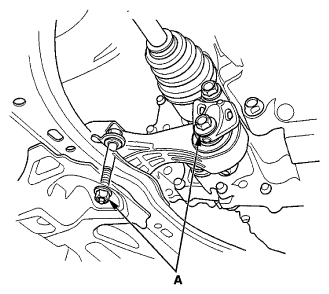

    Fig 5: Locating Torque Rod Mounting Bolt And Nut (CVT Model)
    G06949348Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Lower the vehicle on the lift.
  15. Tighten the transmission mount mounting bolts and nuts in the numbered sequence shown.

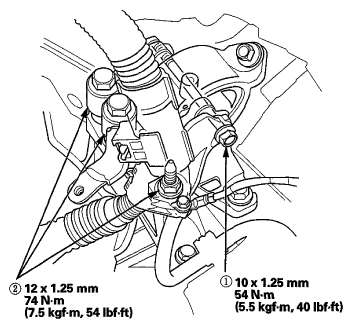

    Fig 6: Transmission Mount Mounting Bolts And Nuts Tightening Sequence (M/T Model) With Torque Specifications
    G06949349Courtesy of AMERICAN HONDA MOTOR CO., INC.

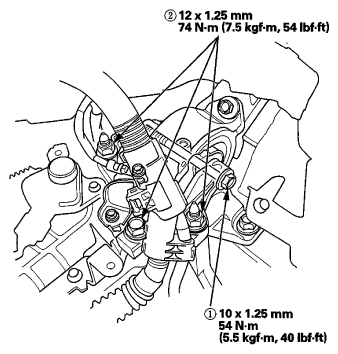

    Fig 7: Transmission Mount Mounting Bolts And Nuts Tightening Sequence (CVT Model) With Torque Specifications
    G06949350Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Raise the vehicle on the lift.
  17. Tighten the torque rod mounting bolt and nut in the numbered sequence shown.

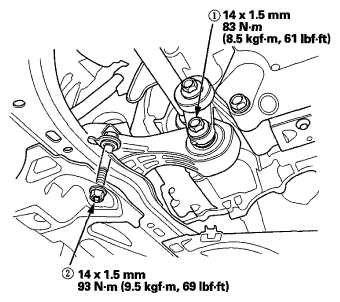

    Fig 8: Torque Rod Mounting Bolt And Nut Tightening Sequence (M/T Model) With Torque Specifications
    G06949351Courtesy of AMERICAN HONDA MOTOR CO., INC.

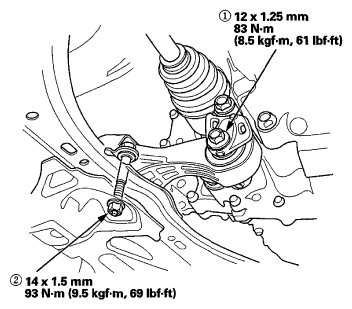

    Fig 9: Torque Rod Mounting Bolt And Nut Tightening Sequence (CVT Model) With Torque Specifications
    G06949352Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Lower the vehicle on the lift.
  19. Install the ECM/PCM with the ECM/PCM bracket. Then connect ECM/PCM connectors A, B, and C.
    NOTE: ECM/PCM connectors A, B, and C have symbols (A=□, B= , C=◦) embossed on them for identification.

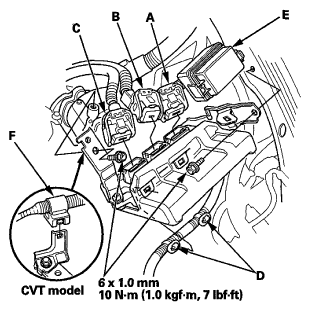

    Fig 10: Locating ECM/PCM Connectors A, B, And C With Torque Specifications
    G06949353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Install the harness clamps (D) and auxiliary under-hood relay box A (E).
  21. CVT model: Install the harness clamp (F).
  22. Do the 12 volt battery installation procedure (see 12 VOLT BATTERY REMOVAL AND INSTALLATION ).
  23. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  24. Do the ECM/PCM reset procedure (see IF THE MIL DID NOT STAY ON ).
